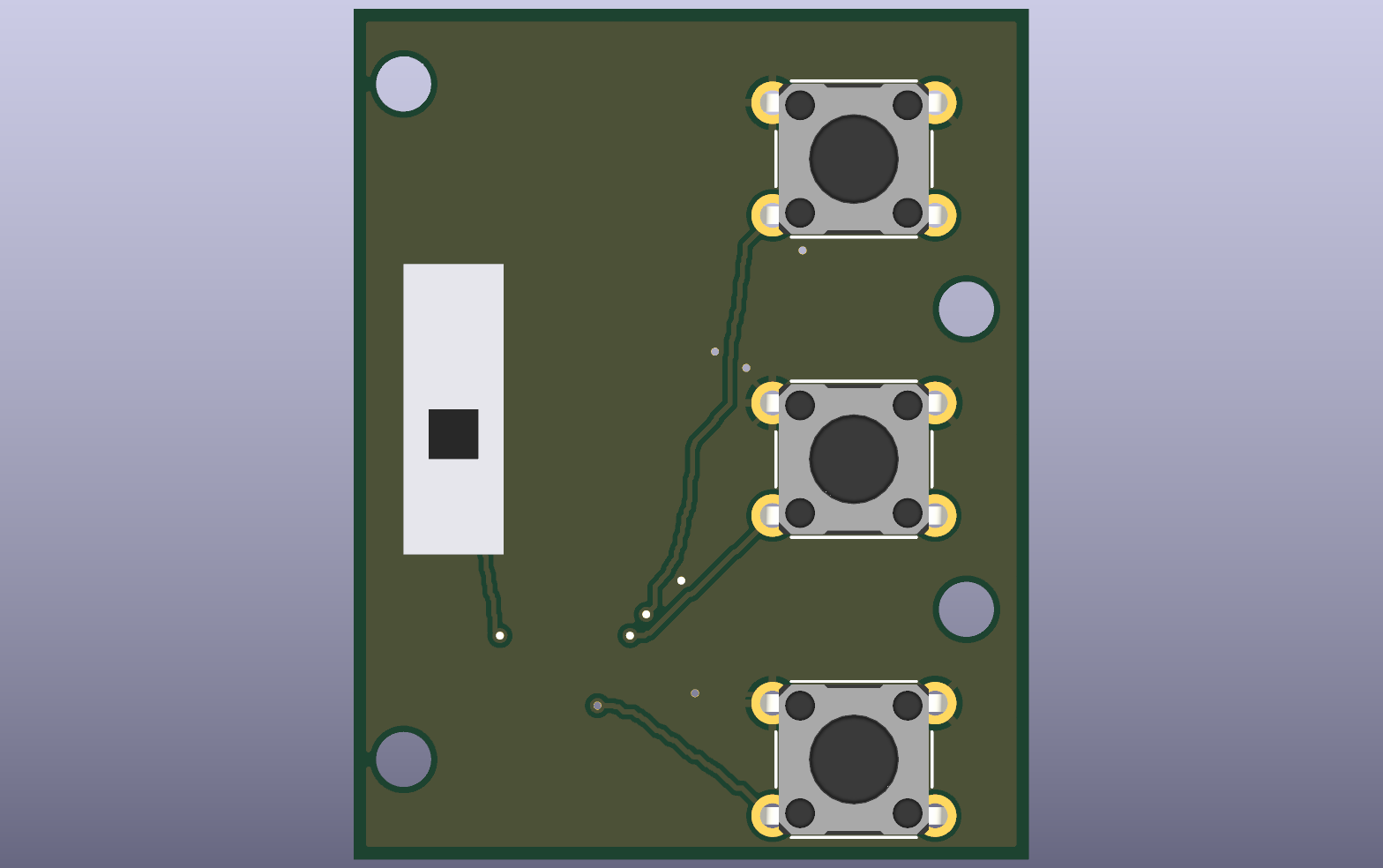

Alec controls PCB layout, top view — open source board by eshelton328
Simulate this board

About the Alec controls PCB

Alec controls is an open source PCB design by eshelton328, published on GitHub. It is a 2-layer board measuring 27 × 34 mm, with 5 components from 5 distinct parts.

By type, the board carries 4 switches and 1 connector.

From the project

Hardware design monorepo with software-grade CI/CD. KiCad PCB projects with automated ERC/DRC, multi-fab rule validation, schematic & BOM checks, and auto-generated board documentation.

27 × 34 mm bottom settings board with three Omron B3F-1060 switches and an E-Switch EG1218 enable switch. Two copper layers, 1.6 mm thickness. J1 faces inward on B.Cu. These are actual routed boards fitted to the v4.2 enclosure, with physical tolerance/assembly verification still pending.

Connector side · Schematic PDF · Native schematic · Native PCB · BOM

See the harness contract and test report. Pullups, debounce capacitors, 100 Ω button series resistors and RGB resistors live on the main board. Do not connect this board directly to an unprotected ESP32 input in place of the defined…

Alec controls, from the project README
From the project README

Alec controls bill of materials (BOM)

5 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BM07B-GHS-TBT
J1
1
B3F-1060
VOL-
SW1
1
B3F-1060
MODE
SW2
1
B3F-1060
VOL+
SW3
1
EG1218
SW4

Alec controls design files

The KiCad project lives in the eshelton328/the-forge repository on GitHub; these links point at the commit this page was built from.

Alec controls: common questions

How big is the Alec controls PCB?

The Alec controls measures 27 × 34 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Alec controls?

5 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Alec controls design files?

From the eshelton328/the-forge repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Alec controls design in my own project?

The repository has no license, so all rights stay with eshelton328. Use it as a reference, and ask the author before reusing the design.
