Alec front

eshelton328·the-forge·boards/alec-front/alec-front.kicad_pcb

Alec front PCB layout, top view — open source board by eshelton328
Simulate this board

About the Alec front PCB

Alec front is an open source PCB design by eshelton328, published on GitHub. It is a 2-layer board measuring 24 × 10 mm, with 3 components from 3 distinct parts.

By type, the board carries 1 connector, 1 switch and 1 diode.

From the project

Hardware design monorepo with software-grade CI/CD. KiCad PCB projects with automated ERC/DRC, multi-fab rule validation, schematic & BOM checks, and auto-generated board documentation.

24 × 10 mm front board with Omron B3U-1000P battery-check switch and Wuerth 150141M173100 common-anode RGB LED. Two copper layers, 1.6 mm thickness. J1 faces inward on B.Cu. These are actual routed boards fitted to the v4.2 enclosure, with physical tolerance/assembly verification still pending.

Connector side · Schematic PDF · Native schematic · Native PCB · BOM

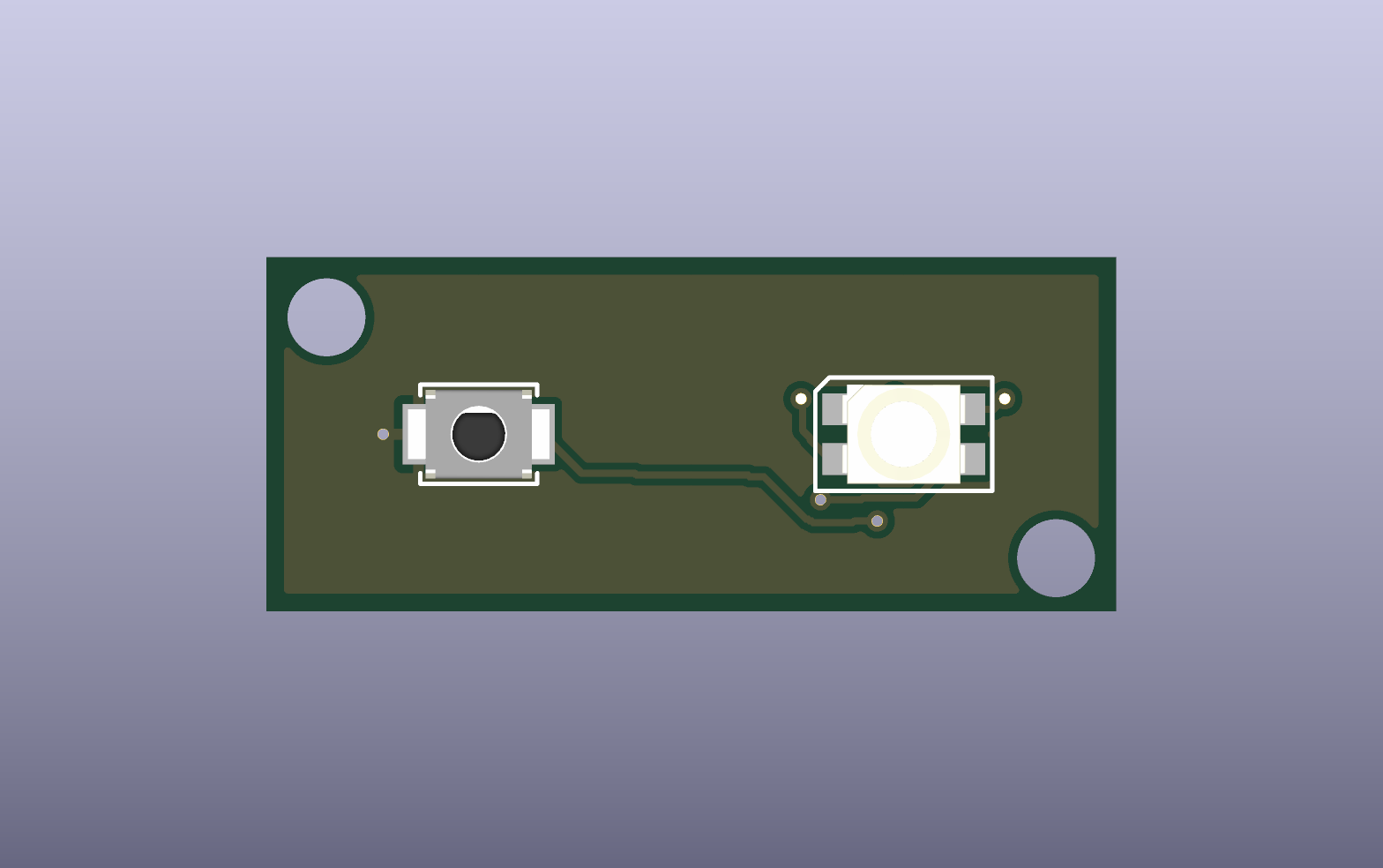

Alec front, from the project README
From the project README

Alec front bill of materials (BOM)

3 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BM06B-GHS-TBT
J1
1
B3U-1000P
BATTERY
SW1
1
150141M173100
D1

Alec front design files

The KiCad project lives in the eshelton328/the-forge repository on GitHub; these links point at the commit this page was built from.

Alec front: common questions

How big is the Alec front PCB?

The Alec front measures 24 × 10 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Alec front?

3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Alec front design files?

From the eshelton328/the-forge repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Alec front design in my own project?

The repository has no license, so all rights stay with eshelton328. Use it as a reference, and ask the author before reusing the design.
