Tps63070-breakout

eshelton328·the-forge·boards/tps63070-breakout/tps63070-breakout.kicad_pcb

Tps63070-breakout layout, top view — open source board by eshelton328
Simulate this board

About the Tps63070-breakout

Tps63070-breakout is an open source PCB design by eshelton328, published on GitHub. It is a 2-layer board measuring 24.7 × 22.9 mm, with 15 components from 11 distinct parts.

Other key parts include the TPS63070RNMR. By type, the board carries 8 capacitors, 4 resistors, 1 IC, 1 connector and 1 inductor.

It belongs with the dev boards & breakouts and power & battery designs in this gallery.

From the project

Hardware design monorepo with software-grade CI/CD. KiCad PCB projects with automated ERC/DRC, multi-fab rule validation, schematic & BOM checks, and auto-generated board documentation.

Standalone breakout board for the TPS63070 buck-boost converter. Provides a regulated 3.3V output from a wide input voltage range (2V–16V).

- Input voltage: 2V – 16V - Output voltage: 3.3V (default, configurable via feedback divider) - Output current: up to 2A - Layers: 2 - Thickness: 1.6mm - Fab targets: JLCPCB / PCBWay 2-layer advanced (see board.yml); CI matches make fab-drc for this board using those decks.

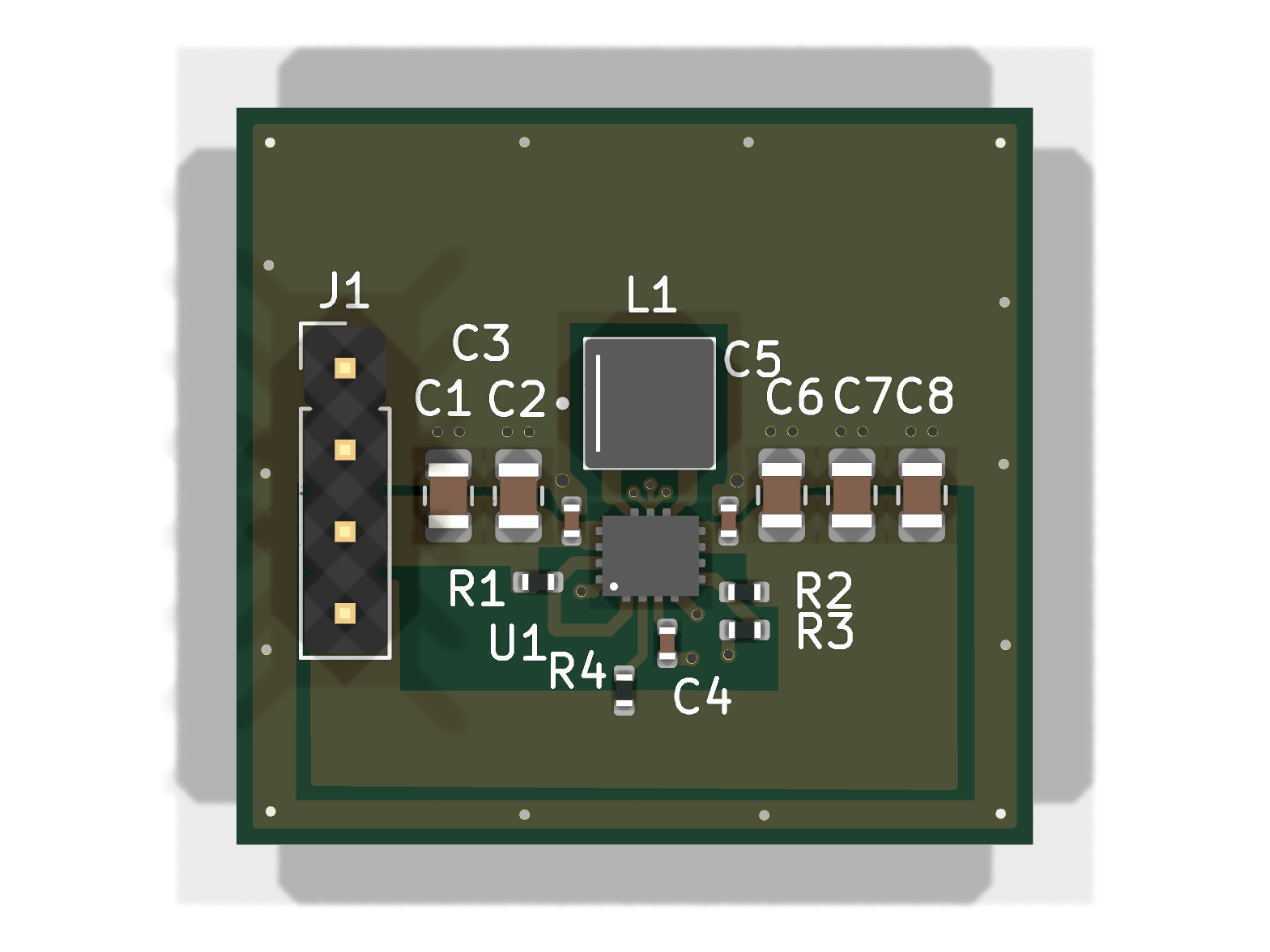

Tps63070-breakout, from the project README
From the project README

Main components on the Tps63070-breakout

TPS63070RNMR

Tps63070-breakout bill of materials (BOM)

15 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPS63070RNMR
TPS63070
U1
1
CONN_01X02_PIN
MODULE PINS
J1
1
XFL4020-152MEC
1.5µH
L1
2
10µF
C1, C2
2
10µF
C3, C5
1
0.1µF
C4
3
GRM31CR61C226KE15L
22µF
C6, C7, C8
1
10kΩ
R1
1
470kΩ
R2
1
150kΩ
R3
1
100kΩ
R4

Tps63070-breakout design files

The KiCad project lives in the eshelton328/the-forge repository on GitHub; these links point at the commit this page was built from.

Tps63070-breakout: common questions

How big is the Tps63070-breakout?

The Tps63070-breakout measures 24.7 × 22.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tps63070-breakout?

15 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Tps63070-breakout design files?

From the eshelton328/the-forge repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Tps63070-breakout design in my own project?

The repository has no license, so all rights stay with eshelton328. Use it as a reference, and ask the author before reusing the design.
