About the Esp32s3-devkit PCB

Esp32s3-devkit is an open source ESP32 PCB design by eshelton328, published on GitHub. It is a 4-layer board measuring 59.3 × 38 mm, with 36 components from 22 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N16, from the ESP32 family. Other key parts include the TPS63070RNMR and USBLC6-2SC6. By type, the board carries 12 capacitors, 11 resistors, 3 ICs, 3 connectors, 3 switches and 2 diodes.

It belongs with the iot & wireless, power & battery and dev boards & breakouts designs in this gallery.

From the project

Hardware design monorepo with software-grade CI/CD. KiCad PCB projects with automated ERC/DRC, multi-fab rule validation, schematic & BOM checks, and auto-generated board documentation.

Development board built around the ESP32-S3-WROOM-1 module with an integrated TPS63070 buck-boost converter and USB-C connectivity.

- MCU: ESP32-S3-WROOM-1 (Wi-Fi + BLE, dual-core, 32-bit) - Power: battery only — 3×AA (≈3.0–4.8 V) on the VBAT header pin, through reverse-polarity PFET (Q1) and power switch (SW1) into a TPS63070 buck-boost (3.3 V regulated output) - Interface: USB-C (USB 2.0, 16-pin receptacle) — data only, by design; VBUS does not power the board. Batteries must be connected and SW1 on to flash. - ESD protection: USBLC6-2SC6 on USB data lines - Layers: 4 - Thickness: 1.6mm -…

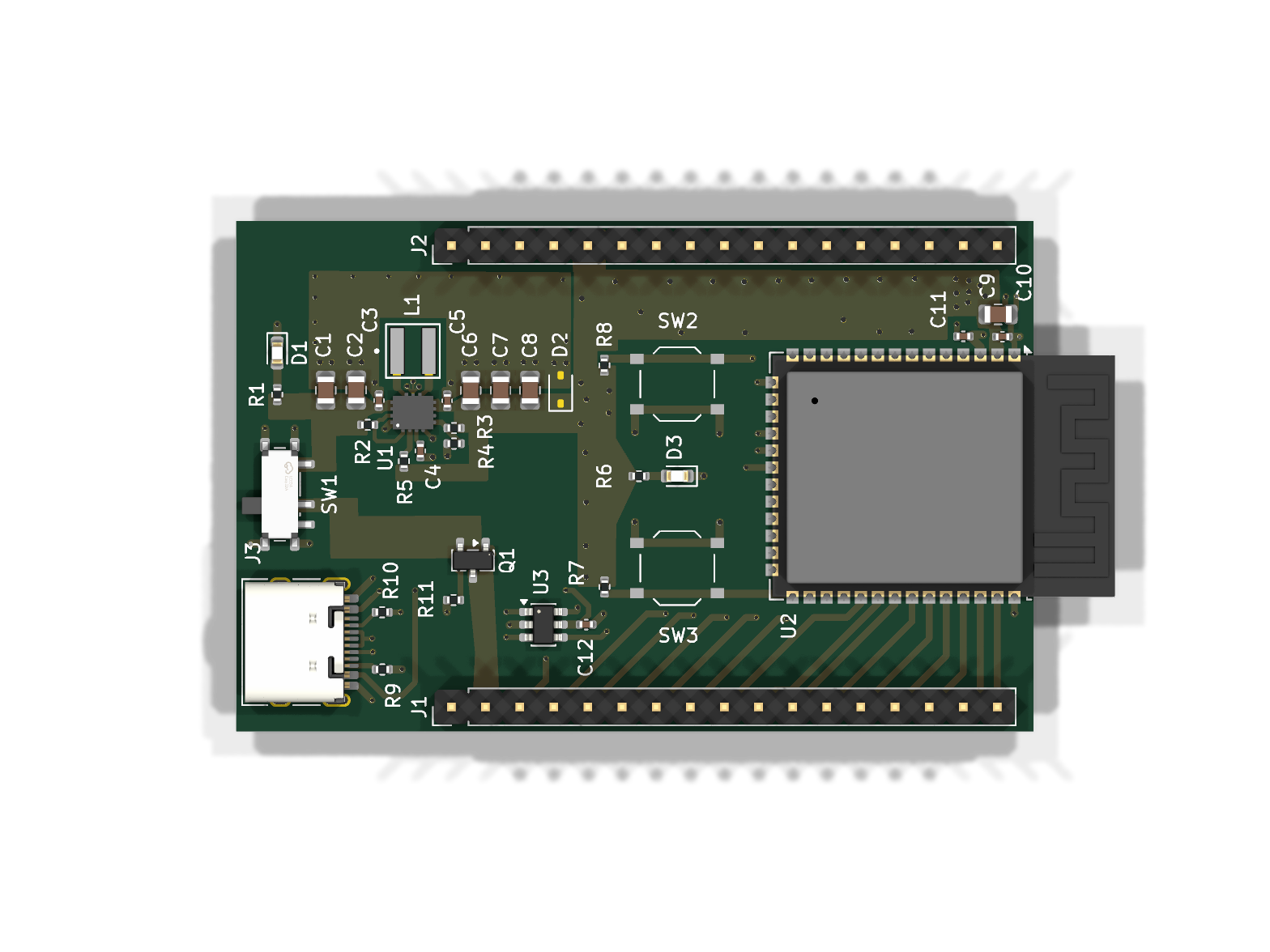

Esp32s3-devkit, from the project README
From the project README

Main components on the Esp32s3-devkit

TPS63070RNMRESP32-S3-WROOM-1-N16USBLC6-2SC6

Esp32s3-devkit bill of materials (BOM)

36 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPS63070RNMR
U1
1
ESP32-S3-WROOM-1-N16
U2
1
USBLC6-2SC6
U3
1
AO3401A
Q1
2
Conn_01x17_Pin
J1, J2
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J3
1
MK-12C03-G015
SW1
1
C318884
RESET
SW2
1
C318884
BOOT
SW3
2
LED
D1, D3
1
1.5UH
1.5µH
L1
2
10UF
10µF
C1, C2
2
10UF
10µF
C3, C5
3
0.1UF
0.1µF
C4, C10, C12
4
22UF
22µF
C6, C7, C8, C9
1
0.1UF
1µF
C11
2
1kΩ
R1, R6
3
10K
10kΩ
R2, R7, R8
1
470K
470kΩ
R3
1
150K
150kΩ
R4
Show 2 more
QtyPartRefs
2
100K
100kΩ
R5, R11
2
5.1K
5.1kΩ
R9, R10

Esp32s3-devkit design files

The KiCad project lives in the eshelton328/the-forge repository on GitHub; these links point at the commit this page was built from.

Esp32s3-devkit: common questions

What microcontroller does the Esp32s3-devkit use?

The Esp32s3-devkit is built around the ESP32-S3-WROOM-1-N16, from the ESP32 family.

How big is the Esp32s3-devkit PCB?

The Esp32s3-devkit measures 59.3 × 38 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Esp32s3-devkit?

36 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32s3-devkit design files?

From the eshelton328/the-forge repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32s3-devkit design in my own project?

The repository has no license, so all rights stay with eshelton328. Use it as a reference, and ask the author before reusing the design.
