Esp32s3-devkit-5v
About the Esp32s3-devkit-5v PCB
Esp32s3-devkit-5v is an open source ESP32 PCB design by eshelton328, published on GitHub. It is a 4-layer board measuring 64 × 56 mm, with 112 components from 50 distinct parts.
Its main chip is the ESP32-S3-WROOM-1-N16, from the ESP32 family. Other key parts include the TPS63070RNMR, USBLC6-2SC6, RV-3028-C7, MAX98357A and SN74LVC2G66DCUR. By type, the board carries 48 resistors, 34 capacitors, 8 ICs, 7 transistors, 7 switches and 4 connectors.
It belongs with the audio and power & battery designs in this gallery.
From the project
Hardware design monorepo with software-grade CI/CD. KiCad PCB projects with automated ERC/DRC, multi-fab rule validation, schematic & BOM checks, and auto-generated board documentation.

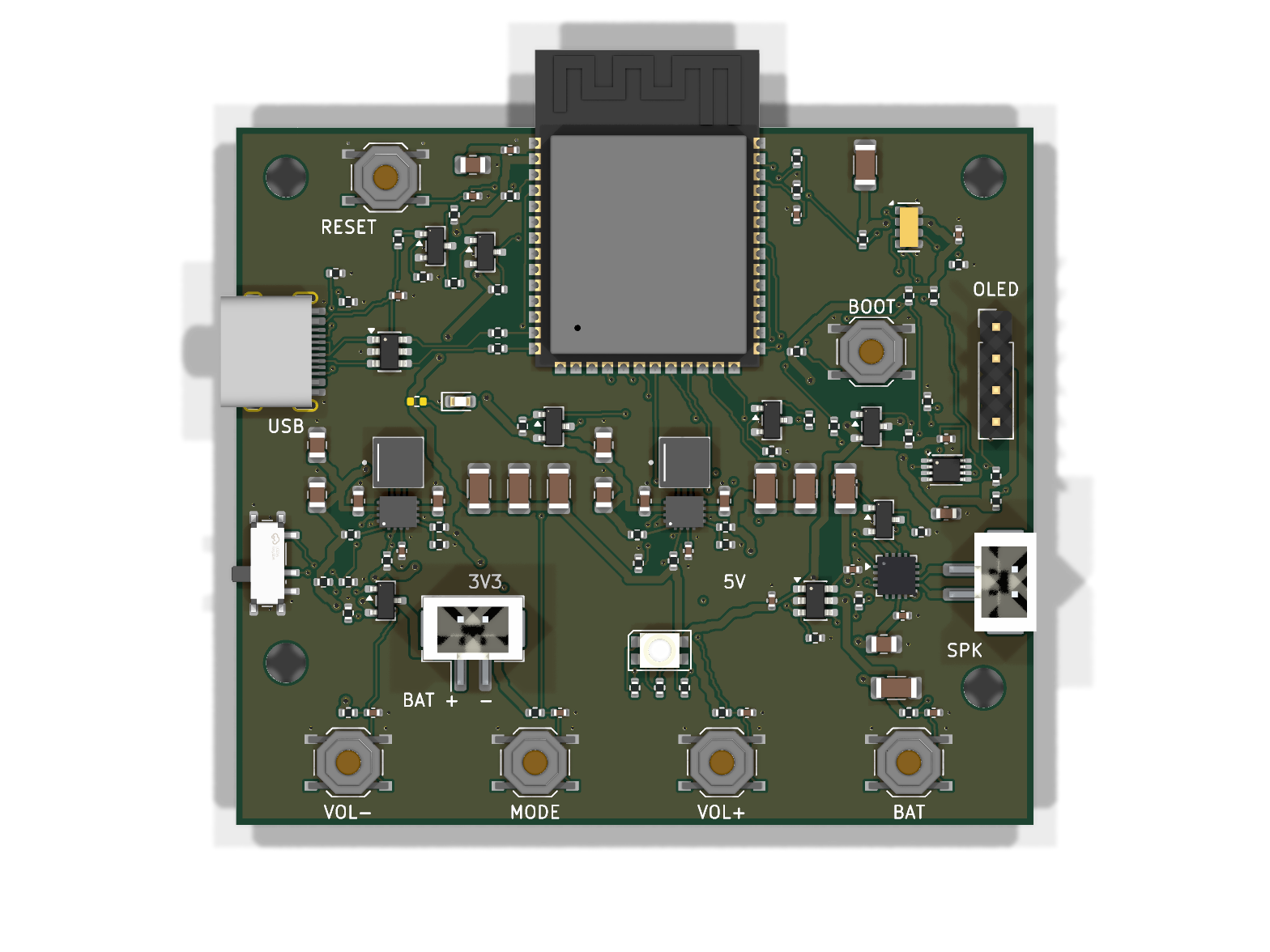

Fully routed 64 × 56 mm, four-layer engineering prototype, revised 2026-09-04. The compact layout is 35.42% smaller than the previous 74 × 75 mm board. The four buttons retain 15 mm spacing and the component-side order VOL− / MODE / VOL+ / BATTERY.
Battery J1 feeds an AO3401A reverse-polarity stage and two TPS63070 buck-boost regulators: 3.307 V for the ESP32-S3/RTC and 4.985 V for the MAX98357A amplifier. GPIO18 enables the audio rail. USB-C is data-only. The RTC, switched OLED bus, wake buttons and common-anode RGB indicator remain.
Main components on the Esp32s3-devkit-5v
Esp32s3-devkit-5v bill of materials (BOM)
112 components, 50 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TPS63070RNMR | TPS63070 | U1, U2 |
| 1 | ESP32-S3-WROOM-1-N16 | ESP32-S3-WROOM-1_Overhang | U3 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U4 |
| 1 | RV-3028-C7 | MicroCrystal_C7_SON-8_1.5x3.2mm_P0.9mm | U5 |
| 1 | MAX98357A | TQFN-16-1EP_3x3mm_P0.5mm_EP1.23x1.23mm | U6 |
| 1 | SN74LVC2G66DCUR | VSSOP-8_2.3x2mm_P0.5mm | U7 |
| 1 | SN74LVC1T45DBVR | SOT-23-6 | U8 |
| 3 | AO3401A | SOT-23 | Q1, Q2, Q6 |
| 4 | MMBT3904 | SOT-23 | Q3, Q4, Q5, Q7 |
| 1 | CONN_01X02_PIN Conn_01x02_Pin | JST_PH_B2B-PH-SM4-TB_1x02-1MP_P2.00mm_Vertical | J1 |
| 1 | USB_C_RECEPTACLE_USB2.0_16P USB_C_Receptacle_USB2.0_16P | USB_C_HRO_Overhang | J2 |
| 1 | CONN_01X02_PIN Conn_01x02_Pin | JST_PH_Speaker_Overhang | J3 |
| 1 | CONN_01X04_PIN Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | J4 |
| 1 | MSK12C02 | SW_SPDT_Shouhan_MSK12C02 | SW1 |
| 1 | RESET | SW_Push_1P1T_XKB_TS-1187A | SW2 |
| 1 | BOOT | SW_Push_1P1T_XKB_TS-1187A | SW3 |
| 1 | VOL- | SW_Push_1P1T_XKB_TS-1187A | SW4 |
| 1 | MODE | SW_Push_1P1T_XKB_TS-1187A | SW5 |
| 1 | VOL+ | SW_Push_1P1T_XKB_TS-1187A | SW6 |
| 1 | BATTERY | SW_Push_1P1T_XKB_TS-1187A | SW7 |
Show 30 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LED | LED_0603_1608Metric | D1 |
| 1 | 150141M173100 | LED_RGB_Wuerth-PLCC4_3.2x2.8mm_150141M173100 | D2 |
| 2 | XFL4020-152MEC 1.5µH | IND_XFL4020-152MEC | L1, L2 |
| 5 | 10µF | C_0805_2012Metric | C1, C2, C9, C10, C27 |
| 4 | 10µF | C_0603_1608Metric | C3, C5, C11, C13 |
| 13 | 0.1µF | C_0402_1005Metric | C4, C12, C18, C20, C22, C23, C24, C25 +5 |
| 6 | GRM31CR61C226KE15L 22µF | C_1206_3216Metric | C6, C7, C8, C14, C15, C16 |
| 1 | 22µF | C_0805_2012Metric | C17 |
| 1 | 1µF | C_0402_1005Metric | C19 |
| 2 | 100µF | C_1206_3216Metric | C21, C26 |
| 1 | 1µF | C_0603_1608Metric | C31 |
| 1 | 0.1UF 0.1uF | C_0402_1005Metric | C34 |
| 10 | 100kΩ | R_0402_1005Metric | R1, R6, R10, R19, R20, R21, R23, R32 +2 |
| 12 | 10kΩ | R_0402_1005Metric | R3, R7, R12, R13, R18, R22, R24, R25 +4 |
| 1 | 470kΩ | R_0402_1005Metric | R4 |
| 1 | 150kΩ | R_0402_1005Metric | R5 |
| 1 | 680kΩ | R_0402_1005Metric | R8 |
| 1 | 130kΩ | R_0402_1005Metric | R9 |
| 1 | 1kΩ | R_0402_1005Metric | R11 |
| 2 | 5.1kΩ | R_0402_1005Metric | R14, R15 |
| 4 | 4.7kΩ | R_0402_1005Metric | R16, R17, R37, R38 |
| 1 | 330Ω | R_0402_1005Metric | R28 |
| 2 | 150Ω | R_0402_1005Metric | R29, R30 |
| 2 | 22Ω | R_0402_1005Metric | R34, R35 |
| 3 | 100K 100k | R_0402_1005Metric | R40, R45, R47 |
| 1 | 1M | R_0402_1005Metric | R41 |
| 2 | 47K 47k | R_0402_1005Metric | R42, R44 |
| 2 | 10K 10k | R_0402_1005Metric | R43, R46 |
| 1 | RT0402BRD0733KL 33k | R_0402_1005Metric | R48 |
| 1 | RT0402BRD0710KL 10k | R_0402_1005Metric | R49 |
Esp32s3-devkit-5v design files
The KiCad project lives in the eshelton328/the-forge repository on GitHub; these links point at the commit this page was built from.
Esp32s3-devkit-5v: common questions
What microcontroller does the Esp32s3-devkit-5v use?
The Esp32s3-devkit-5v is built around the ESP32-S3-WROOM-1-N16, from the ESP32 family.
How big is the Esp32s3-devkit-5v PCB?
The Esp32s3-devkit-5v measures 64 × 56 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Esp32s3-devkit-5v?
112 components, from 50 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Esp32s3-devkit-5v design files?
From the eshelton328/the-forge repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Esp32s3-devkit-5v design in my own project?
The repository has no license, so all rights stay with eshelton328. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Esp32s3-devkit-5v without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
