Tiramisu

esicoe·tiramisu·tiramisu-dev-RP2354B/pcb/tiramisu-dev.kicad_pcb

Tiramisu PCB layout, top view — open source board by esicoe

About the Tiramisu PCB

Tiramisu is an open source PCB design by esicoe, published on GitHub. It is a 4-layer board measuring 154.1 × 147 mm, with 312 components from 23 distinct parts.

Other key parts include the SRV05-4, CD74HC4067M, AMS1117-3.3, RP2354B and TLV73311PDBV. By type, the board carries 158 capacitors, 132 ICs, 15 resistors, 2 connectors, 2 switches and 1 crystal.

It belongs with the sensors and dev boards & breakouts designs in this gallery.

From the project

Tiramisu is a drawing tablet for osu! that tracks a magnet-tipped pen with a grid of 120 Hall-effect sensors and reports its position over USB 1000 times a second. That's the USB Full-Speed ceiling, and 7.5x the 133 Hz of a Wacom CTL-472.

Tiramisu is a drawing tablet for osu! that tracks a magnet-tipped pen with a grid of 120 Hall-effect sensors and reports its position over USB 1000 times a second. That's the USB Full-Speed ceiling, and 7.5x the 133 Hz of a Wacom CTL-472.

It's my independent prototype of the Hall-effect tablet we're building at Wonkle. The board and firmware go by aim1k in the source.

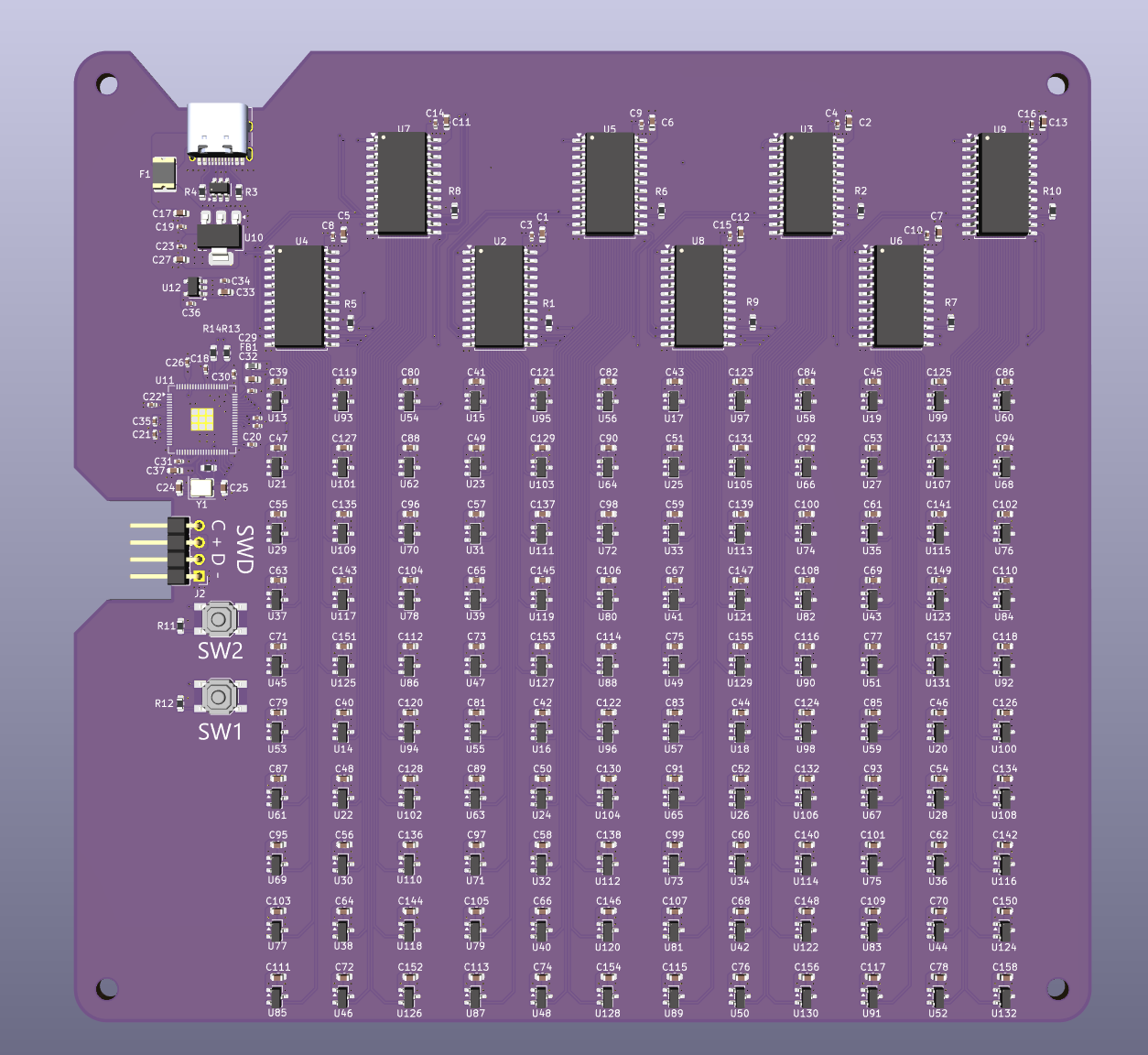

Tiramisu, from the project README
From the project README

Main components on the Tiramisu

SRV05-4CD74HC4067MAMS1117-3.3RP2354BTLV73311PDBVHAL403SO

Tiramisu bill of materials (BOM)

312 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SRV05-4
U1
8
CD74HC4067M
U2, U3, U4, U5, U6, U7, U8, U9
1
AMS1117-3.3
U10
1
RP2354B
U11
1
TLV73311PDBV
U12
120
HAL403SO
U13, U14, U15, U16, U17, U18, U19, U20 +112
1
ABM8-272-T3
Y1
1
TYPE-C-31-M-12
J1
1
SWD
J2
1
SMD1812P075TF/24
F1
2
TS-1187A-B-A-B
SW1, SW2
1
GZ1608D601TF
FB1
9
1u
C1, C2, C5, C6, C7, C11, C12, C13 +1
23
100N
100n
C3, C4, C8, C9, C10, C14, C15, C16 +15
1
10U
10u
C17
2
15P
15p
C24, C25
1
22U
22u
C27
2
4U7
4u7
C29, C37
120
0.1U
0.1u
C39, C40, C41, C42, C43, C44, C45, C46 +112
8
10K
R1, R2, R5, R6, R7, R8, R9, R10
Show 3 more
QtyPartRefs
2
5.1K
R3, R4
3
1K
R11, R12, R15
2
27R
R13, R14

Tiramisu design files

The KiCad project lives in the esicoe/tiramisu repository on GitHub; these links point at the commit this page was built from.

Tiramisu: common questions

How big is the Tiramisu PCB?

The Tiramisu measures 154.1 × 147 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Tiramisu?

312 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Tiramisu design files?

From the esicoe/tiramisu repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Tiramisu design in my own project?

The repository has no license, so all rights stay with esicoe. Use it as a reference, and ask the author before reusing the design.
