Amigo main PCB layout, top view — open source ESP32 board by Ethan2502

About the Amigo main PCB

Amigo main is an open source ESP32 PCB design by Ethan2502, published on GitHub. It is a 2-layer board measuring 50 × 50 mm, with 35 components from 19 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the TP4056-42-ESOP8 and AP2112K-3.3. By type, the board carries 11 capacitors, 10 resistors, 6 connectors, 3 ICs, 3 diodes and 2 switches.

It belongs with the keyboards, power & battery and displays & leds designs in this gallery.

From the project

Wakeup buddy

A desk companion cube that takes over the things you unlock your phone for, so you have no reason to pick it up.

This is my project that I got an idea for when my phone's alarm went off. I always tend to use my phone a little bit in bed when I wake up. I thought I needed my phone to wake me up but then I thought of a product that replaced all the "utility" items your phone could do but without the distractions. I used screentime apps before but they always make it in fingers reach to disable it. Amigo takes the other approach. Instead of locking the phone down, it takes over the jobs you…

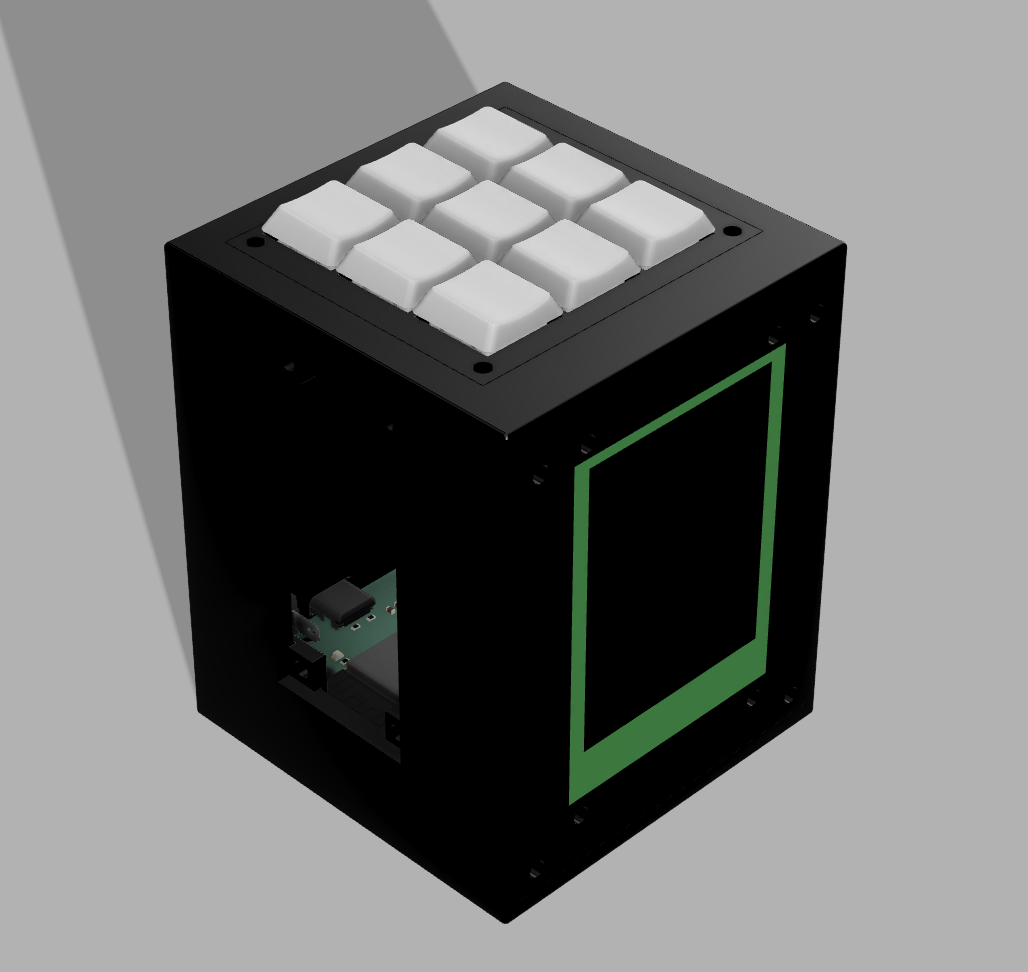

Amigo main, from the project README
From the project README

Main components on the Amigo main

TP4056-42-ESOP8AP2112K-3.3ESP32-S3-WROOM-1

Amigo main bill of materials (BOM)

35 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TP4056-42-ESOP8
U1
1
AP2112K-3.3
U2
1
ESP32-S3-WROOM-1
U3
1
USB_C_Receptacle_USB2.0_16P
J1
1
Conn_01x02
J2
1
OLED
J3
1
MAX98357A
J4
1
Rocker Switch
J5
1
ButtonRibbonConnector
J6
2
SW_Push
SW1, SW2
3
LED
D1, D2, D3
4
10µF
C1, C2, C3, C11
4
100nF
C4, C6, C9, C10
3
1µF
C5, C7, C8
2
5.1k
R1, R2
1
2k
R3
2
100k
R4, R5
2
10k
R6, R7
3
1k
R10, R11, R12

Amigo main design files

The KiCad project lives in the Ethan2502/Amigo repository on GitHub; these links point at the commit this page was built from.

Amigo main: common questions

What microcontroller does the Amigo main use?

The Amigo main is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How big is the Amigo main PCB?

The Amigo main measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Amigo main?

35 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Amigo main design files?

From the Ethan2502/Amigo repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Amigo main design in my own project?

The repository has no license, so all rights stay with Ethan2502. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Amigo main without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
