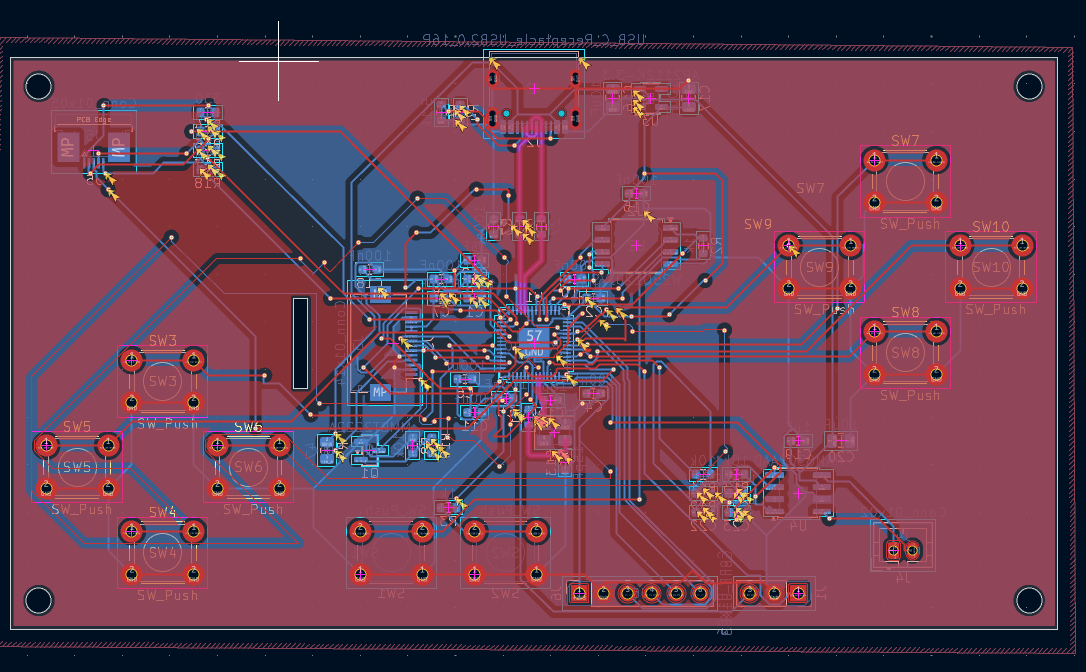

Pcb project layout, top view — open source RP2040/RP2350 board by EvilOtter222

About the Pcb project

Pcb project is an open source RP2040/RP2350 PCB design by EvilOtter222, published on GitHub. It is a 2-layer board measuring 110 × 60 mm, with 62 components from 24 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS, AP2112K-3.3 and PAM8302AAD. By type, the board carries 23 capacitors, 17 resistors, 10 switches, 6 connectors, 4 ICs and 1 transistor.

It belongs with the power & battery, audio and dev boards & breakouts designs in this gallery.

From the project

Insert later

This is my first PCB ever. I've done a lot of embedded stuff before (Arduino, Picos, ESP chips) and I built an 8-bit breadboard computer, but everything I've made was on breadboards and protoboards. I had never opened PCB software before this.

The idea came from a handheld I made with an ESP32 and a capacitive touch TFT (my reddit post a year ago: https://www.reddit.com/r/arduino/comments/1r4qdw3/breakoutgamewithtftand_arduino/). I wanted to build something like that again, but with everything on one board, so the RP2040 goes straight on the PCB. I picked the RP2040 because it's cheap, it's…

Pcb project, from the project README
From the project README

Main components on the Pcb project

RP2040W25Q128JVSAP2112K-3.3PAM8302AAD

Pcb project bill of materials (BOM)

62 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U1
1
W25Q128JVS
U2
1
AP2112K-3.3
U3
1
PAM8302AAD
U4
1
MMBT2222A
Q1
1
12MHz
Y1
1
Conn_01x03
J1
1
USB_C_Receptacle_USB2.0_16P
J2
1
Conn_01x14
J3
1
Conn_01x02
J4
1
Conn_01x05
J5
1
Conn_01x06
J6
10
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +2
14
100nF
C1, C2, C3, C4, C5, C6, C7, C8 +6
3
1uF
C9, C12, C19
2
15pF
C13, C14
3
10uF
C16, C17, C20
1
22nF
C22
5
1k
R1, R2, R3, R10, R12
2
5.1k
R4, R5
Show 4 more
QtyPartRefs
2
27
R6, R7
3
10k
R8, R11, R13
1
47
R9
4
330
R14, R15, R17, R18

Pcb project design files

The KiCad project lives in the EvilOtter222/pcb-project repository on GitHub; these links point at the commit this page was built from.

Pcb project: common questions

What microcontroller does the Pcb project use?

The Pcb project is built around the RP2040, from the RP2040/RP2350 family.

How big is the Pcb project?

The Pcb project measures 110 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pcb project?

62 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pcb project design files?

From the EvilOtter222/pcb-project repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pcb project design in my own project?

The repository has no license, so all rights stay with EvilOtter222. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Pcb project without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
