About the Phonkyo PCB
Phonkyo is an open source PCB design by fabiomsouto, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 65 × 30 mm, with 31 components from 21 distinct parts.
Other key parts include the CAT24C256, PCM5102A and XC6206P332MR. By type, the board carries 14 capacitors, 10 resistors, 3 ICs, 3 connectors and 1 diode.
It belongs with the audio designs in this gallery.
From the project

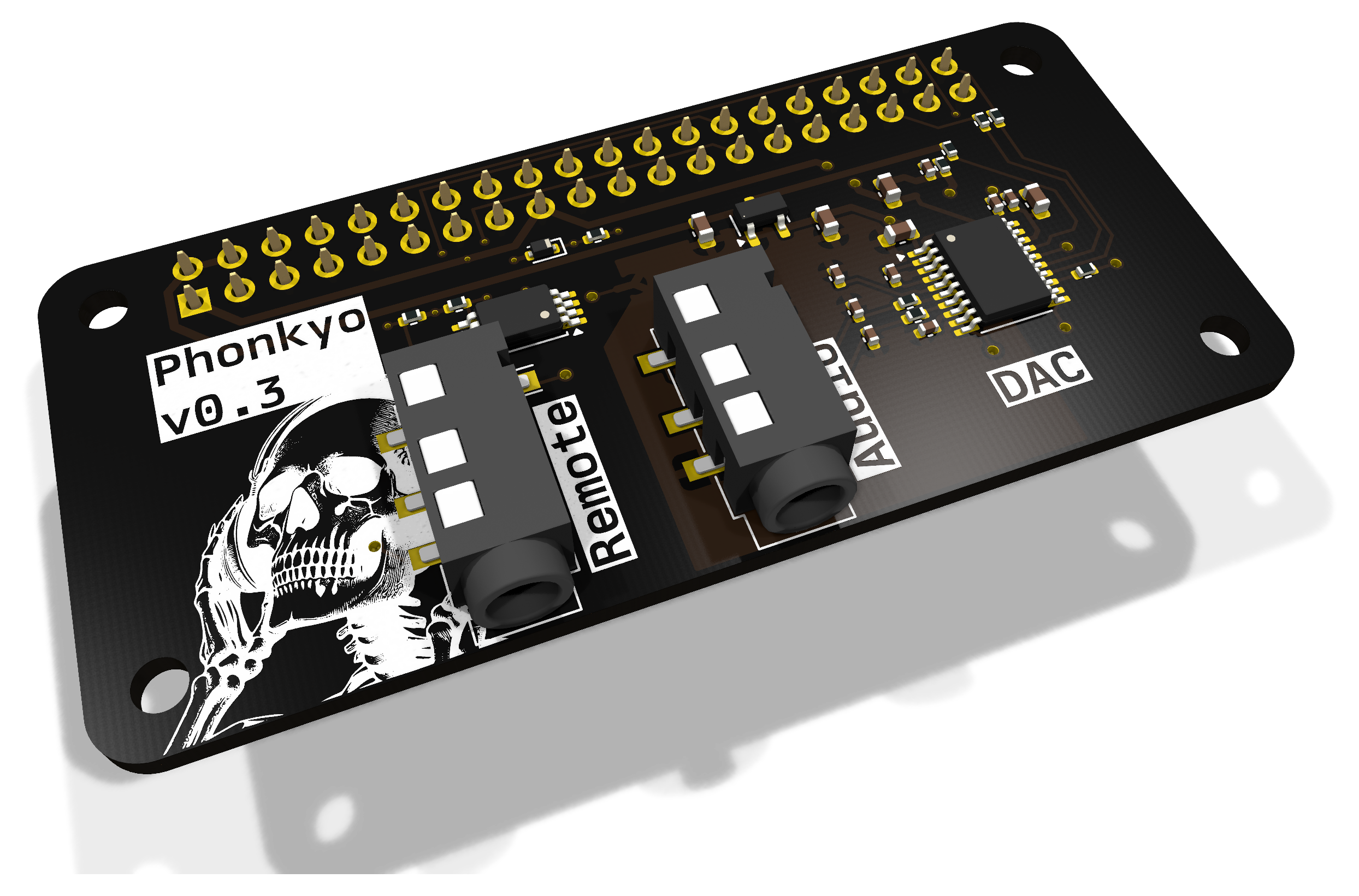

Phonkyo, be lazier!
A PiHat for Onkyo RI-enabled devices, hence the name (PiHat Onkyo).
Phonkyo makes a Raspberry Pi behave like one of Onkyo's own docks. Onkyo receivers have a small RI (Remote Interactive) jack on the back, which docks use to switch the receiver on and change it to the dock input. Phonkyo speaks the same protocol, so when you start playing music the receiver comes on and selects DOCK by itself, and after a few minutes of silence it switches off again.

Main components on the Phonkyo
Phonkyo bill of materials (BOM)
31 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CAT24C256 | TSSOP-8_4.4x3mm_P0.65mm | U1 |
| 1 | PCM5102A | TSSOP-20_4.4x6.5mm_P0.65mm | U2 |
| 1 | XC6206P332MR | SOT-23-3 | U3 |
| 1 | GPIO | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 1 | LineOutJack | Jack_3.5mm_KoreanHropartsElec_PJ-320D-4A_Horizontal | J2 |
| 1 | RIJack | Jack_3.5mm_KoreanHropartsElec_PJ-320D-4A_Horizontal | J4 |
| 1 | ESD5Z5.0 | D_SOD-523 | D1 |
| 1 | 100n | C_0402_1005Metric | C1 |
| 3 | 2.2N 2.2n | C_0402_1005Metric | C2, C3, C6 |
| 2 | 2.2U 2.2u | C_0402_1005Metric | C4, C10 |
| 1 | 1u | C_0603_1608Metric | C5 |
| 1 | 0.1U 0.1u | C_0603_1608Metric | C7 |
| 3 | 10UF 10uf | C_0603_1608Metric | C8, C9, C13 |
| 2 | 0.1U 0.1u | C_0402_1005Metric | C11, C12 |
| 1 | 0.1u | C_0402_1005Metric | C14 |
| 2 | 3.9k | R_0402_1005Metric | R1, R2 |
| 2 | 470 | R_0402_1005Metric | R3, R4 |
| 1 | 10K 10k | R_0402_1005Metric | R5 |
| 1 | 20K 20k | R_0402_1005Metric | R6 |
| 3 | 22 | R_0402_1005Metric | R7, R8, R9 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100 | R_0402_1005Metric | R12 |
Phonkyo design files
The KiCad project lives in the fabiomsouto/phonkyo repository on GitHub; these links point at the commit this page was built from.
- Layoutphonkyo.kicad_pcb
- Schematicphonkyo.kicad_sch
- BOMproduction/v0.2/bom.csv
Phonkyo: common questions
How big is the Phonkyo PCB?
The Phonkyo measures 65 × 30 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Phonkyo?
31 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Phonkyo design files?
From the fabiomsouto/phonkyo repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Phonkyo design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
