MateRix PCB layout, top view — open source ESP32 board by FBIopeningUPP

About the MateRix PCB

MateRix is an open source ESP32 PCB design by FBIopeningUPP, published on GitHub. It is a 4-layer board measuring 40 × 69 mm, with 145 components from 27 distinct parts.

Its main chip is the ESP32-S3-MINI-1-N8, from the ESP32 family. Other key parts include the 74AHCT125BQ,115, MIC5219-3.3YM5, CH224K and MP9943GQ(TOKMAS). By type, the board carries 101 LEDs, 15 capacitors, 12 resistors, 8 switches, 5 ICs and 3 connectors.

It belongs with the displays & leds and sensors designs in this gallery.

From the project

MateRix a esp32 s3 and ws2812b 2020 40x40 matrix display with joystick and imu and some buttons for fun

MateRix is a 10x10 LED Matrix console built around the ESP32-S3. It runs a standalone C++ operating system for embedded games (Tetris, Snake) and connects to a custom PyQt5 desktop application for live telemetry, screen painting, and device configuration over UART.

Standalone C++ embedded OS with multitasking state machine Playable Tetris and Snake game engines Hardware-level Matrix Digital Rain screensaver with idle timeout 10x10 WS2812B LED Matrix divided into 4 high-speed hardware quadrants Custom Python (PyQt5) desktop studio for live two-way UART communication Real-time telemetry…

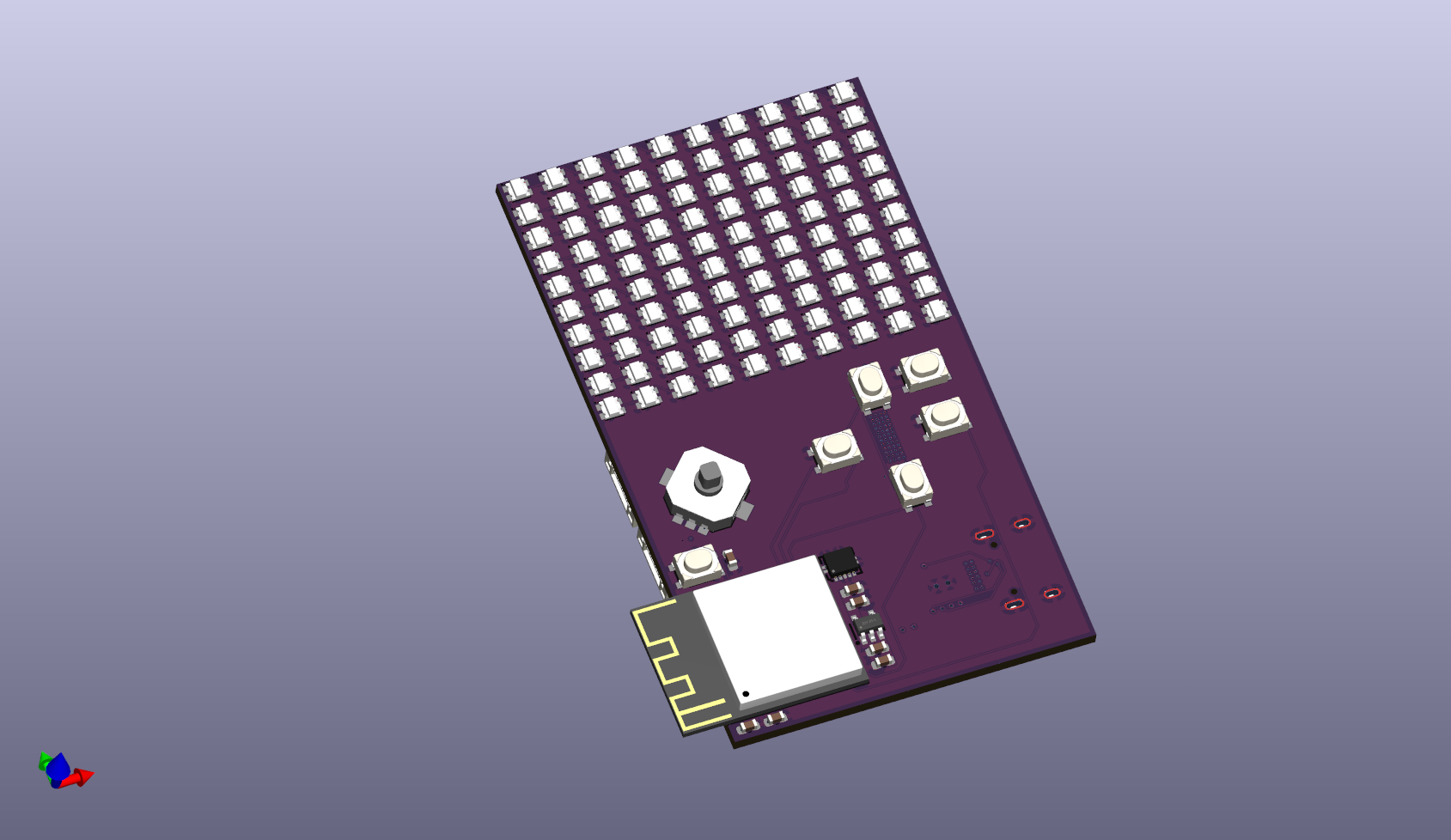

MateRix, from the project README
From the project README

Main components on the MateRix

74AHCT125BQ,115MIC5219-3.3YM5CH224KESP32-S3-MINI-1-N8MP9943GQ(TOKMAS)

MateRix bill of materials (BOM)

145 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
74AHCT125BQ,115
Nexperia(安世)
U202
1
MIC5219-3.3YM5
U203
1
CH224K
U401
1
ESP32-S3-MINI-1-N8
ESPRESSIF(乐鑫)
U402
1
MP9943GQ(TOKMAS)
MP9943GQ
Tokmas(托克马斯)
U501
2
CONN_01X04_MOUNTINGPIN
Conn_01x04_MountingPin
J201, J202
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J401
1
SKRHAAE010
ALPSALPINE(阿尔卑斯阿尔派)
SW201
6
SKRPABE010
SW202, SW203, SW204, SW205, SW206, SW207
1
DSHP03TS-S
XKB Connection(中国星坤)
SW401
100
WS2812B-2020
WS2812B
worldsemi
LED301, LED302, LED303, LED304, LED305, LED306, LED307, LED308 +92
1
LED_0603
LED401
1
SMMS0530-100M
SXN(顺翔诺)
L501
3
100NF
100nF
C201, C203, C205
4
0.1UF
0.1uF
C202, C204, C206, C207
1
1UF
1uF
C401
2
100NF
100nF
C501, C505
3
1UF
1uF
C502, C503, C504
2
22UF
22uF
C506, C507
4
10K
10k
R401, R404, R405, R406
Show 7 more
QtyPartRefs
2
1k
R402, R403
1
100K
100k
R501
1
330K
330k
R502
1
20
R503
1
41.2K
41.2k
R504
1
51K
51k
R505
1
6.98K
6.98k
R506

MateRix design files

The KiCad project lives in the FBIopeningUPP/MateRix repository on GitHub; these links point at the commit this page was built from.

MateRix: common questions

What microcontroller does the MateRix use?

The MateRix is built around the ESP32-S3-MINI-1-N8, from the ESP32 family.

How big is the MateRix PCB?

The MateRix measures 40 × 69 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the MateRix?

145 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MateRix design files?

From the FBIopeningUPP/MateRix repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MateRix design in my own project?

The repository has no license, so all rights stay with FBIopeningUPP. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MateRix without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
