About the Circuito-Disparo-Laser-CO2 PCB

Circuito-Disparo-Laser-CO2 is an open source PCB design by FernandoVB01, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 70 mm, with 45 components from 29 distinct parts.

Other key parts include the TLC555CP and L7805CV. By type, the board carries 17 resistors, 12 capacitors, 6 diodes, 3 ICs, 3 switches and 2 transistors.

It belongs with the sensors designs in this gallery.

From the project

Diseño Básico de Circuito para Disparo PCB CO2

Diseño completo de la electrónica de control y disparo para un láser CO₂ Coherent C-30 / GEM-30: análisis del circuito, simulación validada en LTspice, proyecto KiCad 10 con la PCB colocada y ruteada al 100 %, archivos de fabricación y estimación de costos.

El láser se controla por un conector RJ-45 (Tabla 4-1 del manual GEM-30). La placa:

1. Se alimenta del Pin 2 (+15 V, 250 mA) del propio láser → PTC → 7805 → +5 V. Sin los 48 V del láser no hay lógica, así que ninguna señal de control puede activarse antes de tiempo. 2. Impone por hardware los 30 s de preionización que exige el fabricante…

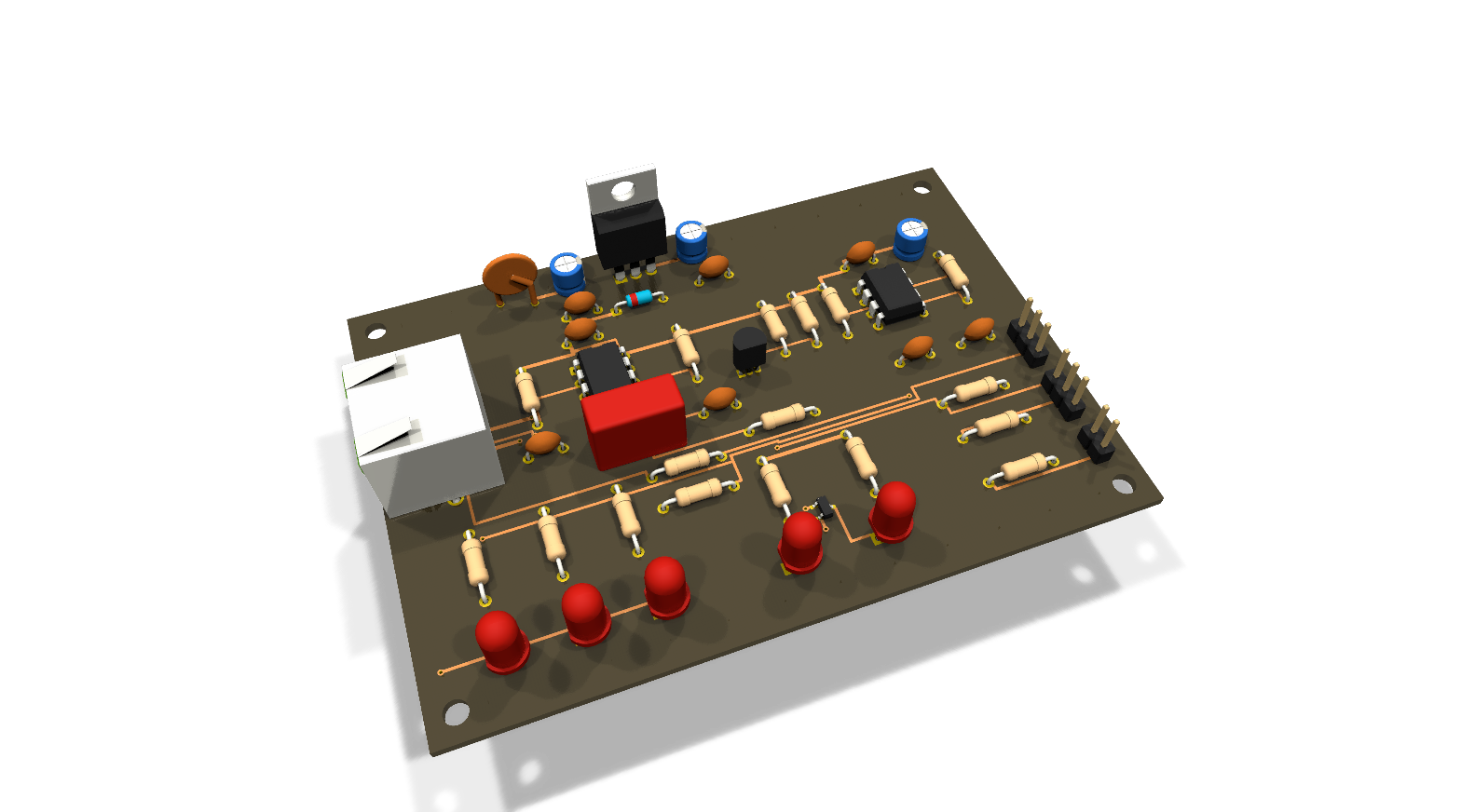

Circuito-Disparo-Laser-CO2, from the project README
From the project README

Main components on the Circuito-Disparo-Laser-CO2

TLC555CPL7805CV

Circuito-Disparo-Laser-CO2 bill of materials (BOM)

45 components, 29 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
TLC555CP
U1, U2
1
L7805CV
U3
1
BC547B
Q1
1
2N7002
Q2
1
RJ-45 al laser
J1
1
PTC 0ZRE0012FF 0.12A
F1
1
HABILITAR CONTROL
SW1
1
HABILITAR RF
SW2
1
MODO CW
SW3
1
LED PREIONIZACION
D1
1
LED CONTROL OK
D2
1
LED LASER OK
D3
1
LED TEMP OK
D4
1
1N4148
D5
1
LED VOLTAGE OK
D6
1
10uF/25V
C1
5
100nF
C2, C4, C5, C8, C11
2
10uF/16V
C3, C12
1
10uF film
C6
3
10nF C0G
C7, C9, C10
Show 9 more
QtyPartRefs
1
100k
R1
1
3.3M 1%
R2
1
1.5k
R3
3
10k
R4, R9, R12
1
330
R5
6
1k
R6, R7, R13, R15, R16, R17
2
100
R8, R14
1
1k 1%
R10
1
6.8k 1%
R11

Circuito-Disparo-Laser-CO2 design files

The KiCad project lives in the FernandoVB01/Circuito-Disparo-Laser-CO2 repository on GitHub; these links point at the commit this page was built from.

Circuito-Disparo-Laser-CO2: common questions

How big is the Circuito-Disparo-Laser-CO2 PCB?

The Circuito-Disparo-Laser-CO2 measures 100 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Circuito-Disparo-Laser-CO2?

45 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Circuito-Disparo-Laser-CO2 design files?

From the FernandoVB01/Circuito-Disparo-Laser-CO2 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Circuito-Disparo-Laser-CO2 design in my own project?

Yes, under the terms of its MIT license, which FernandoVB01 chose for the repository.
