About the Lichuan lc10 PCB
Lichuan lc10 is an open source PCB design by festlv, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 40.5 × 78 mm, with 5 components from 4 distinct parts.
It belongs with the robotics & motion designs in this gallery.
From the project
Hardware design for modular CNC controller

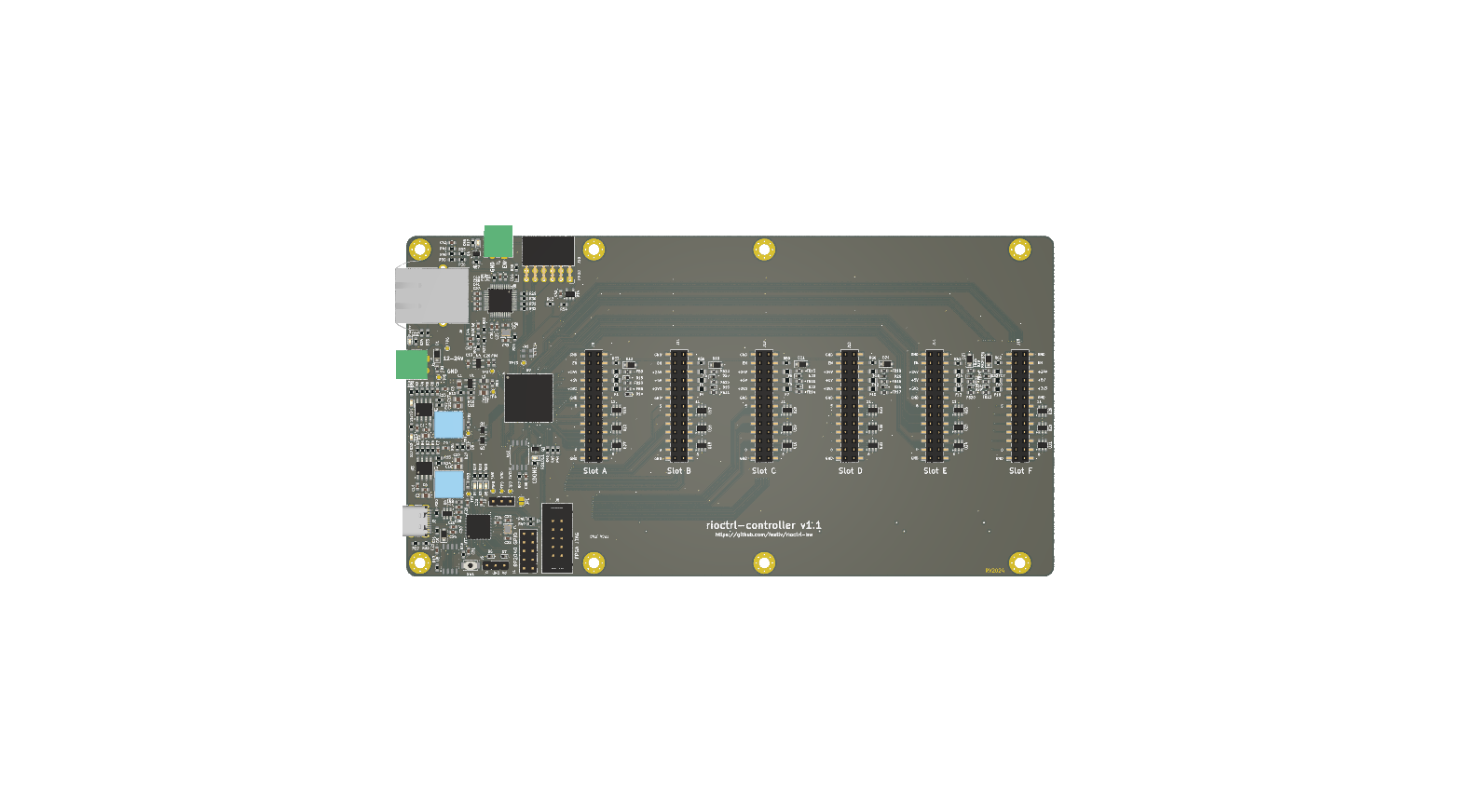

rioctrl is modular open source CNC controller hardware for riocore.
It consists of a main FPGA controller board which has 6 slots for various input/output modules.
At this time, the following modules have been designed:
rioctrl-controller: Lattice ECP5 based controller board rioctrl-stepdir4: 4 axis step/dir output interface rioctrl-quadenc4: 4 axis quadrature encoder (ABZ) input rioctrl-shifio: 16 digital inputs, 16 digital outputs (PNP) breakouts/lichuan-lc10: breakout board that allows connecting Lichuan LC10 series servo to stepdir4 and quadenc4 module (via off-the-shelf RJ45 cables)…

Lichuan lc10 bill of materials (BOM)
5 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | R-RJ45R08P-C000 RJ45_LED_Shielded Ckmtw(Shenzhen Cankemeng) | R-RJ45R08P-C000 | J1, J2 |
| 1 | MX250-3.5-08P-B-GY01-Cu-A TERM-BLK-8H-S MAX | MX250-3.5-08P-B | J3 |
| 1 | Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | J4 |
| 1 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J5 |
Lichuan lc10 design files
The KiCad project lives in the festlv/rioctrl-hw repository on GitHub; these links point at the commit this page was built from.
Lichuan lc10: common questions
How big is the Lichuan lc10 PCB?
The Lichuan lc10 measures 40.5 × 78 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Lichuan lc10?
5 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Lichuan lc10 design files?
From the festlv/rioctrl-hw repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Lichuan lc10 design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which festlv chose for the repository.
