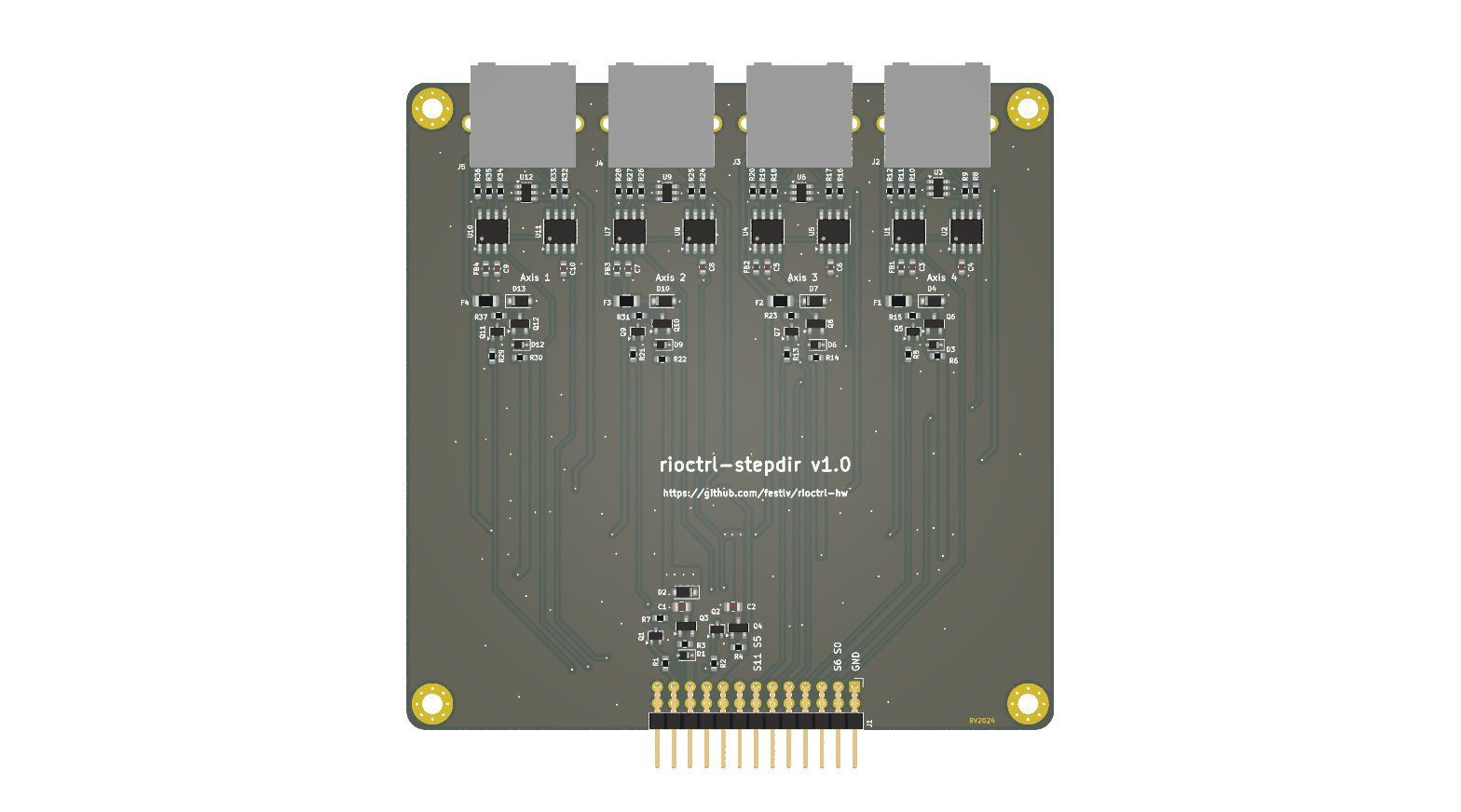

Rioctrl stepdir4
About the Rioctrl stepdir4 PCB
Rioctrl stepdir4 is an open source PCB design by festlv, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 100 × 100 mm, with 94 components from 14 distinct parts.
Other key parts include the CS48505S and USBLC6-4SC6. By type, the board carries 37 resistors, 12 ICs, 12 transistors, 10 diodes, 10 capacitors and 5 connectors.
It belongs with the robotics & motion designs in this gallery.
From the project
Hardware design for modular CNC controller
This module provides 4 axis of step/dir/enable signals. Step/dir signals are differential 5V. Enable signal is at the same voltage as controller's DC input.
The connectors are RJ45 (intended use is either with motor-drive specific breakout board or a generic screw-terminal type breakout board).
RJ45 green LED is wired to enable signal.
Main components on the Rioctrl stepdir4
Rioctrl stepdir4 bill of materials (BOM)
94 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | CS48505S Chipanalog | SOIC-8_3.9x4.9mm_P1.27mm | U1, U2, U4, U5, U7, U8, U10, U11 |
| 4 | USBLC6-4SC6 TECH PUBLIC | SOT-23-6 | U3, U6, U9, U12 |
| 6 | BSS138W Jiangsu Changjing Electronics Technology Co., Ltd. | SOT-323_SC-70 | Q1, Q2, Q5, Q7, Q9, Q11 |
| 6 | AO3401A UMW | SOT-23 | Q3, Q4, Q6, Q8, Q10, Q12 |
| 1 | Conn_02x13_Odd_Even | PinHeader_2x13_P2.54mm_Horizontal | J1 |
| 4 | R-RJ45R08P-C000 RJ45_LED_Shielded Ckmtw(Shenzhen Cankemeng) | R-RJ45R08P-C000 | J2, J3, J4, J5 |
| 4 | BSMD1206-100-24V BHFUSE | Fuse_1206_3216Metric | F1, F2, F3, F4 |
| 5 | BZT52C10S YFW | D_SOD-323 | D1, D3, D6, D9, D12 |
| 5 | SMF24A Shandong Jingdao Microelectronics | D_SOD-123F | D2, D4, D7, D10, D13 |
| 4 | UPZ1608E101-3R0TF FB_100R_3A Sunlord | L_0603_1608Metric | FB1, FB2, FB3, FB4 |
| 2 | GRM21BR61H106KE43L 10uF | C_0805_2012Metric | C1, C2 |
| 8 | 0.1uF | C_0603_1608Metric | C3, C4, C5, C6, C7, C8, C9, C10 |
| 21 | 10K | R_0603_1608Metric | R1, R2, R3, R4, R5, R6, R7, R12 +13 |
| 16 | 100R | R_0603_1608Metric | R8, R9, R10, R11, R16, R17, R18, R19 +8 |
Rioctrl stepdir4 design files
The KiCad project lives in the festlv/rioctrl-hw repository on GitHub; these links point at the commit this page was built from.
Rioctrl stepdir4: common questions
How big is the Rioctrl stepdir4 PCB?
The Rioctrl stepdir4 measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rioctrl stepdir4?
94 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Rioctrl stepdir4 design files?
From the festlv/rioctrl-hw repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Rioctrl stepdir4 design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which festlv chose for the repository.
