Pcb keyboard right

Gabriele-tomai00·split_keyboard_2_qmk_pcb·kicad/pcb_keyboard_right/pcb_keyboard_right.kicad_pcb

Pcb keyboard right layout, top view — open source RP2040/RP2350 board by Gabriele-tomai00

About the Pcb keyboard right

Pcb keyboard right is an open source RP2040/RP2350 PCB design by Gabriele-tomai00, published on GitHub. It is a 2-layer board measuring 156.8 × 141.2 mm, with 123 components from 20 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the 74LVC1G34. By type, the board carries 37 switches, 37 diodes, 36 LEDs, 4 jumpers, 2 ICs and 2 connectors.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

My second custom split keyboard: qmk firmware, pcb, 3d files

This project details the design and construction of my first custom split keyboard. The build features a custom PCB, hand-soldered components, and a 3D-printed case, all powered by the Raspberry Pi Pico and QMK firmware.

Key Features: - Microcontroller: Raspberry Pi Pico (RP2040) - Firmware: QMK with Vial GUI support - Switches: Hot-swappable MX switches - Displays: OLED status screens - Input: Rotary encoders - Interconnect: RJ11 cabling for safe hot-plugging

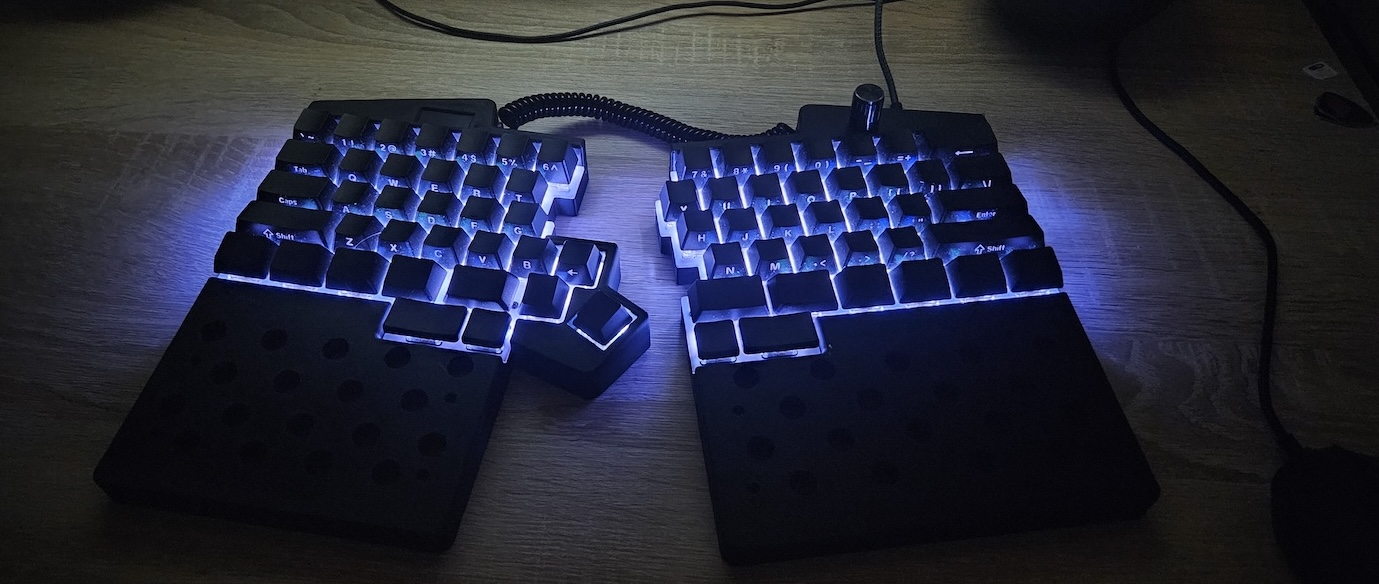

Pcb keyboard right, from the project README
From the project README

Main components on the Pcb keyboard right

Pico74LVC1G34

Pcb keyboard right bill of materials (BOM)

123 components, 20 distinct parts.

QtyPartRefs
1
Pico
U1
1
74LVC1G34
U2
1
4P4C
J1
1
Conn_01x04
J4
2
MountingHole
H2, H11
4
Jumper_2_Bridged
JP1, JP2, JP3, JP4
24
Keyswitch
S1, S2, S4, S5, S6, S7, S9, S10 +16
1
Keyswitch
S3
1
Keyswitch
S8
2
Keyswitch
S13, S33
1
Keyswitch
S14
4
Keyswitch
S23, S28, S31, S36
1
Keyswitch
S32
1
Keyswitch
S34
1
Keyswitch
S35
1
RotaryEncoder_Switch
SW2
1
TestPoint
TP1
36
LED_SK6812MINI
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +28
37
1N4148W
Diode
D1, D2, D3, D4, D5, D6, D7, D8 +29
2
C
C1, C2

Pcb keyboard right design files

The KiCad project lives in the Gabriele-tomai00/split_keyboard_2_qmk_pcb repository on GitHub; these links point at the commit this page was built from.

Pcb keyboard right: common questions

What microcontroller does the Pcb keyboard right use?

The Pcb keyboard right is built around the Pico, from the RP2040/RP2350 family.

How big is the Pcb keyboard right?

The Pcb keyboard right measures 156.8 × 141.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pcb keyboard right?

123 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pcb keyboard right design files?

From the Gabriele-tomai00/split_keyboard_2_qmk_pcb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pcb keyboard right design in my own project?

The repository has no license, so all rights stay with Gabriele-tomai00. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Pcb keyboard right without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
