Uamsense PCB layout, top view — open source ESP32 board by GNB-UAM

About the Uamsense PCB

Uamsense is an open source ESP32 PCB design by GNB-UAM, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 69.7 × 95.9 mm, with 72 components from 37 distinct parts.

Its main chip is the ESP32-WROOM, from the ESP32 family. Other key parts include the MPU-9250, R-78E5.0-0.5, LD1117S33TR, VNH7070AS and BMXX80. By type, the board carries 20 resistors, 18 capacitors, 11 connectors, 9 ICs, 3 diodes and 2 switches.

It belongs with the sensors designs in this gallery.

From the project

Artificial nose design with multimodal sensing capabilities

These are experimental designs. Use at your own risk.

Please see Bibtex and other citation options at the bottom of the page.

For hardware: Attribution-ShareAlike 4.0 International

Scientific papers: - Garcia-Saura C., Rodriguez-Lujan I., Serrano E., Rodríguez F.B. and Varona P., At-home monitorization using artificial noses and multimodal sensors: a noninvasive approach to human routine certification. IBJ Plus 2022 1(s5) e00017. DOI: 10.24217/2531- 0151.22v1s5.00017. https://doi.org/10.24217/2531-0151.22V1S5.00017

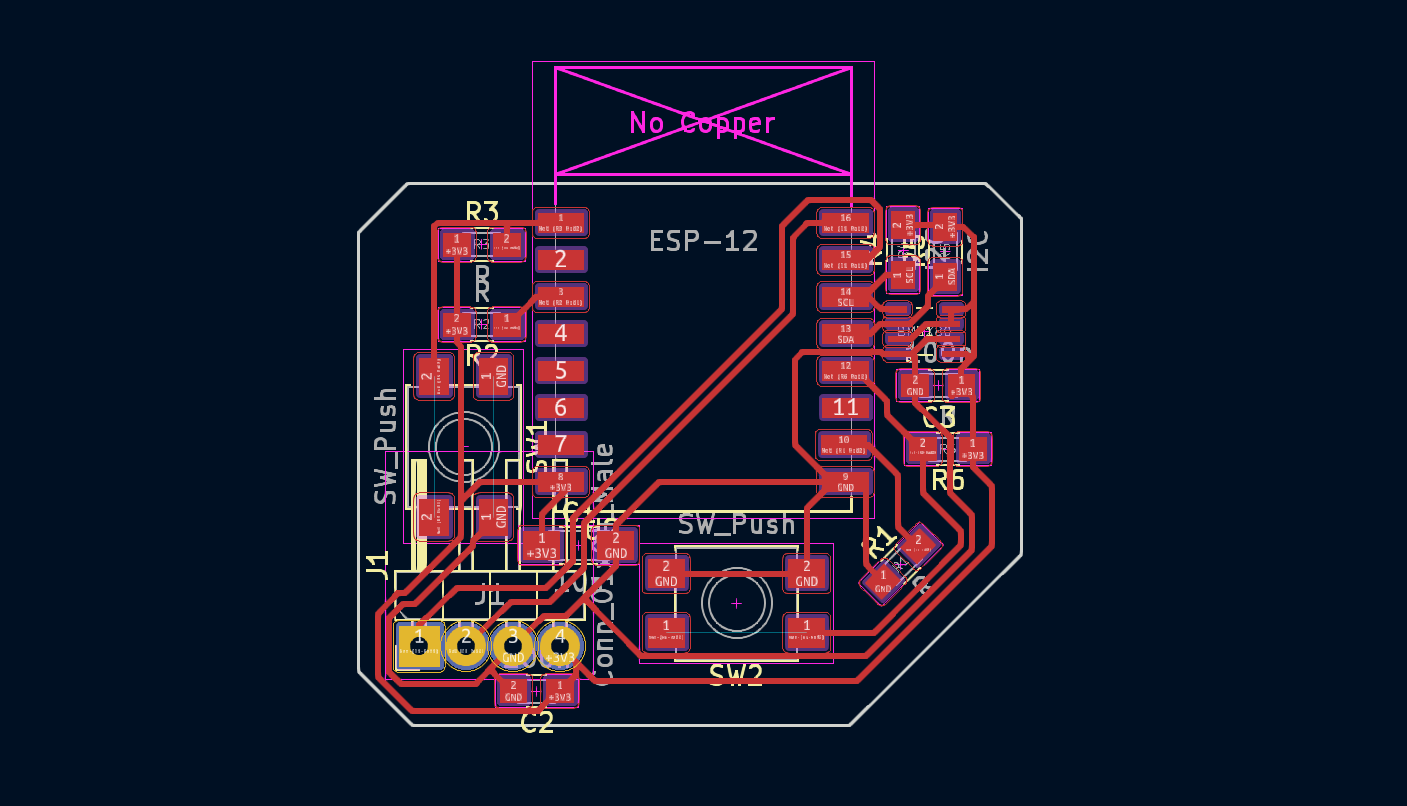

Uamsense, from the project README
From the project README

Main components on the Uamsense

MPU-9250R-78E5.0-0.5LD1117S33TRESP32-WROOMVNH7070ASBMXX80Si1132

Uamsense bill of materials (BOM)

72 components, 37 distinct parts.

QtyPartRefs
1
MPU-9250
IC1
1
R-78E5.0-0.5
U1
2
LD1117S33TR
U2, U5
1
ESP32-WROOM
U3
1
VNH7070AS
U4
2
BMXX80
U6, U7
1
Si1132
U8
1
BSS138
Q2
1
power
J1
1
loudness
J2
1
fan
J3
1
peltier
J4
1
+5V
J5
1
CDM7160
P1
1
CDM7160
P4
1
DSM501A
P5
1
door
P7
1
I2C
P8
1
SERIAL
P9
6
TGS2600
B1, B2, B3, B4, B5, B6
Show 17 more
QtyPartRefs
1
RESET
SW1
1
BOOT
SW2
1
D_Schottky_x2_KCom_AKA
D1
1
3.3V
D3
1
D_Schottky
D4
2
33u
L1, L2
8
10u
C1, C3, C4, C5, C7, C10, C13, C14
1
270u
C2
9
100n
C6, C8, C9, C11, C12, C15, C16, C17 +1
6
10k
R1, R7, R9, R11, R12, R15
1
1k
R2
1
Rfan
R3
6
Rtgs
R4, R13, R16, R20, R22, R24
1
RsenseH
R5
3
5.23k
R6, R10, R14
1
SDA
R8
1
SCL
R17

Uamsense design files

The KiCad project lives in the GNB-UAM/UAMSense repository on GitHub; these links point at the commit this page was built from.

Uamsense: common questions

What microcontroller does the Uamsense use?

The Uamsense is built around the ESP32-WROOM, from the ESP32 family.

How big is the Uamsense PCB?

The Uamsense measures 69.7 × 95.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Uamsense?

72 components, from 37 distinct parts. The full bill of materials is listed on this page.

Where can I download the Uamsense design files?

From the GNB-UAM/UAMSense repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Uamsense design in my own project?

Yes, under the terms of its GPL-3.0 license, which GNB-UAM chose for the repository.

Can I test firmware for the Uamsense without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
