About the BluePill-BMP PCB

BluePill-BMP is an open source STM32 PCB design by grumat, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 70 × 60 mm, with 23 components from 19 distinct parts.

Its main chip is the AD8531ARTZ, from the STM32 family. Other key parts include the FT232RL_Breakout. By type, the board carries 11 resistors, 8 connectors, 2 ICs, 1 diode and 1 capacitor.

It belongs with the usb & debug tools designs in this gallery.

From the project

Glossy MSP430 - Embedded GDB Debugger for MSP430

THIS DEVELOPMENT BOARD WAS DEPRECATED IN AUG/2022

~~For the development of the project we need access to the hardware pins and components. So, one of the easiest way to go is the STM32F103 Blue Pill.~~

~~This is a really cheap and powerful solution. The chip offers following advantages if compared to other 8 or 16-bit cheap modules:~~

- ~~Unbeatable price/performance~~ - ~~Lots of documentation and community support~~ - ~~Higher clock rates when compared to MSP430 alternatives~~ - ~~Lots of interface pins~~ - ~~Possibility to bit-bang pin at a rate near 10 MHz, which is the upper limit of…

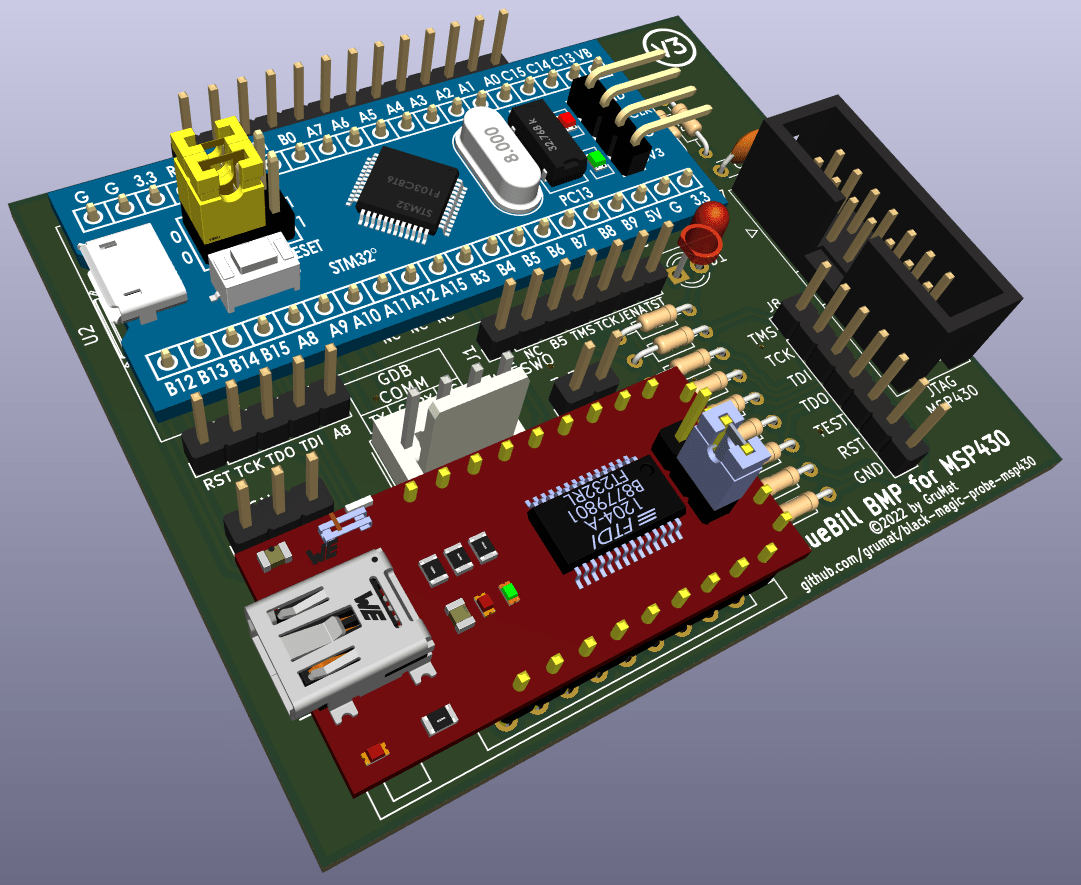

BluePill-BMP, from the project README
From the project README

Main components on the BluePill-BMP

FT232RL_BreakoutAD8531ARTZ

BluePill-BMP bill of materials (BOM)

23 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
FT232RL_Breakout
U1
1
AD8531ARTZ
STM32F103 BluePill
U2
1
Conn_01x07
J1
1
Conn_01x05
J2
1
Conn_01x11
J3
1
GDB_COMM
J4
1
VCC
J5
1
GND
J6
1
JTAG
J7
1
LogicAna
J8
1
LED
D1
1
100NF
100nF
C1
1
47K
1K
R1
1
47K
4K7
R2
1
4K7
R3
1
4K7
330
R4
1
150
330
R5
1
10K
330
R6
5
330
R7, R8, R9, R10, R11

BluePill-BMP design files

The KiCad project lives in the grumat/glossy-msp430 repository on GitHub; these links point at the commit this page was built from.

BluePill-BMP: common questions

What microcontroller does the BluePill-BMP use?

The BluePill-BMP is built around the AD8531ARTZ, from the STM32 family.

How big is the BluePill-BMP PCB?

The BluePill-BMP measures 70 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BluePill-BMP?

23 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BluePill-BMP design files?

From the grumat/glossy-msp430 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the BluePill-BMP design in my own project?

Yes, under the terms of its GPL-2.0 license, which grumat chose for the repository.
