STLink-Adapter PCB layout, top view — open source TI MSP430/CC board by grumat
Simulate this board

About the STLink-Adapter PCB

STLink-Adapter is an open source TI MSP430/CC PCB design by grumat, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 29.2 × 26.7 mm, with 7 components from 7 distinct parts.

Its main chip is the MSP430, from the TI MSP430/CC family. By type, the board carries 3 connectors, 2 capacitors, 1 switch and 1 resistor.

It belongs with the usb & debug tools designs in this gallery.

From the project

Glossy MSP430 - Embedded GDB Debugger for MSP430

This is an adapter currently not in use, that was designed as a resource to migrate Glossy-MSP430 firmware to a regular STLink clone using a fixed 3.3V realm.

The idea behind this future project is to produce an entry level option for those willing to experiment Glossy-MSP430 without the effort to develop hardware prototypes.

This board does not feature any active component, so it is just a solid and compact solution to avoid a bunch of wires.

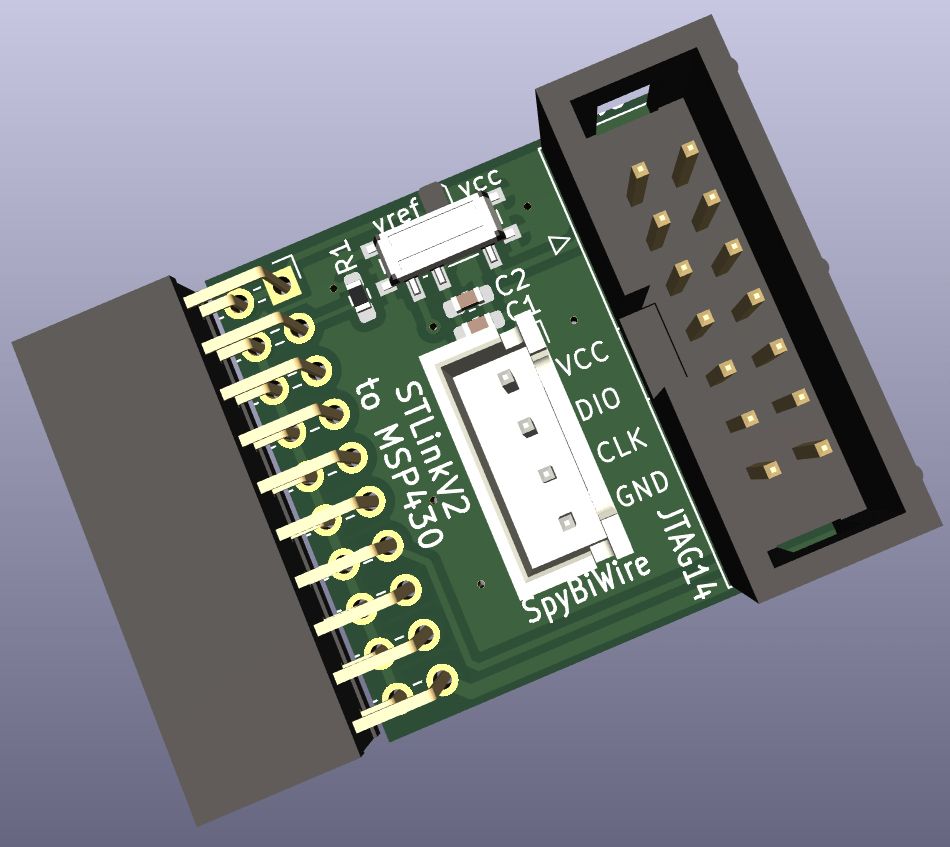

STLink-Adapter, from the project README
From the project README

STLink-Adapter bill of materials (BOM)

7 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STLINK
J1
1
SpiBiWire
J2
1
MSP430
J3
1
VCC
SW1
1
100NF
100n
C1
1
10UF
10µ
C2
1
47K
10K
R1
