About the BlackPill-BMP PCB

BlackPill-BMP is an open source PCB design by grumat, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 72.5 × 59.7 mm, with 41 components from 28 distinct parts.

Other key parts include the BlueAndBlackPill, AD8531ARTZ, 74LVC2T45DC, 74LS125 and SRV05-4. By type, the board carries 12 capacitors, 10 connectors, 10 resistors, 7 ICs, 1 fuse and 1 diode.

It belongs with the usb & debug tools designs in this gallery.

From the project

Glossy MSP430 - Embedded GDB Debugger for MSP430

This prototype board replaces the STM32 Bluepill proto-board as a result of the chip crisis started on early 20's, which caused a overwhelming cases of STM32F103 clones and counterfeits.

For the development of the project we need access to the hardware pins and interfaces that realizes our project. So, one of the easiest way to go is the STM32 Blue and Black Pill prototyping board. This board is based on one of the two existing options: The STM32 BluePill and the STM32 BlackPill boards, easily found on eShops.

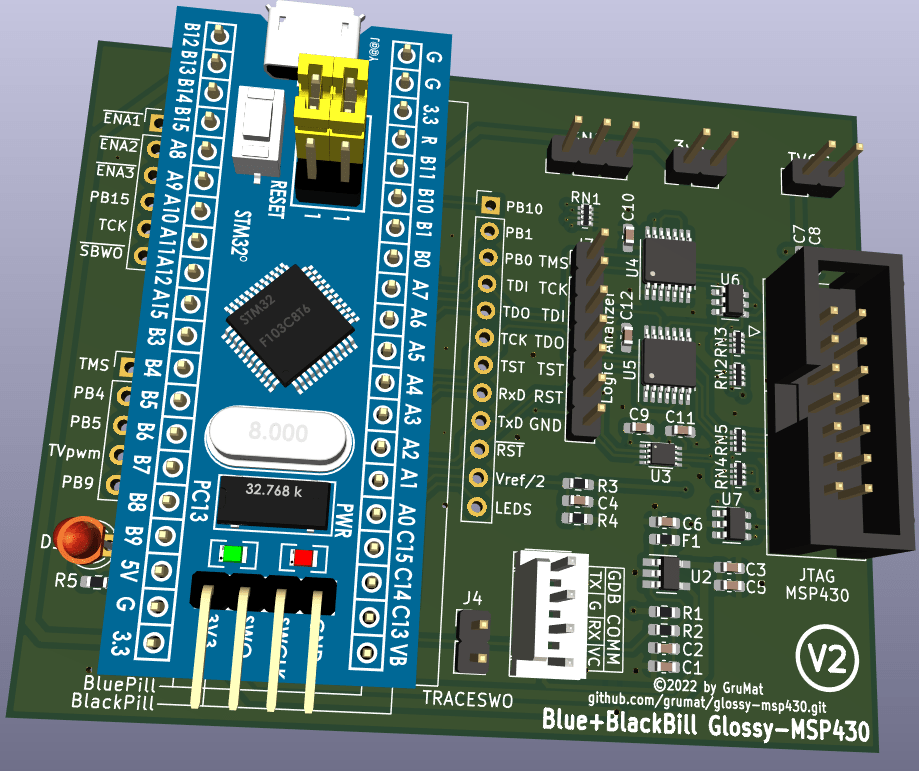

BlackPill-BMP, from the project README
From the project README

Main components on the BlackPill-BMP

BlueAndBlackPillAD8531ARTZ74LVC2T45DC74LS125SRV05-4

BlackPill-BMP bill of materials (BOM)

41 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BlueAndBlackPill
U1
1
AD8531ARTZ
U2
1
74LVC2T45DC
U3
2
74LS125
U4, U5
2
SRV05-4
U6, U7
1
JTAG
J1
1
VCC
J2
1
GND
J3
1
SWO
J4
1
GDB_COMM
J5
1
TVCC
J6
1
LogicAna
J7
1
Conn_01x06_Male
J8
1
Conn_01x05_Male
J9
1
Conn_01x12_Male
J10
1
0603L010YR
F1
1
LED
D1
3
100NF
10uF
C1, C5, C6
1
10UF
1nF
C2
2
10UF
100nF
C3, C7
Show 8 more
QtyPartRefs
1
1NF
100nF
C4
1
10UF
10uF
C8
4
100NF
100nF
C9, C10, C11, C12
2
47K
R1, R2
2
4K7
R3, R4
1
150
1K
R5
3
10K
47k
RN1, RN2, RN4
2
100
RN3, RN5

BlackPill-BMP design files

The KiCad project lives in the grumat/glossy-msp430 repository on GitHub; these links point at the commit this page was built from.

BlackPill-BMP: common questions

How big is the BlackPill-BMP PCB?

The BlackPill-BMP measures 72.5 × 59.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BlackPill-BMP?

41 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the BlackPill-BMP design files?

From the grumat/glossy-msp430 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the BlackPill-BMP design in my own project?

Yes, under the terms of its GPL-2.0 license, which grumat chose for the repository.
