StickForm
About the StickForm PCB
StickForm is an open source STM32 PCB design by grumat, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 51.5 × 20 mm, with 60 components from 37 distinct parts.
Its main chip is the AD8531ARTZ, from the STM32 family. Other key parts include the SRV05-4, 74LVC2T45DC and 74LVC2G125. By type, the board carries 28 capacitors, 12 resistors, 11 ICs, 3 connectors, 3 diodes and 1 crystal.
It belongs with the usb & debug tools designs in this gallery.
From the project
Glossy MSP430 - Embedded GDB Debugger for MSP430
This manual describes the use and the features of the Glossy MSP430 debug probe for MSP430™ microcontrollers (MCUs). It includes information about the debugger probe hardware and software. It documents frequently asked questions on how to enable and disable certain features.

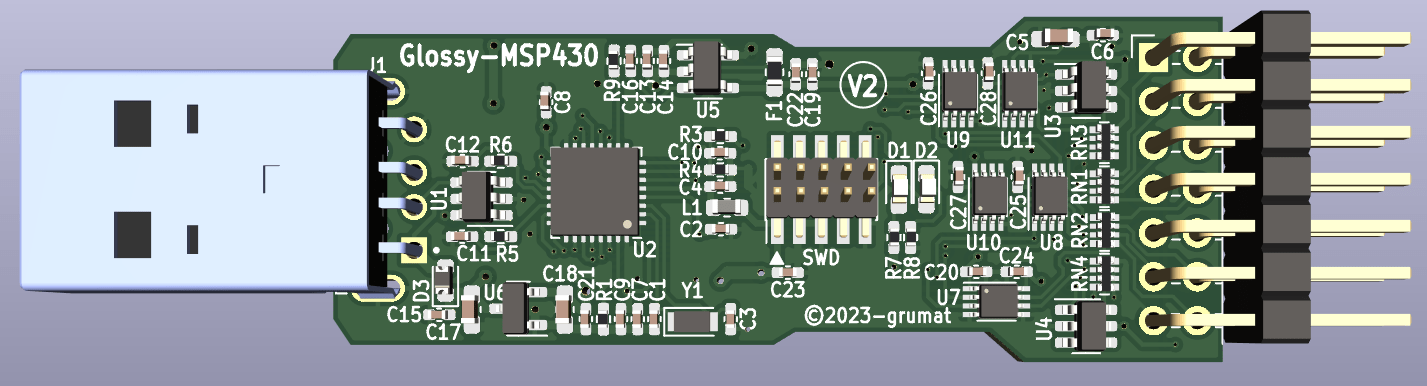

The Glossy MSP430 (see picture below) is a powerful debug probe for application development supporting all MSP430 microcontrollers. The Glossy MSP430 provides a USB interface to program and debug the MSP430 MCUs in-system through the JTAG interface or the pin-saving Spy-Bi-Wire (2-wire JTAG) protocol. Furthermore, the…
Main components on the StickForm
StickForm bill of materials (BOM)
60 components, 37 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | SRV05-4 | SOT-23-6 | U1, U4 |
| 1 | AD8531ARTZ STM32L432KBU6 | QFN-32-1EP_5x5mm_P0.5mm_EP3.45x3.45mm | U2 |
| 1 | 74LVC2T45DC SRV05-4 | SOT-23-6 | U3 |
| 1 | AD8531ARTZ | SOT-23-5 | U5 |
| 1 | SRV05-4 ME6211A33M3G-N | SOT-23 | U6 |
| 1 | SRV05-4 74AVCH2T45DC | VSSOP-8_2.3x2mm_P0.5mm | U7 |
| 4 | 74LVC2G125 | VSSOP-8_2.3x2mm_P0.5mm | U8, U9, U10, U11 |
| 1 | 32768 7pF | Crystal_SMD_2012-2Pin_2.0x1.2mm_HandSoldering | Y1 |
| 1 | 48037-0001 | MOLEX_48037-0001 | J1 |
| 1 | JTAG | PinHeader_2x07_P2.54mm_Horizontal | J2 |
| 1 | SWD | PinHeader_2x05_P1.27mm_Vertical_SMD | J3 |
| 1 | 0603L010YR | Fuse_0603_1608Metric_Pad1.05x0.95mm_HandSolder | F1 |
| 1 | RED | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D1 |
| 1 | GREEN | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D2 |
| 1 | CDBURT0530LL-HF | D_0603_1608Metric | D3 |
| 1 | 1k8 | L_0603_1608Metric | L1 |
| 1 | 100NF 4.7pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C1 |
| 3 | 10UF 100nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C2, C7, C8 |
| 1 | 10UF 4.7pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C3 |
| 1 | 1NF 100nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C4 |
Show 17 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100NF 10uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C5 |
| 2 | 100NF 100nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C6, C10 |
| 1 | 100NF 10uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C9 |
| 2 | 100NF 22pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C11, C12 |
| 2 | 10uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C13, C22 |
| 10 | 100nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C14, C15, C20, C21, C23, C24, C25, C26 +2 |
| 2 | 220nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C16, C19 |
| 2 | 10uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C17, C18 |
| 1 | 47K 100K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R1 |
| 2 | 4K7 4k7 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R3, R4 |
| 1 | 150 22 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R5 |
| 1 | 10K 22 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R6 |
| 2 | 1K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R7, R8 |
| 1 | 4k7 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R9 |
| 2 | 10K 100 | R_Array_Convex_4x0402_hand_soldered | RN1, RN2 |
| 1 | 47k | R_Array_Convex_4x0402_hand_soldered | RN3 |
| 1 | 10K 47k | R_Array_Convex_4x0402_hand_soldered | RN4 |
StickForm design files
The KiCad project lives in the grumat/glossy-msp430 repository on GitHub; these links point at the commit this page was built from.
StickForm: common questions
What microcontroller does the StickForm use?
The StickForm is built around the AD8531ARTZ, from the STM32 family.
How big is the StickForm PCB?
The StickForm measures 51.5 × 20 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the StickForm?
60 components, from 37 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the StickForm design files?
From the grumat/glossy-msp430 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the StickForm design in my own project?
Yes, under the terms of its GPL-2.0 license, which grumat chose for the repository.
Can I test firmware for the StickForm without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
