REVIUNG33

gtips·reviung·reviung33/pcb/reviung33.kicad_pcb

REVIUNG33 PCB layout, top view — open source AVR/Arduino board by gtips

About the REVIUNG33 PCB

REVIUNG33 is an open source AVR/Arduino PCB design by gtips, published on GitHub under the MIT license. It is a 2-layer board measuring 197 × 75.2 mm, with 86 components from 14 distinct parts.

Its main chip is the ATMEGA32U4-AU, from the AVR/Arduino family. By type, the board carries 33 switches, 33 diodes, 7 capacitors, 5 inductors, 4 resistors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

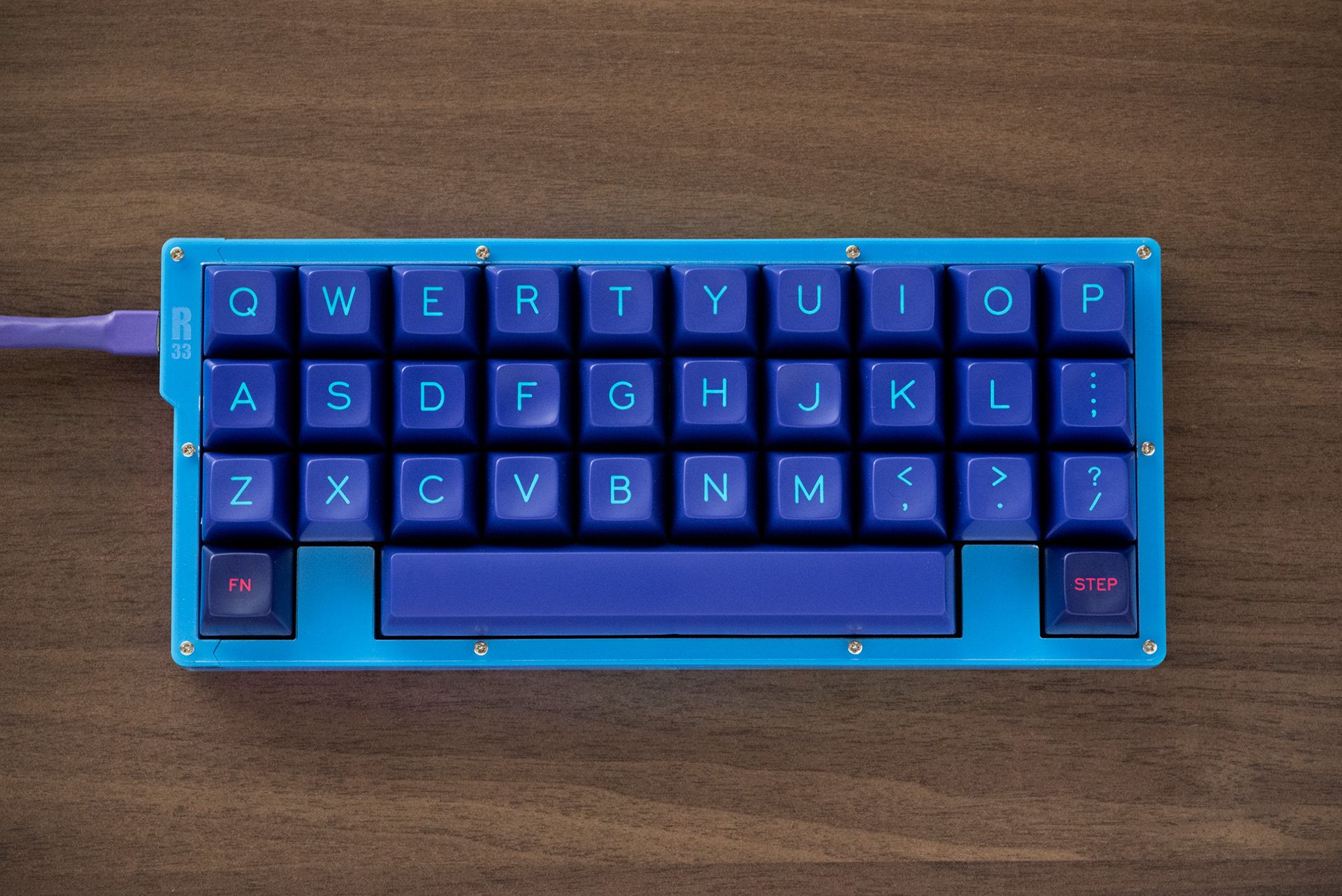

The REVIUNG33 is 33-key ortholinear keyboard.

REVIUNG33, from the project README
From the project README

Main components on the REVIUNG33

ATMEGA32U4-AU

REVIUNG33 bill of materials (BOM)

86 components, 14 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA32U4-AU
ATmega32U4-AU
U1
1
16MHZ
16MHz
Y1
1
MOLEX_47642-0001
J1
1
500MA
500mA
F1
32
SW_PUSH
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +24
1
SW_PUSH
SW32
33
1N4148
D
D1, D2, D3, D4, D5, D6, D7, D8 +25
5
WS2812B
L1, L2, L3, L4, L5
2
22PF
22pF
C1, C2
1
1UF
1uF
C3
3
0.1UF
0.1uF
C4, C5, C6
1
10UF
10uF
C7
2
22
R1, R2
2
10k
R3, R4

REVIUNG33 design files

The KiCad project lives in the gtips/reviung repository on GitHub; these links point at the commit this page was built from.

REVIUNG33: common questions

What microcontroller does the REVIUNG33 use?

The REVIUNG33 is built around the ATMEGA32U4-AU, from the AVR/Arduino family.

How big is the REVIUNG33 PCB?

The REVIUNG33 measures 197 × 75.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the REVIUNG33?

86 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the REVIUNG33 design files?

From the gtips/reviung repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the REVIUNG33 design in my own project?

Yes, under the terms of its MIT license, which gtips chose for the repository.

Can I test firmware for the REVIUNG33 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
