REVIUNG39

gtips·reviung·reviung39_Mk-II/pcb/reviung39.kicad_pcb

REVIUNG39 PCB layout, top view — open source AVR/Arduino board by gtips
Simulate this board

About the REVIUNG39 PCB

REVIUNG39 is an open source AVR/Arduino PCB design by gtips, published on GitHub under the MIT license. It is a 2-layer board measuring 253.8 × 107.2 mm, with 91 components from 7 distinct parts.

Its main chip is the ATMEGA32U4-AU, from the AVR/Arduino family. By type, the board carries 39 switches, 39 diodes, 11 inductors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

The REVIUNG39 Mk-II is 39-key column staggered keyboard.

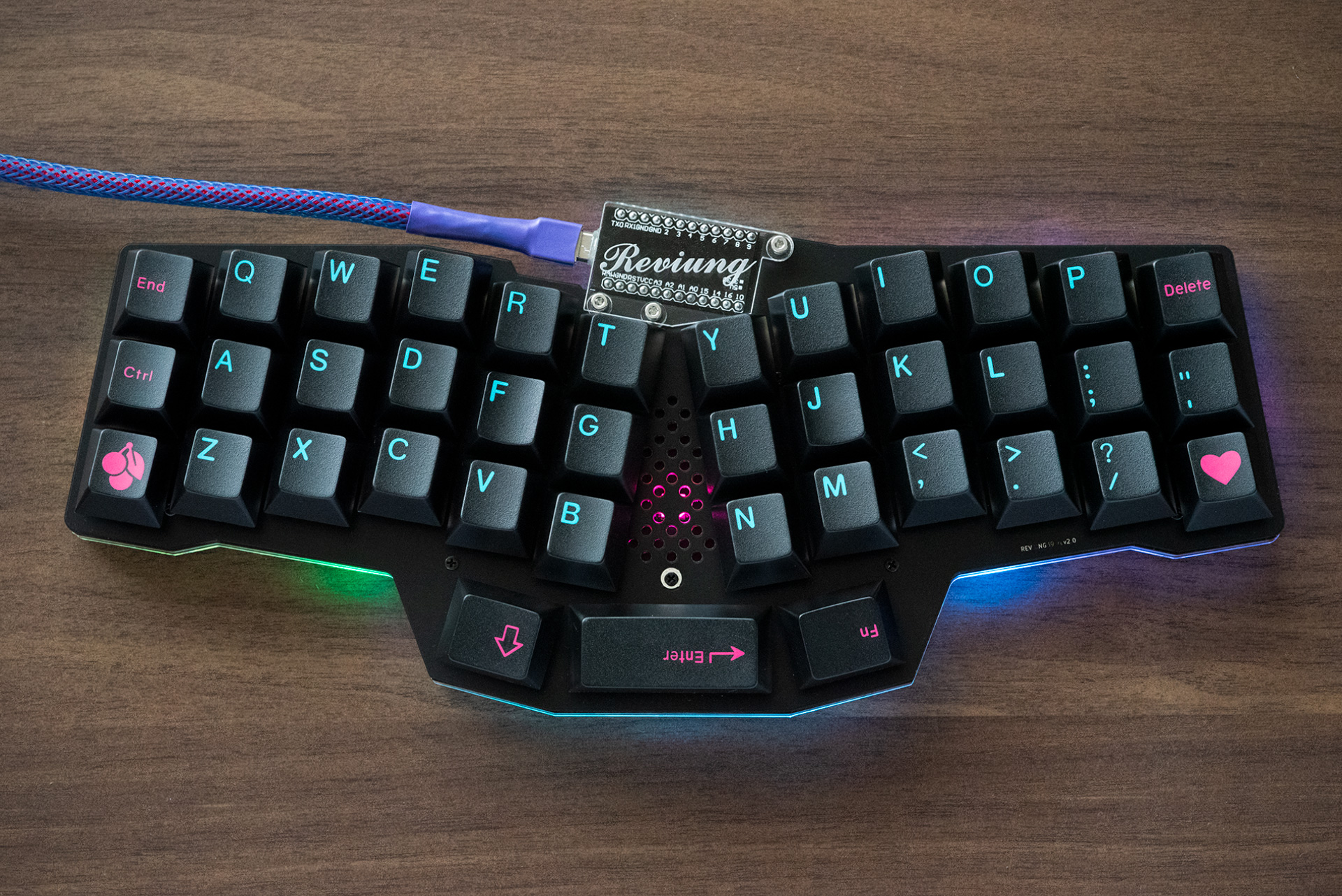

REVIUNG39, from the project README
From the project README

Main components on the REVIUNG39

ATMEGA32U4-AU

REVIUNG39 bill of materials (BOM)

91 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA32U4-AU
ProMicro
U1
1
SW_PUSH
RESET1
38
SW_PUSH
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +30
1
SW_2U_PUSH
SW38
33
1N4148
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +25
6
1N4148W
D34, D35, D36, D37, D38, D39
11
WS2812B
L1, L2, L3, L4, L5, L6, L7, L8 +3

REVIUNG39 design files

The KiCad project lives in the gtips/reviung repository on GitHub; these links point at the commit this page was built from.

REVIUNG39: common questions

What microcontroller does the REVIUNG39 use?

The REVIUNG39 is built around the ATMEGA32U4-AU, from the AVR/Arduino family.

How big is the REVIUNG39 PCB?

The REVIUNG39 measures 253.8 × 107.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the REVIUNG39?

91 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the REVIUNG39 design files?

From the gtips/reviung repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the REVIUNG39 design in my own project?

Yes, under the terms of its MIT license, which gtips chose for the repository.

Can I test firmware for the REVIUNG39 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
