REVIUNG34 PCB layout, top view — open source AVR/Arduino board by gtips

About the REVIUNG34 PCB

REVIUNG34 is an open source AVR/Arduino PCB design by gtips, published on GitHub under the MIT license. It is a 2-layer board measuring 214.8 × 107.2 mm, with 89 components from 10 distinct parts.

Its main chip is the ATMEGA32U4-AU, from the AVR/Arduino family. By type, the board carries 35 switches, 34 diodes, 9 LEDs and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

The REVIUNG34 is 34-key (or 33-key) column staggered keyboard.

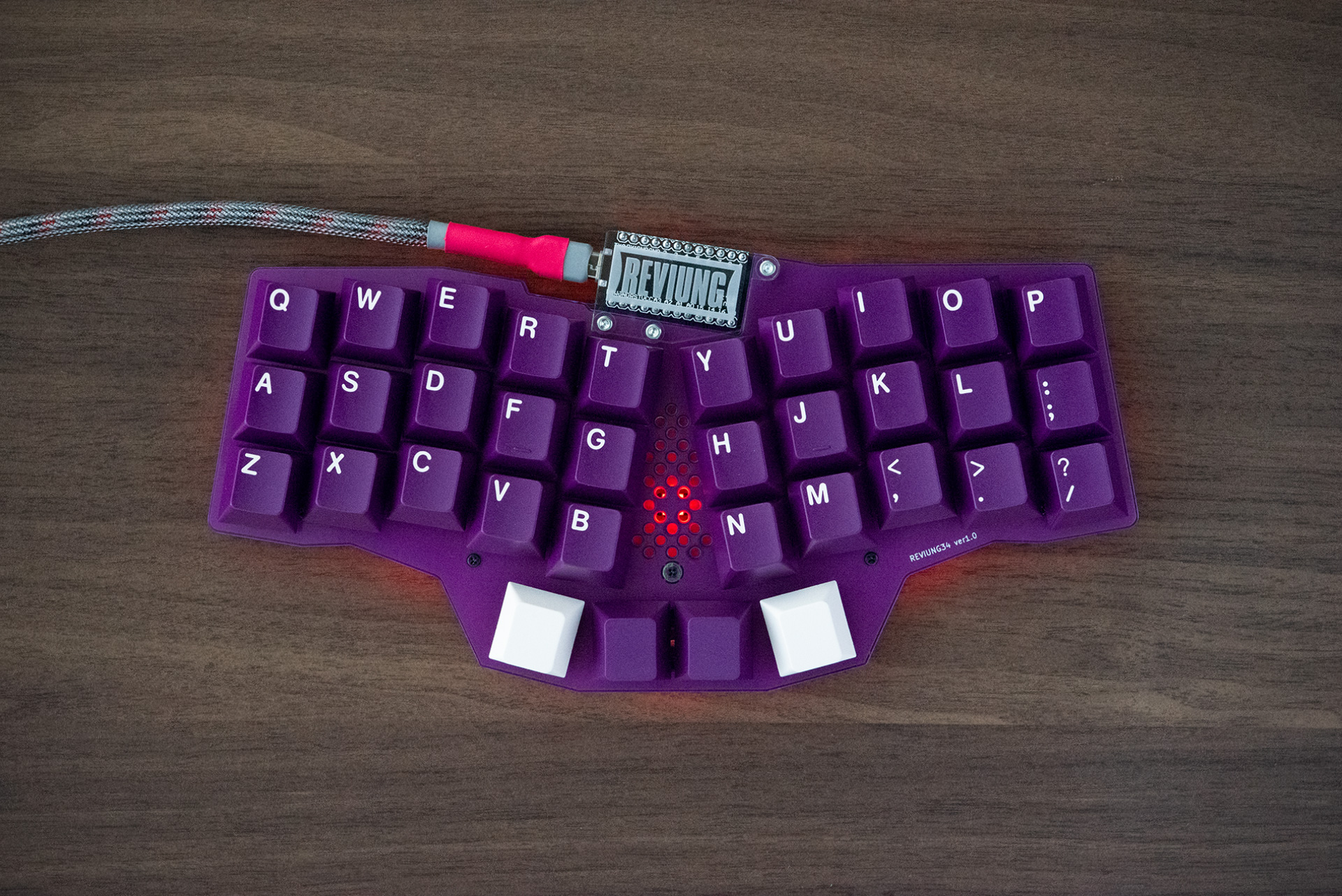

REVIUNG34, from the project README
From the project README

Main components on the REVIUNG34

ATMEGA32U4-AU

REVIUNG34 bill of materials (BOM)

89 components, 10 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA32U4-AU
ProMicro
U1
9
HOLE_4.2mm
H1, H2, H3, H4, H5, H6, H7, H8 +1
1
SW_PUSH
RESET1
32
SW_PUSH
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +24
1
SW_PUSH
SW17
1
SW_PUSH
SW18
1
SW_PUSH
SW35
9
WS2812B
RGB1, RGB2, RGB3, RGB4, RGB5, RGB6, RGB7, RGB8 +1
33
1N4148
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +25
1
1N4148W
D34

REVIUNG34 design files

The KiCad project lives in the gtips/reviung repository on GitHub; these links point at the commit this page was built from.

REVIUNG34: common questions

What microcontroller does the REVIUNG34 use?

The REVIUNG34 is built around the ATMEGA32U4-AU, from the AVR/Arduino family.

How big is the REVIUNG34 PCB?

The REVIUNG34 measures 214.8 × 107.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the REVIUNG34?

89 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the REVIUNG34 design files?

From the gtips/reviung repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the REVIUNG34 design in my own project?

Yes, under the terms of its MIT license, which gtips chose for the repository.

Can I test firmware for the REVIUNG34 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
