Reviung39s

gtips·reviung·reviung39s/pcb/reviung39s.kicad_pcb

Reviung39s PCB layout, top view — open source AVR/Arduino board by gtips
Simulate this board

About the Reviung39s PCB

Reviung39s is an open source AVR/Arduino PCB design by gtips, published on GitHub under the MIT license. It is a 2-layer board measuring 247.9 × 104.5 mm, with 81 components from 7 distinct parts.

Its main chip is the ATMEGA32U4-AU, from the AVR/Arduino family. By type, the board carries 39 switches, 39 diodes, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

The REVIUNG39S is 39-key column staggered keyboard. Solder through hole mounting version.

The REVIUNG39S is 39-key column staggered keyboard. Solder through hole mounting version.

PCB --- 1 piece Top plate [acrylic] --- 1 sheet Bottom plate --- 1 piece ProMicro protection plate --- 1 Acrylic spacer --- 2 pieces Spacer --- 11 pieces M2 screw 5mm --- 23 pcs M2 screw 10mm --- 2 pcs M2 nut --- 3 pcs Rubber feet --- 5 pcs Diode [1N4148] --- 39 pieces Tact switch --- 1 piece Stabilizer --- 1 piece

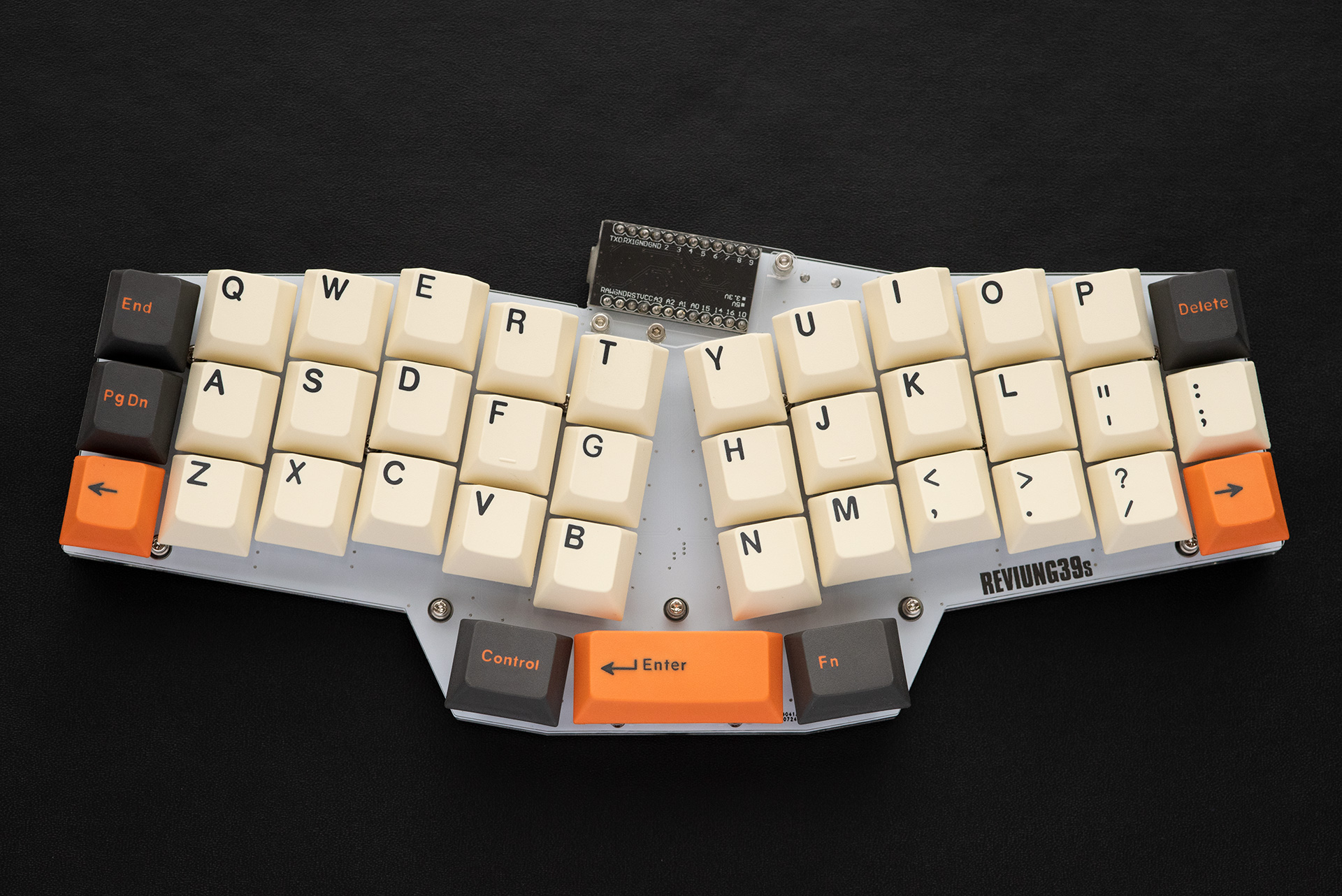

Reviung39s, from the project README
From the project README

Main components on the Reviung39s

ATMEGA32U4-AU

Reviung39s bill of materials (BOM)

81 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA32U4-AU
ProMicro
U1
1
Conn_01x03_Shielded
J1
1
SW_PUSH
RESET1
38
SW_PUSH
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +30
1
SW_2U_PUSH
SW38
33
1N4148
D
D1, D2, D3, D4, D5, D6, D7, D8 +25
6
D
D34, D35, D36, D37, D38, D39

Reviung39s design files

The KiCad project lives in the gtips/reviung repository on GitHub; these links point at the commit this page was built from.

Reviung39s: common questions

What microcontroller does the Reviung39s use?

The Reviung39s is built around the ATMEGA32U4-AU, from the AVR/Arduino family.

How big is the Reviung39s PCB?

The Reviung39s measures 247.9 × 104.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Reviung39s?

81 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Reviung39s design files?

From the gtips/reviung repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Reviung39s design in my own project?

Yes, under the terms of its MIT license, which gtips chose for the repository.

Can I test firmware for the Reviung39s without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
