WLED All in one ESP32 Controller

Hasenpups·WLED_All-in-one_ESP32_Controller·KiCad/WLED_All-in-one_ESP32_Controller.kicad_pcb

WLED All in one ESP32 Controller PCB layout, top view — open source ESP32 board by Hasenpups
Simulate this board

About the WLED All in one ESP32 Controller PCB

WLED All in one ESP32 Controller is an open source ESP32 PCB design by Hasenpups, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 49.3 × 30.5 mm, with 21 components from 15 distinct parts.

Its main chip is the ESP32-WROOM-32, from the ESP32 family. Other key parts include the AMS1117-3.3 and TXS0102DCU. By type, the board carries 7 capacitors, 5 connectors, 5 resistors, 3 ICs and 1 diode.

It belongs with the displays & leds designs in this gallery.

From the project

Shield: [![CC BY-NC-SA 4.0][cc-by-nc-sa-shield]][cc-by-nc-sa]

Shield: [![CC BY-NC-SA 4.0][cc-by-nc-sa-shield]][cc-by-nc-sa]

This work is licensed under a [Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License][cc-by-nc-sa].

[cc-by-nc-sa]: http://creativecommons.org/licenses/by-nc-sa/4.0/ [cc-by-nc-sa-image]: https://licensebuttons.net/l/by-nc-sa/4.0/88x31.png [cc-by-nc-sa-shield]: https://img.shields.io/badge/License-CC%20BY--NC--SA%204.0-lightgrey.svg

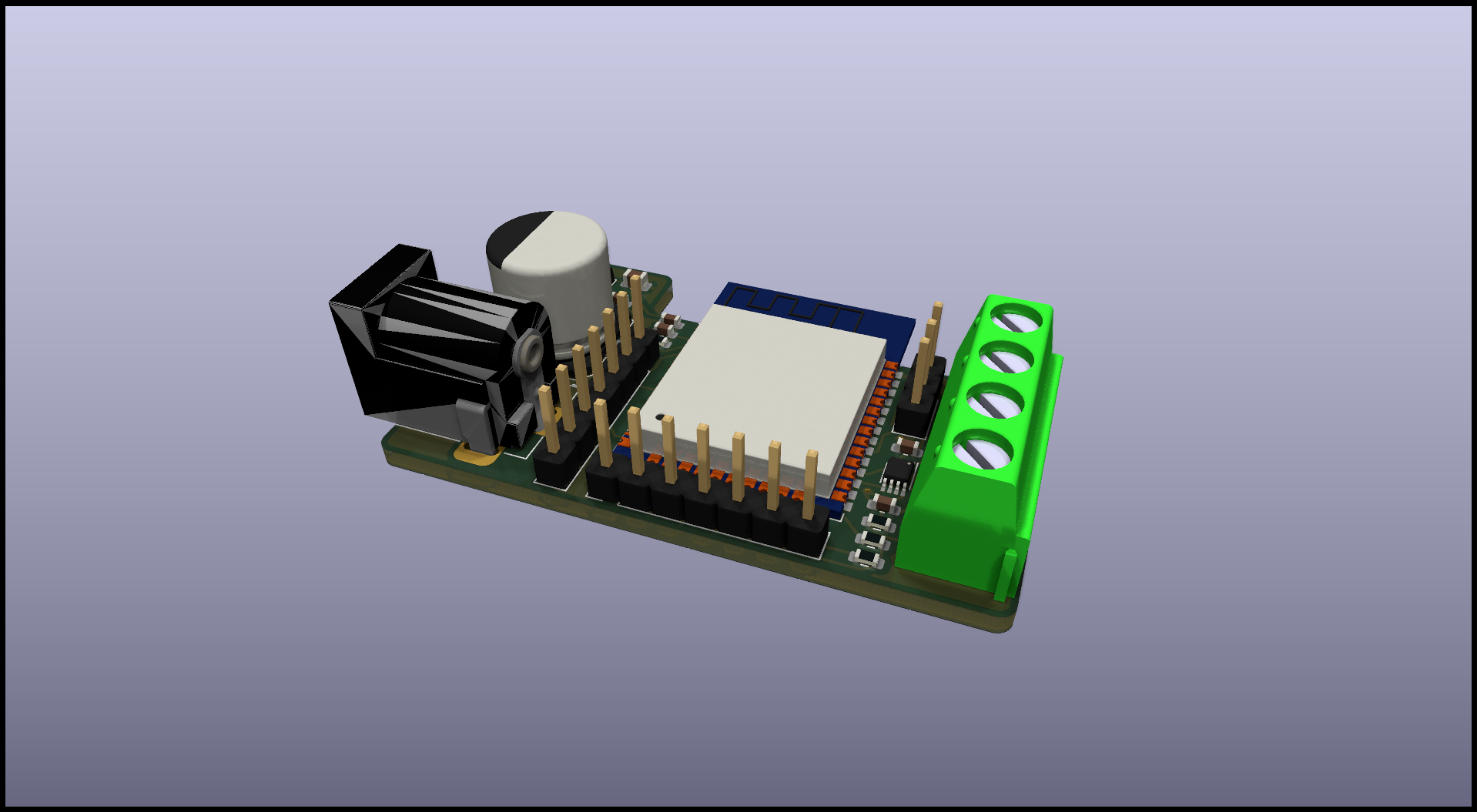

WLED All in one ESP32 Controller, from the project README
From the project README

Main components on the WLED All in one ESP32 Controller

AMS1117-3.3ESP32-WROOM-32TXS0102DCU

WLED All in one ESP32 Controller bill of materials (BOM)

21 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
U1
1
ESP32-WROOM-32
U2
1
TXS0102DCU
U3
2
CONN_01X07_FEMALE
Conn_01x07_Female
J1, J5
1
Barrel_Jack
J2
1
SCREW_TERMINAL_01X04
Screw_Terminal_01x04
J3
1
CONN_01X03_FEMALE
Conn_01x03_Female
J4
1
LED
D1
1
1000µF
C1
2
C19702
10µF
C2, C4
1
C16780
47µF
C3
3
100NF
100nF
C5, C6, C7
3
10K
R1, R2, R3
1
2.7K
R4
1
330
R5

WLED All in one ESP32 Controller design files

The KiCad project lives in the Hasenpups/WLED_All-in-one_ESP32_Controller repository on GitHub; these links point at the commit this page was built from.

WLED All in one ESP32 Controller: common questions

What microcontroller does the WLED All in one ESP32 Controller use?

The WLED All in one ESP32 Controller is built around the ESP32-WROOM-32, from the ESP32 family.

How big is the WLED All in one ESP32 Controller PCB?

The WLED All in one ESP32 Controller measures 49.3 × 30.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WLED All in one ESP32 Controller?

21 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the WLED All in one ESP32 Controller design files?

From the Hasenpups/WLED_All-in-one_ESP32_Controller repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the WLED All in one ESP32 Controller design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the WLED All in one ESP32 Controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
