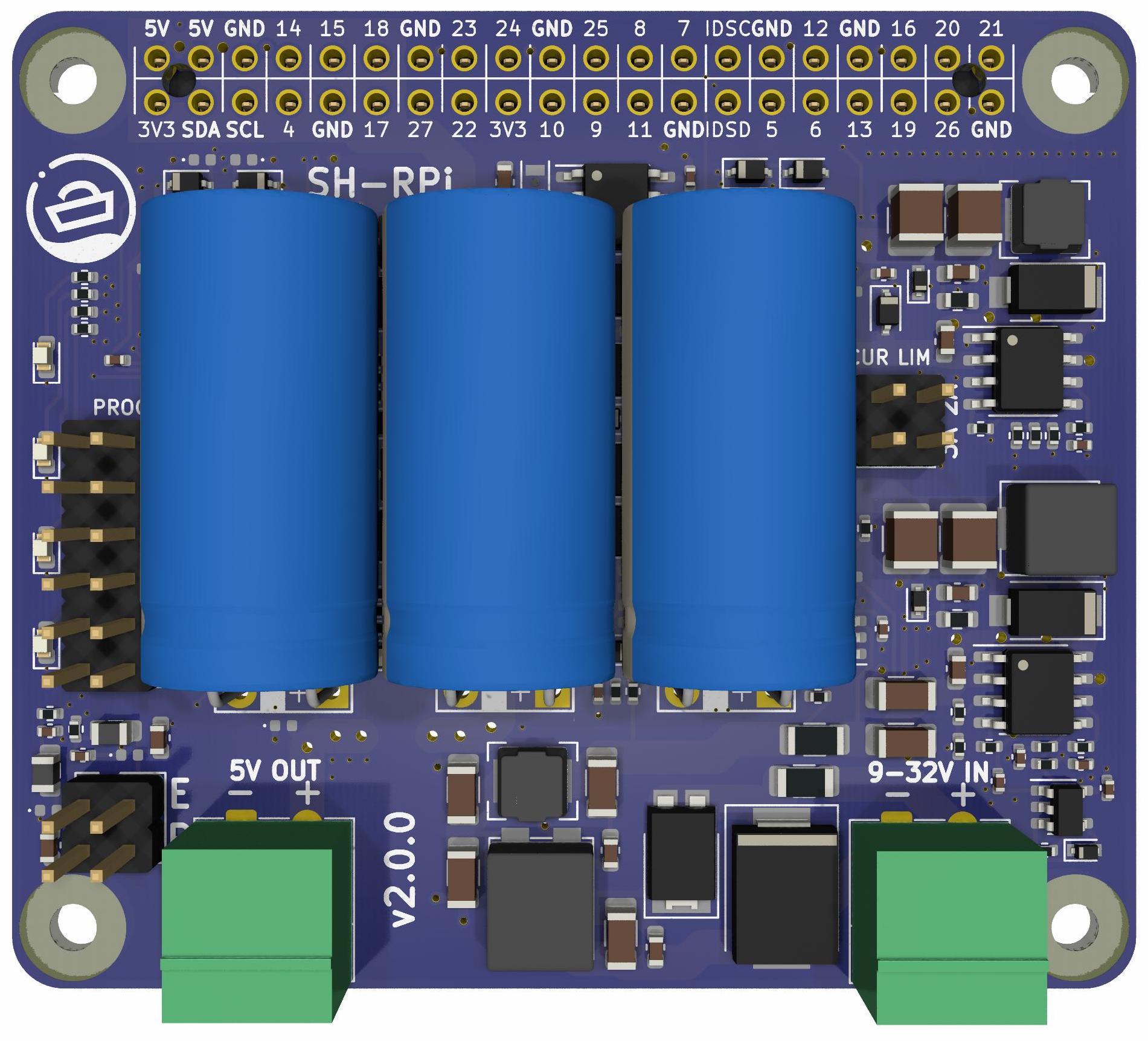

SH-RPi hardware PCB layout, top view — open source AVR/Arduino board by hatlabs
Simulate this board

About the SH-RPi hardware PCB

SH-RPi hardware is an open source AVR/Arduino PCB design by hatlabs, published on GitHub under the CC-BY-4.0 license. It is a 4-layer board measuring 65 × 56.5 mm, with 153 components from 78 distinct parts.

Its main chip is the ATTINY1616-MNR, from the AVR/Arduino family. Other key parts include the RT6365, COS1333TR, LMV321, PCF8563T and HT7533-1. By type, the board carries 55 resistors, 39 capacitors, 26 diodes, 10 ICs, 7 connectors and 6 transistors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Sailor Hat for Raspberry Pi hardware design files

The Sailor Hat for Raspberry Pi (SH-RPi) is a versatile power management board designed for the Raspberry Pi and similar single-board computers. With the SH-RPi connected, you can create deeply integrated servers that shut down safely when power is turned off and wake up automatically when power is restored.

SH-RPi supports all Raspberry Pi models with a 40-pin GPIO header (every model since the Pi 1 Model B+). Additionally, it is compatible with Raspberry Pi Compute Module 4 boards and other single-board computers that have a 40-pin Raspberry Pi-compatible GPIO header or an external I2C…

SH-RPi hardware, from the project README
From the project README

Main components on the SH-RPi hardware

RT6365COS1333TRLMV321ATTINY1616-MNRPCF8563THT7533-1

SH-RPi hardware bill of materials (BOM)

153 components, 78 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
RT6365
U201, U301
1
COS1333TR
U302
4
LMV321
LMV321-TR
U303, U1001, U1002, U1003
1
ATTINY1616-MNR
ATtiny1616-MNR
U401
1
PCF8563T
U801
1
HT7533-1
U901
2
MMBT5551
Q301, Q302
1
LBSS84LT1G
Q303
3
SS8050
Q1001, Q1002, Q1003
1
X1A000061000200
Y801
2
CONN_01X02
Conn_01x02
J101, J502
1
CONN_02X02
Conn_02x02
J301
1
CONN_02X02_TOP_BOTTOM
Conn_02x02_Top_Bottom
J401
1
CONN_02X06_ODD_EVEN
Conn_02x06_Odd_Even
J402
1
RASPBERRY_PI_2_3
Raspberry_Pi_2_3
J501
1
CONN_01X03
Conn_01x03
J801
1
12T.40000063AG12S1B02
F701
1
Open
JP501
1
Bridged
JP801
3
1N4148WT
D201, D302, D305
Show 58 more
QtyPartRefs
1
MSK340A
D202
2
BZT52C3V3S
D301, D304
1
SS56FL
D303
5
ESD5451N
D401, D402, D501, D503, D505
6
1N5819WS
D502, D504, D901, D1001, D1002, D1003
4
C434422
WHITE LED
D506, D507, D508, D509
1
5.0SMDJ33CA
D701
1
10S45SP
D702
2
1N4148WS
D801, D802
2
GZ2012D601TF
FB401, FB402
2
FXL0420-1R0-M
L201, L702
1
SLO0530H3R3MTT
L301
1
PCAQ7060MW-102
L701
1
4.7UF
4.7uF
C201
1
3.3NF
3.3nF
C202
2
100NF
100nF
C203, C308
2
C77101
47uF 6.3V
C204, C205
6
C13585
10uF 50V
C301, C302, C702, C703, C704, C705
1
C15849
1uF 50V
C303
1
470PF
470pF
C304
10
100NF
100nF
C305, C306, C311, C312, C403, C406, C803, C1001 +2
1
220NF
220nF
C307
2
C77101
47uF 16V
C309, C310
2
C1663
33pF 50V
C401, C402
2
33PF
33pF
C404, C405
1
C14663
100nF 50V
C701
1
1UF
1uF
C801
1
C1653
22pF C0G
C802
1
C52923
1uF 16V
C901
1
C15525
10uF 6.3V
C902
3
CAS SCAP 3.0V20F
C1004, C1005, C1006
1
51K
51k
R201
2
5.1R
R202, R309
1
27K
27k
R203
2
68K
68k
R204, R307
1
12K
12k
R205
6
1k
R206, R408, R501, R502, R503, R504
1
10M
10m
R301
2
100K
100k
R302, R410
4
10K
10k
R303, R311, R407, R409
7
300K
300k
R304, R1004, R1007, R1010, R1014, R1016, R1018
1
510R
R305
1
47k
R306
3
100R
R308, R405, R406
1
1.5K
1.5k
R310
1
470K
470k
R312
1
47K
47k
R313
1
3.3K
3.3k
R314
1
7.5K
7.5k
R315
1
3.9K
3.9k
R316
1
56K
56k
R401
4
150K
150k
R402, R1005, R1008, R1011
1
20K
20k
R403
1
2k
R404
1
C22936
1R
R701
3
33K
33k
R1001, R1002, R1003
3
120K
120k
R1006, R1009, R1012
3
330K
330k
R1013, R1015, R1017

SH-RPi hardware design files

The KiCad project lives in the hatlabs/SH-RPi-hardware repository on GitHub; these links point at the commit this page was built from.

SH-RPi hardware: common questions

What microcontroller does the SH-RPi hardware use?

The SH-RPi hardware is built around the ATTINY1616-MNR, from the AVR/Arduino family.

How big is the SH-RPi hardware PCB?

The SH-RPi hardware measures 65 × 56.5 mm, has 4 copper layers and is 1.5896 mm thick.

How many components are on the SH-RPi hardware?

153 components, from 78 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SH-RPi hardware design files?

From the hatlabs/SH-RPi-hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SH-RPi hardware design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which hatlabs chose for the repository.

Can I test firmware for the SH-RPi hardware without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
