About the Klangorium PCB
Klangorium is an open source PCB design by hexagon5un, published on GitHub. It is a 2-layer board measuring 200 × 100 mm, with 152 components from 48 distinct parts.
Other key parts include the 40106, 4070, 4069, 4051 and 4015. By type, the board carries 42 connectors, 32 capacitors, 30 resistors, 22 diodes, 8 ICs and 2 jumpers.
From the project
Hardware and tutorials for the Hackaday / Logic Noise Klangorium demo board
Over on Hackaday, I've been writing a series of articles on building up synthesizers out of 4000-series CMOS logic chips. It's been great fun building them up on an breadboard and then tearing them back down, but after a while it's time to do something more permanent.

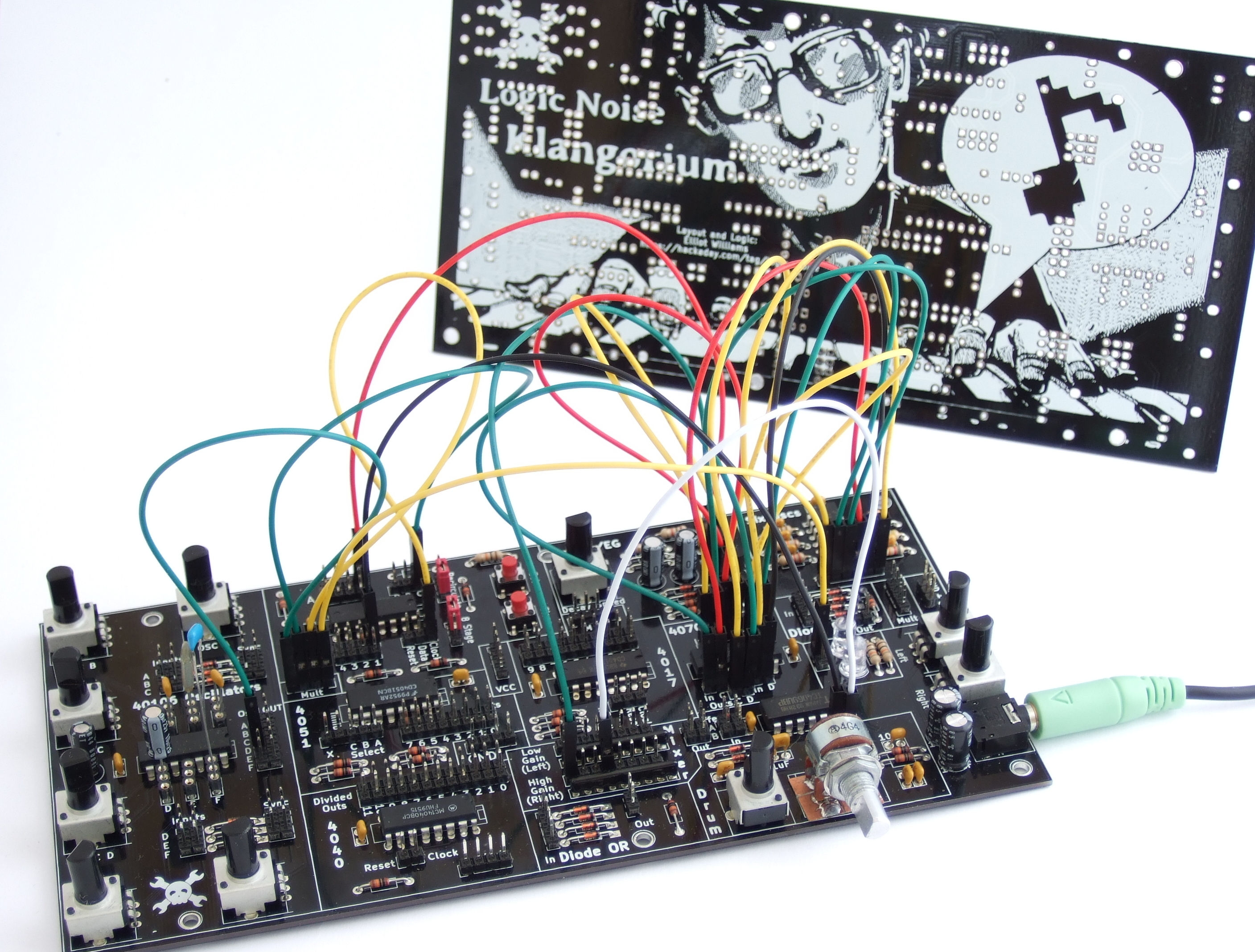

The result is this here Klangorium board.
For a tutorial on how to use it, please head over to the Hackaday.io page, or just start working through the Logic Noise series from the beginning. You'll find that it covers one module per session, and you'll learn a hell of a lot about ghetto synthesis and logic chips if you do.
Main components on the Klangorium
Klangorium bill of materials (BOM)
152 components, 48 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 40106 | DIP-14__300_ELL | U1, U3 |
| 1 | 4070 | DIP-14__300_ELL | U2 |
| 1 | 4069 | DIP-14__300_ELL | U4 |
| 1 | 4051 | DIP-16__300_ELL | U5 |
| 1 | 4015 | DIP-16__300_ELL | U6 |
| 1 | 4017 | DIP-16__300_ELL | U7 |
| 1 | 4040 | DIP-16__300_ELL | U8 |
| 1 | LM3904 | TO92 | Q1 |
| 1 | ss_3_header | connector_ss_3pin | CONN1 |
| 1 | JACK_TRS_6PINS | stereo_jack | J1 |
| 4 | CONN_02X03 | Pin_Header_Straight_2x03 | P1, P8, P21, P22 |
| 11 | CONN_01X02 | Pin_Header_Straight_1x02 | P2, P14, P19, P23, P25, P27, P28, P29 +3 |
| 2 | CONN_02X02 | Pin_Header_Straight_2x02 | P3, P5 |
| 1 | CONN_02X06 | Pin_Header_Straight_2x06 | P4 |
| 1 | 4017 Outs | Pin_Header_Straight_2x10 | P6 |
| 2 | CONN_01X08 | Pin_Header_Straight_1x08 | P7, P9 |
| 3 | CONN_01X03 | Pin_Header_Straight_1x03 | P10, P13, P32 |
| 1 | CONN_01X05 | Pin_Header_Straight_1x05 | P11 |
| 2 | CONN_02X04 | Pin_Header_Straight_2x04 | P12, P17 |
| 1 | CONN_02X08 | Pin_Header_Straight_2x08 | P15 |
Show 28 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | CONN_01X04 | Pin_Header_Straight_1x04 | P16, P18, P33, P34, P35, P36, P38, P39 |
| 1 | CONN_01X06 | Pin_Header_Straight_1x06 | P20 |
| 2 | CONN_02X01 | Pin_Header_Straight_2x01 | P24, P37 |
| 1 | CONN_02X12 | Pin_Header_Straight_2x12 | P26 |
| 3 | 100k | Potentiometer_9mm_vertical_pcb_mount | DECAY1, RV7, RV8 |
| 2 | JUMPER3 | Socket_Strip_Straight_1x03 | JP1, JP2 |
| 1 | RR8 - 100k | r_pack8 | RR1 |
| 1 | RR8 - 1M | r_pack8 | RR2 |
| 7 | POT | Potentiometer_9mm_vertical_pcb_mount | RV1, RV2, RV3, RV4, RV6, RV12, RV13 |
| 1 | DUAL_POT | Potentiometer_Alps-RK16-double | RV5 |
| 1 | Set | SW_PUSH_SMALL | SW1 |
| 1 | Clear | SW_PUSH_SMALL | SW2 |
| 20 | D | Diode_DO-35_SOD27_Horizontal_RM10 | D1, D2, D3, D4, D5, D6, D7, D8 +12 |
| 2 | LED | LED-5MM | D21, D22 |
| 6 | C | cap_2+3 | C1, C2, C3, C4, C5, C6 |
| 18 | 0.1uF | C1 | C7, C8, C9, C10, C11, C12, C13, C14 +10 |
| 2 | 1uF | C1 | C15, C19 |
| 1 | 0.01uF | C1 | C16 |
| 3 | 10uF | Elko_vert_11.2x6.3mm_RM2.5 | C20, C21, C22 |
| 2 | 100uF | Elko_vert_11.2x6.3mm_RM2.5 | C31, C32 |
| 19 | 100k | Resistor_Horizontal_RM10mm | R1, R2, R3, R4, R5, R6, R7, R8 +11 |
| 3 | 10k | Resistor_Horizontal_RM10mm | R14, R22, R23 |
| 1 | 33k | Resistor_Horizontal_RM10mm | R15 |
| 1 | 22k | Resistor_Horizontal_RM10mm | R16 |
| 1 | 47k | Resistor_Horizontal_RM10mm | R17 |
| 1 | 56k | Resistor_Horizontal_RM10mm | R18 |
| 1 | 39k | Resistor_Horizontal_RM10mm | R19 |
| 3 | 1k | Resistor_Horizontal_RM10mm | R24, R29, R30 |
Klangorium design files
The KiCad project lives in the hexagon5un/klangorium repository on GitHub; these links point at the commit this page was built from.
Klangorium: common questions
How big is the Klangorium PCB?
The Klangorium measures 200 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Klangorium?
152 components, from 48 distinct parts. The full bill of materials is listed on this page.
Where can I download the Klangorium design files?
From the hexagon5un/klangorium repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Klangorium design in my own project?
The repository has no license, so all rights stay with hexagon5un. Use it as a reference, and ask the author before reusing the design.
