Iris brow

HeyPCB·iris-brow·kicad/iris_brow.kicad_pcb

Iris brow PCB layout, top view — open source board by HeyPCB

About the Iris brow PCB

Iris brow is an open source PCB design by HeyPCB, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 116 × 12 mm, with 16 components from 12 distinct parts.

Other key parts include the VL53L1CXV0FY/1 and APDS-9306-065. By type, the board carries 6 capacitors, 3 resistors, 2 ICs, 2 microphones, 2 test points and 1 connector.

It belongs with the sensors, robotics & motion and audio designs in this gallery.

From the project

Iris Brow: forehead sensor strip of the Iris robot head. VL53L1X distance, APDS-9306 light, two I2S microphones 108 mm apart, touch pads, on a brow-shaped board. 2-layer KiCad 10 board, DRC-clean, fab-ready.

The forehead sensor strip of Iris: a VL53L1X distance sensor for vergence, an APDS-9306 light sensor, two I2S microphones 108 mm apart for sound direction and touch pads, on a brow-shaped board.

Part of Iris, the human-eyed robot head, HeyPCB's open robot boards. Designed end to end with the HeyPCB method on KiCad 10 (headless pipeline, Freerouting 2.4.1); every number below is measured on the files in this repository. Mentions of ./run.sh, docs/rules/, blocks/ or parts/ refer to the heypcb-kicad SDK that produced them.

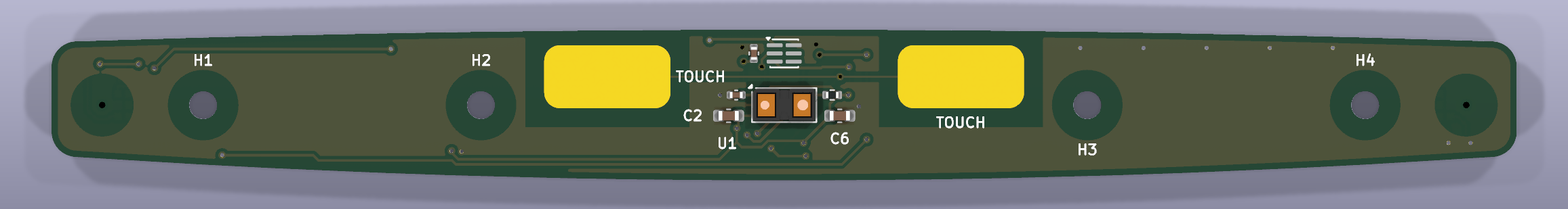

Iris brow, from the project README
From the project README

Main components on the Iris brow

VL53L1CXV0FY/1APDS-9306-065

Iris brow bill of materials (BOM)

16 components, 12 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
VL53L1CXV0FY/1
VL53L1X
U1
1
APDS-9306-065
U2
1
SM08B-SRSS-TB(LF)(SN)
BROW (Cortex J4)
J1
2
ICS-43434
MK1, MK2
1
TOUCH_R
TP1
1
TOUCH_L
TP2
3
CL05B104KO5NNNC
100nF
C1, C4, C5
1
CL10A475KO8NNNC
4.7uF
C2
1
CL05A105KA5NQNC
1uF
C3
1
CL10A106MA8NRNC
10uF
C6
1
0402WGF1002TCE
10k
R1
2
0402WGF330JTCE
33
R2, R3

Iris brow design files

The KiCad project lives in the HeyPCB/iris-brow repository on GitHub; these links point at the commit this page was built from.

Iris brow: common questions

How big is the Iris brow PCB?

The Iris brow measures 116 × 12 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Iris brow?

16 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Iris brow design files?

From the HeyPCB/iris-brow repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Iris brow design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which HeyPCB chose for the repository.
