Quack face

HeyPCB·quack-face·kicad/quack_face.kicad_pcb

Quack face PCB layout, top view — open source board by HeyPCB

About the Quack face PCB

Quack face is an open source PCB design by HeyPCB, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 128 × 51.4 mm, with 47 components from 28 distinct parts.

Other key parts include the TPS56339DDCR, XC6206P332MR-G, MAX98357AETE+T and ICS-43434. By type, the board carries 17 resistors, 13 capacitors, 6 connectors, 4 ICs, 3 transistors and 2 diodes.

It belongs with the robotics & motion, audio and rf & radio designs in this gallery.

From the project

Face board for the Open Duck Mini's head: eye LEDs, projector driver, I2S amp and mic, antenna servos, shaped to the head. 4-layer KiCad 10 board plus printed standoffs, fit-checked in the head CAD.

The face board for the Open Duck Mini's head: eye LEDs, projector driver, I2S speaker amp and microphone, antenna servos, shaped to the head.

Part of HeyPCB's open robot boards. Designed end to end with the HeyPCB method on KiCad 10 (headless pipeline, Freerouting 2.4.1); every number below is measured on the files in this repository. Mentions of ./run.sh, docs/rules/, blocks/ or parts/ refer to the heypcb-kicad SDK that produced them.

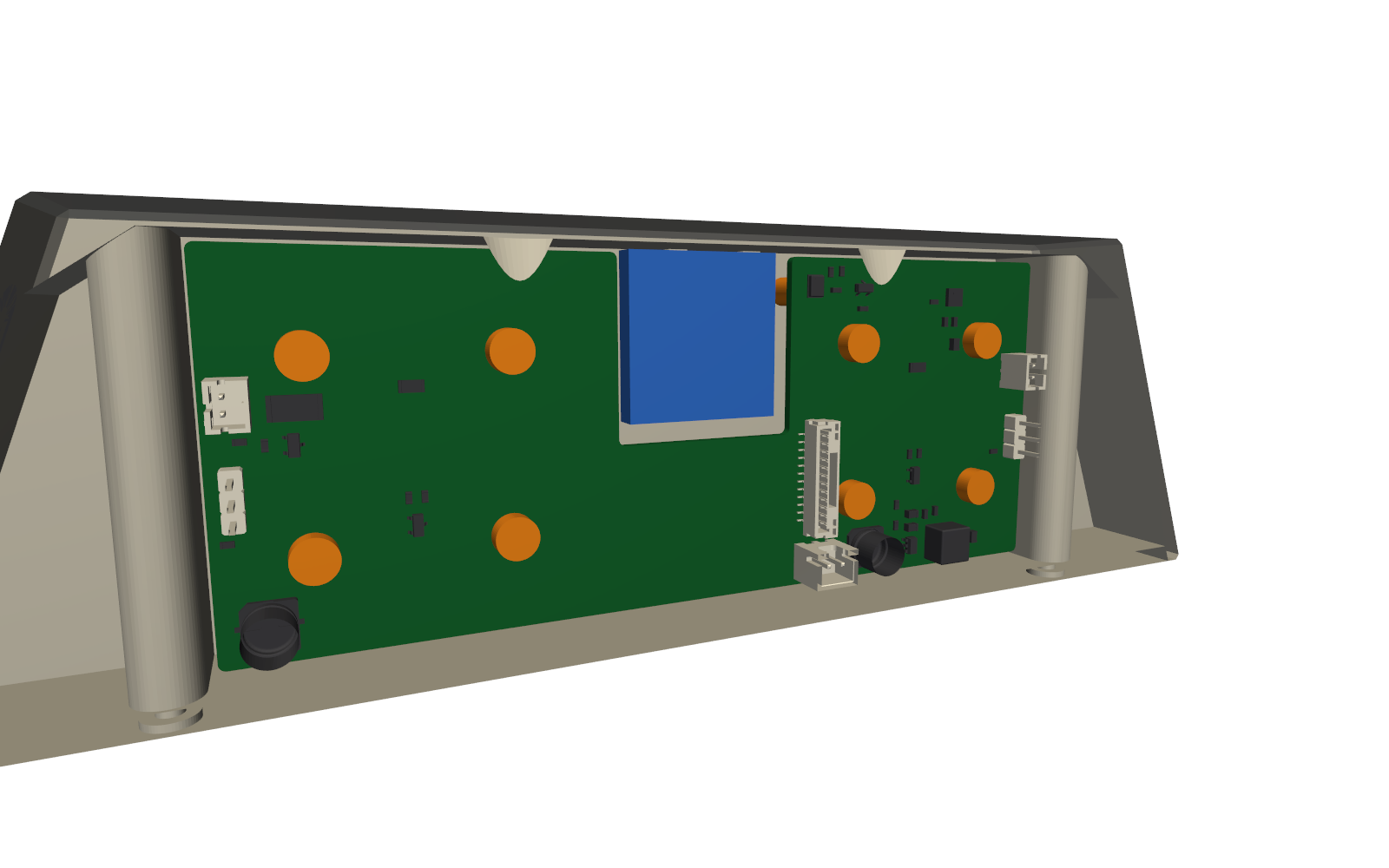

Quack face, from the project README
From the project README

Main components on the Quack face

TPS56339DDCRXC6206P332MR-GMAX98357AETE+TICS-43434

Quack face bill of materials (BOM)

47 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPS56339DDCR
TPS56339
U1
1
XC6206P332MR-G
XC6206P332MR
U2
1
MAX98357AETE+T
MAX98357A
U3
1
ICS-43434
U4
3
AO3400A
Q1, Q2, Q3
1
BM12B-GHS-TBT(LF)(SN)(N)
Quack Core J12
J12
1
B2B-XH-A(LF)(SN)
VBAT
J13
1
B2B-PH-K-S(LF)(SN)
SPEAKER 4R
J14
1
B2B-PH-K-S(LF)(SN)
PROJ LED
J15
2
PZ254V-11-03P
SERVO
J16, J17
2
XL-2835UWC-05
XL-2835UWC-05 white
D1, D2
1
BLM18PG121SN1D
120R@100MHz
FB1
1
SWPA6045S4R7MT
4.7uH
L1
2
VZH221M1CTT-0607L
220uF 16V
C1, C8
3
CL21A106KAYNNNE
10uF
C2, C3, C11
4
CC0603KRX7R9BB104
100nF
C4, C5, C12, C13
2
CL21A226MAQNNNE
22uF
C6, C7
2
CL10A105KB8NNNC
1uF
C9, C10
1
FRC0603F30R0TS
30
R1
1
0603WAF5232T5E
52.3k
R2
Show 8 more
QtyPartRefs
1
0402WGF1002TCE
10k
R3
1
0603WAF1004T5E
1M
R4
4
0603WAF1003T5E
100k
R5, R8, R11, R14
1
0603WAF470JT5E
47
R6
3
0603WAF1000T5E
100
R7, R10, R13
2
FRC1206F33R0TS
33
R9, R12
1
25121WF100JT4E
10
R15
2
0603WAF2200T5E
220
R16, R17

Quack face design files

The KiCad project lives in the HeyPCB/quack-face repository on GitHub; these links point at the commit this page was built from.

Quack face: common questions

How big is the Quack face PCB?

The Quack face measures 128 × 51.4 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Quack face?

47 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Quack face design files?

From the HeyPCB/quack-face repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Quack face design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which HeyPCB chose for the repository.
