OakBridge MkI

HighCarlSagan·OakBridge_MkI·hardware/PC_Interface_Card/PC_Interface_Card.kicad_pcb

OakBridge MkI PCB layout, top view — open source ESP32 board by HighCarlSagan
Simulate this board

About the OakBridge MkI PCB

OakBridge MkI is an open source ESP32 PCB design by HighCarlSagan, published on GitHub under the Custom license license. It is a 2-layer board measuring 91.9 × 72 mm, with 78 components from 22 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N16R8, from the ESP32 family. Other key parts include the USBLC6-2SC6, TLV1117LV33DCYR and MB85RS4MTYPF-G-BCE1. By type, the board carries 35 resistors, 19 capacitors, 8 switches, 5 LEDs, 4 ICs and 3 connectors.

It belongs with the iot & wireless designs in this gallery.

From the project

A tactile PC dashboard — ESP32-S3, mechanical keys, IPS display, and a wooden enclosure.

A tactile PC dashboard — ESP32-S3, mechanical keys, IPS display, and a wooden enclosure.

I spend a lot of my day staring at terminals and dashboards. I wanted a small, tactile thing on the desk that could show me what my PC was doing without me having to alt-tab to find out — CPU temp during a long compile, what's playing on Spotify, calendar at a glance — and let me poke at it with real keys instead of yet another window.

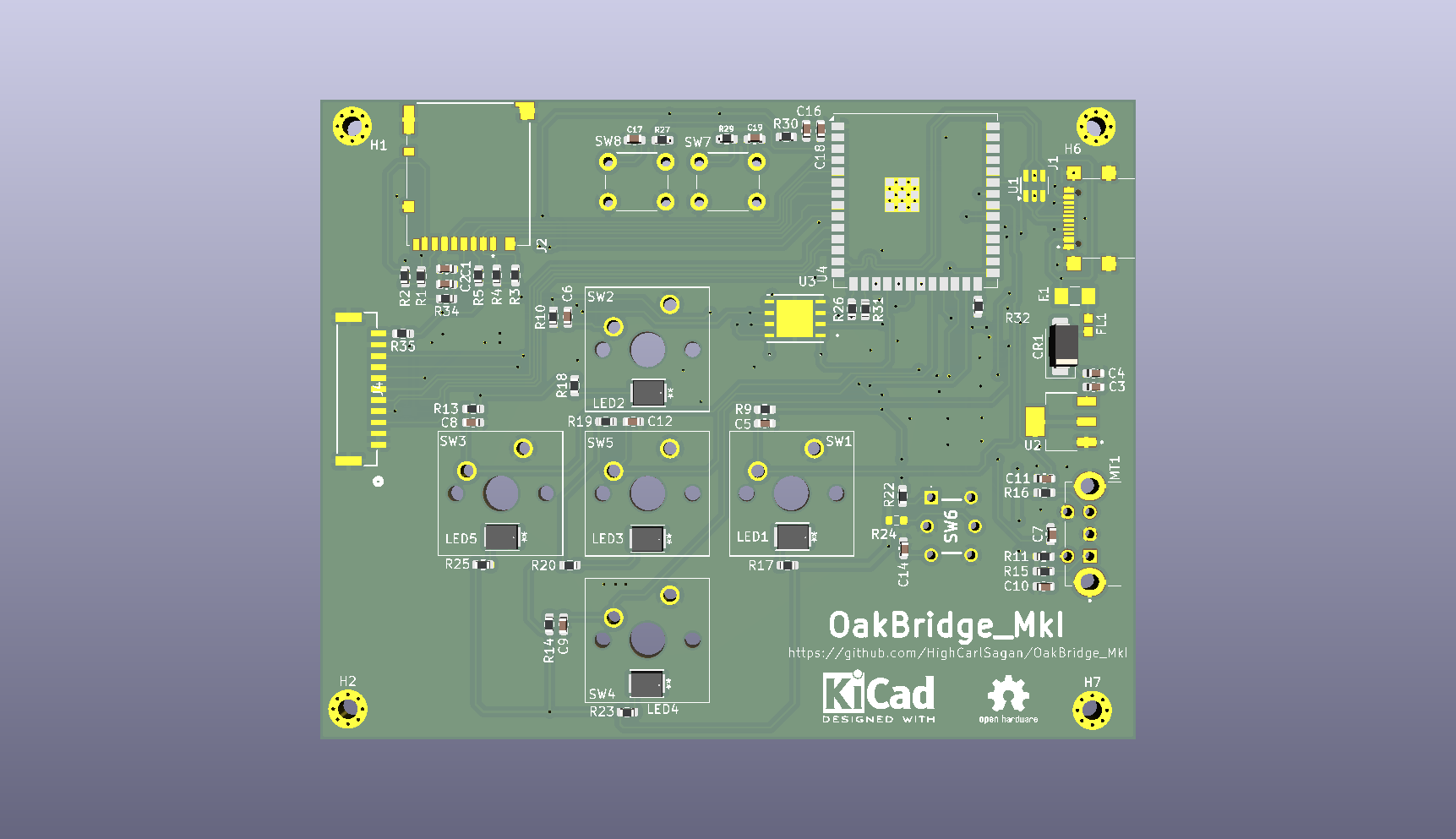

OakBridge MkI, from the project README
From the project README

Main components on the OakBridge MkI

USBLC6-2SC6TLV1117LV33DCYRMB85RS4MTYPF-G-BCE1ESP32-S3-WROOM-1-N16R8

OakBridge MkI bill of materials (BOM)

78 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
USBLC6-2SC6
STMicroelectronics
U1
1
TLV1117LV33DCYR
Texas Instruments
U2
1
MB85RS4MTYPF-G-BCE1
MB85RS4MTYPN-GS-AWEWE1
Ramxseed
U3
1
ESP32-S3-WROOM-1-N16R8
ESP32-S3-WROOM-1
Espressif
U4
1
GSB1C41110SSHR
Amphenol
J1
1
DM3BT-DSF-PEJS
Hirose
J2
1
BM11B-GHS-TBT
JST Sales America Inc.
J4
1
SS14
Onsemi
CR1
1
C1Q 1.5
Bel Fuse
F1
1
BLM18PG600SN1D
Murata
FL1
1
ACZ11BR1E-15KQA1-12C
Same Sky (Formerly CUI Devices)
MT1
5
MX2A-E1NA
CherryMX
Cherry Americas LLC
SW1, SW2, SW3, SW4, SW5
1
TL1240YQ2JBLK
E Switch
SW6
2
SW_Push
SW7, SW8
5
JE2835ARY-N-0002A0000-N0000001
LED_Cree_JE2835
Cree LED
LED1, LED2, LED3, LED4, LED5
4
C0603C105K4RACTU
1u_50V_0603
KEMET
C1, C3, C13, C16
15
CC0603KRX7R7BB104
100n_50V_0603
YAGEO
C2, C4, C5, C6, C7, C8, C9, C10 +7
23
ERJ-PB3B1002V
10k_0.1W_0603
Panasonic Electronic Components
R1, R2, R3, R4, R5, R8, R9, R10 +15
2
ERJ-PB3B5101V
5.1k_0.1W_0603
Panasonic Electronic Components
R6, R7
5
CRGH0603J33R
33R_0.1W_0603
TE Connectivity Passive Product
R17, R18, R20, R23, R25
Show 2 more
QtyPartRefs
1
RC0603FR-7W68RL
68R_0.2W_0603
YAGEO
R24
4
0R_0.1W_0603
R30, R33, R34, R35

OakBridge MkI design files

The KiCad project lives in the HighCarlSagan/OakBridge_MkI repository on GitHub; these links point at the commit this page was built from.

OakBridge MkI: common questions

What microcontroller does the OakBridge MkI use?

The OakBridge MkI is built around the ESP32-S3-WROOM-1-N16R8, from the ESP32 family.

How big is the OakBridge MkI PCB?

The OakBridge MkI measures 91.9 × 72 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the OakBridge MkI?

78 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the OakBridge MkI design files?

From the HighCarlSagan/OakBridge_MkI repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the OakBridge MkI design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the OakBridge MkI without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
