Esp32-s3-board nowireless layout, top view — open source ESP32 board by Hita-haru

About the Esp32-s3-board nowireless

Esp32-s3-board nowireless is an open source ESP32 PCB design by Hita-haru, published on GitHub. It is a 2-layer board measuring 65 × 45 mm, with 55 components from 23 distinct parts.

Its main chip is the ESP32-S3, from the ESP32 family. Other key parts include the MCP1700x-280xxTT, W25Q128JVS, ESP-PSRAM64H, NCP1117-1.5_SOT223 and MCP1700x-330xxTT. By type, the board carries 24 capacitors, 13 resistors, 7 diodes, 6 ICs, 4 connectors and 1 crystal.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Add this URL to Additional Boards Manager URLs:

Add this URL to Additional Boards Manager URLs:

https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/packageesp32index.json

Open Tools > Board > Boards Manager, search for esp32, and install it.

2. Select Board Settings Board: ESP32S3 Dev Module

USB CDC On Boot: Enabled (Crucial if using direct ESP32-S3 USB pins IO19/IO20 for Serial output)

3. Enter Download (Bootloader) Mode (If your custom board does not have an auto-reset circuit)

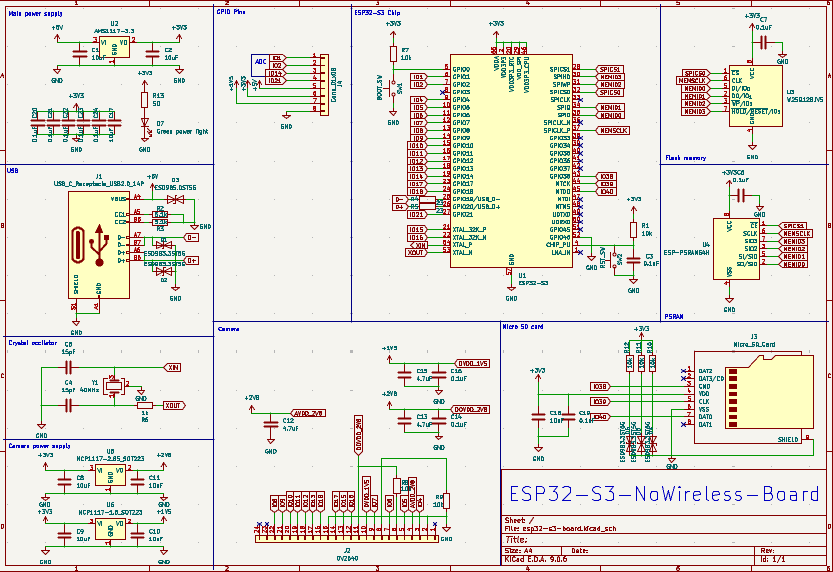

Esp32-s3-board nowireless, from the project README
From the project README

Main components on the Esp32-s3-board nowireless

ESP32-S3MCP1700x-280xxTTW25Q128JVSESP-PSRAM64HNCP1117-1.5_SOT223MCP1700x-330xxTT

Esp32-s3-board nowireless bill of materials (BOM)

55 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3
U1
1
MCP1700x-280xxTT
U2
1
W25Q128JVS
U3
1
ESP-PSRAM64H
U4
1
NCP1117-1.5_SOT223
U6
1
MCP1700x-330xxTT
U7
1
40MHz
Y1
1
USB_C_Receptacle_USB2.0_14P
J1
1
OV2640
J2
1
Micro_SD_Card
J3
1
Conn_01x08
J4
5
ESD9B3.3ST5G
D1, D2, D4, D5, D6
1
ESD9B5.0ST5G
D3
1
Green power light
D7
8
10uF
C1, C2, C8, C9, C10, C11, C17, C18
11
0.1uF
C3, C6, C7, C14, C16, C19, C20, C21 +3
2
15pF
C4, C5
3
4.7uF
C12, C13, C15
7
10k
R1, R7, R8, R9, R10, R11, R12
2
5.1k
R2, R3
Show 3 more
QtyPartRefs
2
23
R4, R5
1
1k
R6
1
50
R13

Esp32-s3-board nowireless design files

The KiCad project lives in the Hita-haru/esp32-s3-board-nowireless repository on GitHub; these links point at the commit this page was built from.

Esp32-s3-board nowireless: common questions

What microcontroller does the Esp32-s3-board nowireless use?

The Esp32-s3-board nowireless is built around the ESP32-S3, from the ESP32 family.

How big is the Esp32-s3-board nowireless?

The Esp32-s3-board nowireless measures 65 × 45 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-s3-board nowireless?

55 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32-s3-board nowireless design files?

From the Hita-haru/esp32-s3-board-nowireless repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32-s3-board nowireless design in my own project?

The repository has no license, so all rights stay with Hita-haru. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp32-s3-board nowireless without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
