Mesp240 gamepadshield

hwreverse·MorphESP240_Shields·mesp240_gamepadshield/mesp240_gamepadshield.kicad_pcb

Mesp240 gamepadshield PCB layout, top view — open source board by hwreverse
Simulate this board

About the Mesp240 gamepadshield PCB

Mesp240 gamepadshield is an open source PCB design by hwreverse, published on GitHub under the MIT license. It is a 2-layer board measuring 147.3 × 55.9 mm, with 30 components from 16 distinct parts.

By type, the board carries 10 resistors, 8 switches, 8 capacitors, 3 connectors and 1 transistor.

It belongs with the dev boards & breakouts, power & battery and sensors designs in this gallery.

From the project

HWR0's Shield Designs for the MorphESP 240 by @ccadic

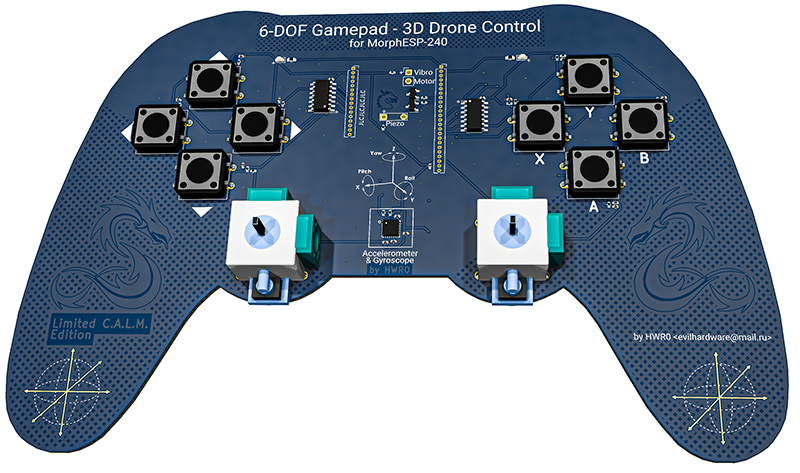

- Next evolution of the Gamepad Shield in a new design with two additional analog josticks and a I2C Gyroscope + Accelerometer integrated circuit for Position & Inertia capture. - 2x4 Button Gamepad Shield and connection to optional Buzzer ready to be fabricated and assembled by the PCBA service of your choice. It can also be soldered by hand as I used only 0805 and SOT-23 footprints for the passives and the transistor (on the backside). Pushbuttons are classic, comfy 12mm x 12mm x 4.3/5mm units, that won't use that much your fingertips.

Mesp240 gamepadshield, from the project README
From the project README

Mesp240 gamepadshield bill of materials (BOM)

30 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MMBT3904
Q1
1
1.27P CNX
J1
1
1.27P CNX
J2
1
Piezo Connector
J3
1
C620359
Button DOWN
SW1
1
C620359
Button LEFT
SW2
1
C620359
Button Right
SW3
1
C620359
Button UP
SW4
1
C620359
Button B
SW5
1
C620359
Button X
SW6
1
C620359
Button Y
SW7
1
C620359
Button A
SW8
8
100NF
100nF
C1, C2, C3, C4, C5, C6, C7, C8
8
10K
R1, R2, R3, R4, R5, R6, R7, R8
1
1K
R9
1
100R
R10

Mesp240 gamepadshield design files

The KiCad project lives in the hwreverse/MorphESP240_Shields repository on GitHub; these links point at the commit this page was built from.

Mesp240 gamepadshield: common questions

How big is the Mesp240 gamepadshield PCB?

The Mesp240 gamepadshield measures 147.3 × 55.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Mesp240 gamepadshield?

30 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Mesp240 gamepadshield design files?

From the hwreverse/MorphESP240_Shields repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Mesp240 gamepadshield design in my own project?

Yes, under the terms of its MIT license, which hwreverse chose for the repository.
