Iot-Data-Acquisiton-Board

IEEE-VIT·Iot-Data-Acquisiton-Board·Project Files/data_acquisition.kicad_pcb

Iot-Data-Acquisiton-Board layout, top view — open source ESP32 board by IEEE-VIT
Simulate this board

About the Iot-Data-Acquisiton-Board

Iot-Data-Acquisiton-Board is an open source ESP32 PCB design by IEEE-VIT, published on GitHub under the MIT license. It is a 2-layer board measuring 69 × 30.9 mm, with 19 components from 11 distinct parts.

Its main chip is the ESP32-WROOM-32U, from the ESP32 family. Other key parts include the BME280, MQ-6, AMS1117-5.0, AMS1117-3.3 and MCP6002-XMC. By type, the board carries 7 ICs, 7 capacitors, 3 connectors and 2 resistors.

It belongs with the sensors and iot & wireless designs in this gallery.

From the project

The 2-Layer IoT Data Acquisition Board is an ESP32-based PCB designed for precision environmental monitoring. It integrates MQ-6 and BME280 sensors with an ADS1115 16-bit ADC and MCP6002 . Featuring on-board Micro SD logging and a 12V-to-3.3V power stack, it provides a robust, standalone solution for remote data acquisition.

This repository contains the design files and schematics for a custom 2-layer Printed Circuit Board (PCB) designed for high-efficiency IoT data acquisition. The board is engineered to interface high-precision analog and digital sensors with an ESP32 microcontroller, facilitating real-time data logging and output expansion.

2-Layer Optimized Design: Compact PCB layout with dedicated signal and power planes to minimize noise. High-Precision Analog Sensing: Integrated ADS1115 (or ADC121C021) 16-bit I2C ADC for superior data resolution. Buffered Signal Conditioning: MCP6002 Op-Amp integrated for…

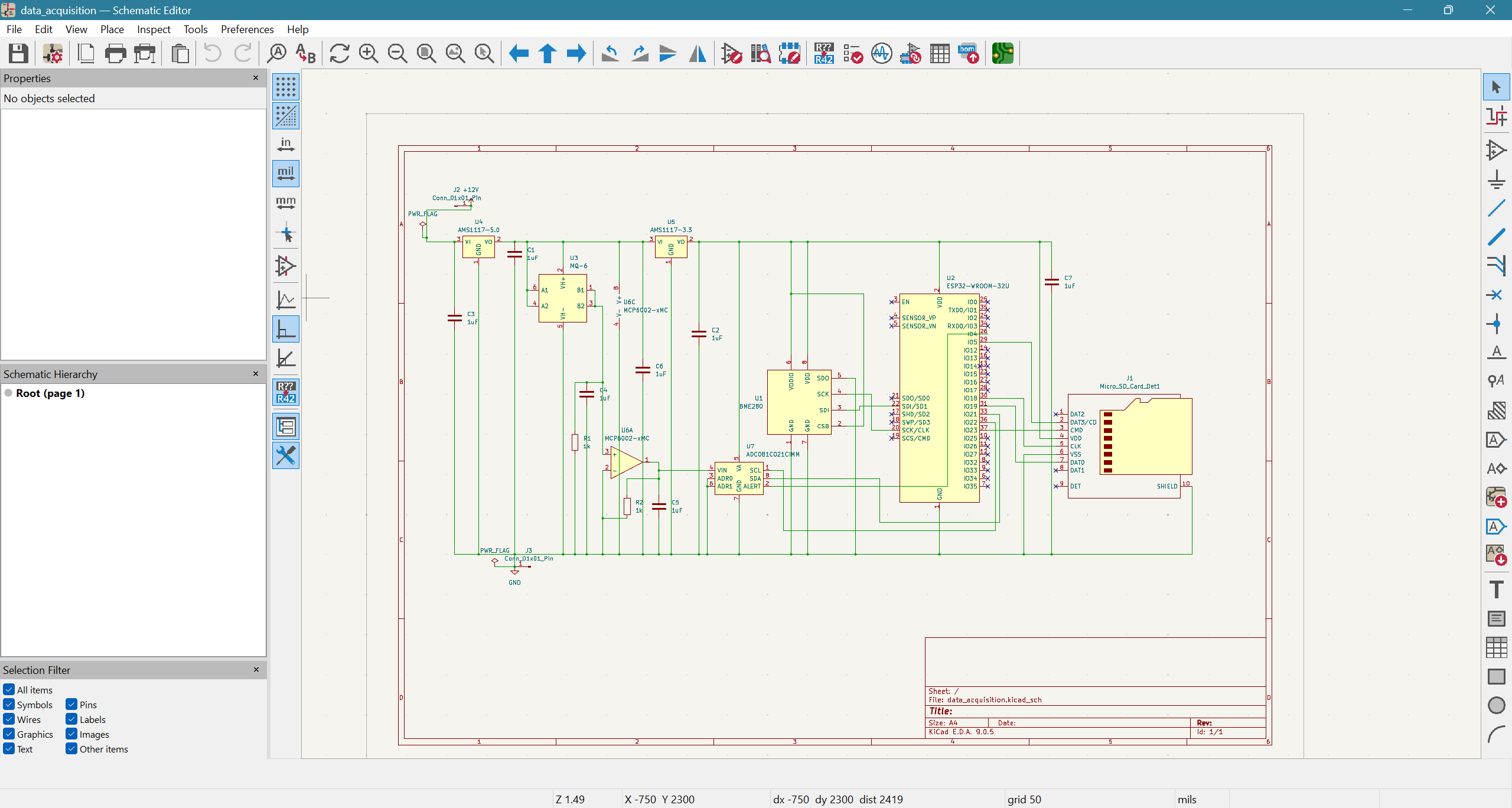

Iot-Data-Acquisiton-Board, from the project README
From the project README

Main components on the Iot-Data-Acquisiton-Board

BME280ESP32-WROOM-32UMQ-6AMS1117-5.0AMS1117-3.3MCP6002-XMCADC081C021CIMM

Iot-Data-Acquisiton-Board bill of materials (BOM)

19 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BME280
U1
1
ESP32-WROOM-32U
U2
1
MQ-6
U3
1
AMS1117-5.0
U4
1
AMS1117-3.3
U5
1
MCP6002-XMC
MCP6002-xMC
U6
1
ADC081C021CIMM
U7
1
MICRO_SD_CARD_DET1
Micro_SD_Card_Det1
J1
2
CONN_01X01_PIN
Conn_01x01_Pin
J2, J3
7
1UF
1uF
C1, C2, C3, C4, C5, C6, C7
2
1k
R1, R2

Iot-Data-Acquisiton-Board design files

The KiCad project lives in the IEEE-VIT/Iot-Data-Acquisiton-Board repository on GitHub; these links point at the commit this page was built from.

Iot-Data-Acquisiton-Board: common questions

What microcontroller does the Iot-Data-Acquisiton-Board use?

The Iot-Data-Acquisiton-Board is built around the ESP32-WROOM-32U, from the ESP32 family.

How big is the Iot-Data-Acquisiton-Board?

The Iot-Data-Acquisiton-Board measures 69 × 30.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Iot-Data-Acquisiton-Board?

19 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Iot-Data-Acquisiton-Board design files?

From the IEEE-VIT/Iot-Data-Acquisiton-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Iot-Data-Acquisiton-Board design in my own project?

Yes, under the terms of its MIT license, which IEEE-VIT chose for the repository.

Can I test firmware for the Iot-Data-Acquisiton-Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
