Vayu-F722
About the Vayu-F722 PCB
Vayu-F722 is an open source STM32 PCB design by ishantmahatopro, published on GitHub under the MIT license. It is a 4-layer board measuring 42 × 42 mm, with 137 components from 69 distinct parts.
Its main chip is the STM32F722RET6, from the STM32 family. Other key parts include the AP64350SP-13, TLV62569DBVR, LP5907MFX-3.3, USBLC6-2SC6 and ICM-42688-P. By type, the board carries 57 capacitors, 48 resistors, 10 ICs, 7 connectors, 6 diodes and 4 inductors.
It belongs with the robotics & motion, power & battery and sensors designs in this gallery.
From the project

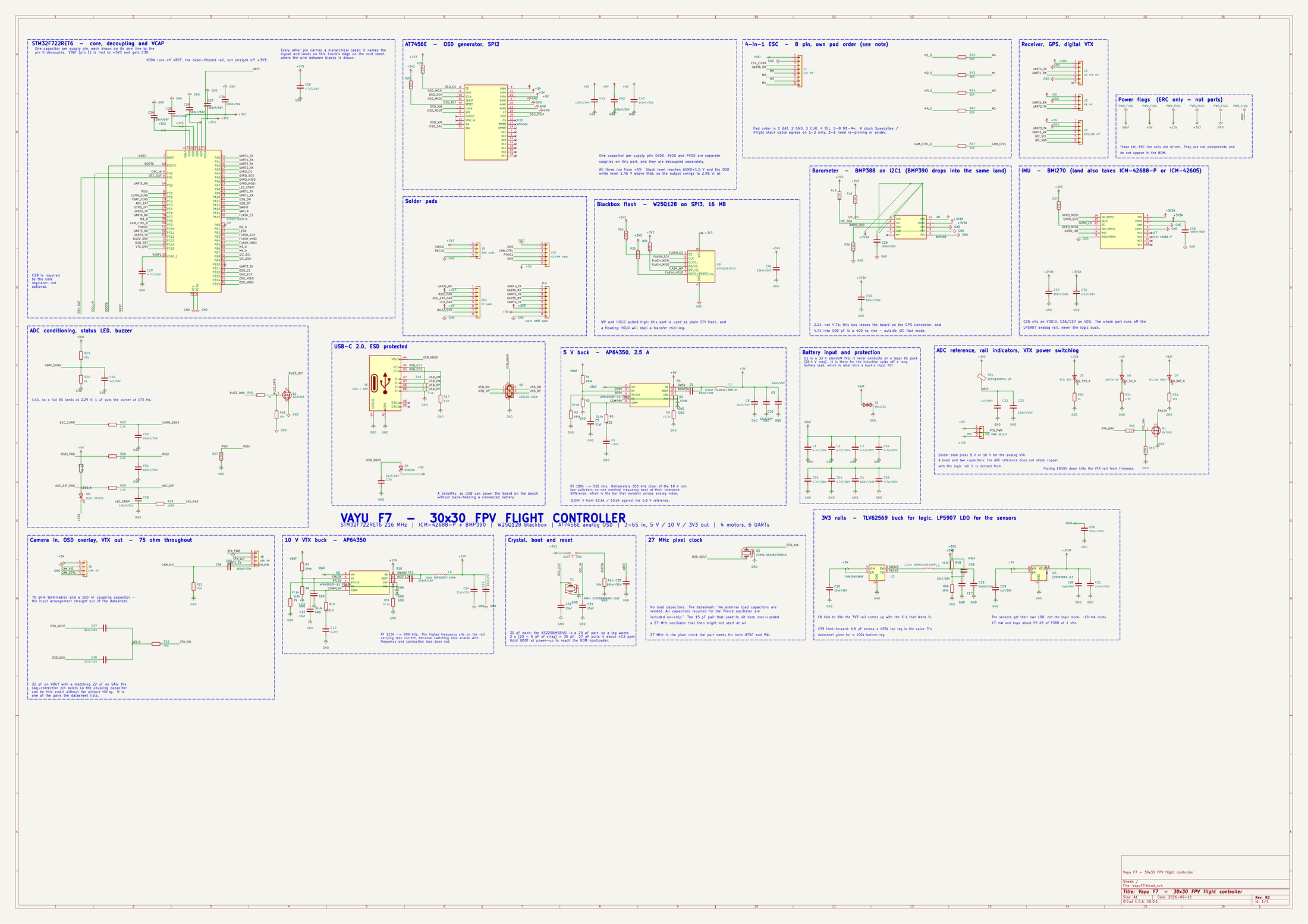

Custom 42x42mm 4-layer STM32F722 FPV flight controller for 5in and 7in cinematic and telemetry quads.
Vayu (वायु) is the Sanskrit word for wind.
This is a 42 × 42 mm, four-layer FPV flight controller built around the STM32F722 for 5-inch and 7-inch quads doing cinematic, telemetry, and general performance work. It is designed to sit in the same class as well-known F722 boards while adding a cleaner power layout, a proper barometer, and a 10 V rail sized for an HD VTX or analogue system.
Main components on the Vayu-F722
Vayu-F722 bill of materials (BOM)
137 components, 69 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | AP64350SP-13 | SOIC-8-1EP_3.9x4.9mm_P1.27mm_EP2.62x3.51mm | U1, U2 |
| 1 | TLV62569DBVR | SOT-23-5 | U3 |
| 1 | LP5907MFX-3.3 | SOT-23-5 | U4 |
| 1 | STM32F722RET6 | LQFP-64_10x10mm_P0.5mm | U5 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U6 |
| 1 | ICM-42688-P | Bosch_LGA-14_3x2.5mm_P0.5mm | U7 |
| 1 | BMP388 | Bosch_LGA-10_2x2mm_BMP388_BMP390 | U8 |
| 1 | W25Q128JVSIQ | SOIC-8_5.3x5.3mm_P1.27mm | U9 |
| 1 | AT7456E | HTSSOP-28-1EP_4.4x9.7mm_P0.65mm_EP2.75x6.2mm | U10 |
| 1 | 2N7002 | SOT-23 | Q1 |
| 1 | AO3400A | SOT-23 | Q2 |
| 1 | C2682775 8MHz X32258MOB4SI 12pF | Crystal_SMD_3225-4Pin_3.2x2.5mm | X1 |
| 1 | C9008 27MHz X322527MSB4SI | Crystal_SMD_3225-4Pin_3.2x2.5mm | X2 |
| 1 | C160407 ESC 8P | JST_SH_SM08B-SRSS-TB_1x08-1MP_P1.00mm_Horizontal | J1 |
| 1 | C53055322 HD VTX 6P | JST_SH_SM06B-SRSS-TB_1x06-1MP_P1.00mm_Horizontal | J2 |
| 1 | C160404 RX 4P | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J3 |
| 1 | C53055322 GPS/I2C 6P | JST_SH_SM06B-SRSS-TB_1x06-1MP_P1.00mm_Horizontal | J4 |
| 1 | C160404 CAM 4P | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J5 |
| 1 | C160404 VTX 4P | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J6 |
| 1 | C165948 USB-C 16P | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J8 |
Show 49 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C231329 BOOT | SW_SPST_B3U-1000P | SW1 |
| 1 | SMAJ33A | D_SMA | D1 |
| 1 | B5819W | D_SOD-123 | D4 |
| 1 | C2286 RED 3V3 | LED_0603_1608Metric | D5 |
| 1 | C965804 GREEN 5V | LED_0603_1608Metric | D6 |
| 1 | C965802 YELLOW VBAT | LED_0603_1608Metric | D7 |
| 1 | C965807 BLUE STATUS | LED_0603_1608Metric | D8 |
| 1 | C1017 600R@100MHz 2A | L_0805_2012Metric | FB1 |
| 1 | C167221 6.8uH FXL0630-6R8-M | L_cjiang_FXL0630 | L1 |
| 1 | C189932 10uH SRP5030T-100M | L_Bourns_SRP5030T | L2 |
| 1 | C50543 2.2uH SWPA4018S2R2MT | L_Sunlord_SWPA4018S | L3 |
| 2 | 4.7UF/50V 4.7uF/50V | C_1206_3216Metric | C1, C2 |
| 5 | 4.7UF/50V 4.7uF/50V | C_0805_2012Metric | C3, C52, C53, C54, C55 |
| 1 | 100NF/50V 100nF/50V | C_0603_1608Metric | C4 |
| 2 | 100NF/16V 100nF/16V | C_0402_1005Metric | C5, C11 |
| 1 | 1.8NF 1.8nF | C_0402_1005Metric | C6 |
| 1 | 27PF 27pF | C_0402_1005Metric | C7 |
| 6 | 22UF/25V 22uF/25V | C_1206_3216Metric | C8, C9, C10, C14, C15, C17 |
| 2 | 2.2NF 2.2nF | C_0402_1005Metric | C12, C60 |
| 1 | 22PF 22pF | C_0402_1005Metric | C13 |
| 2 | 10UF/16V 10uF/16V | C_0805_2012Metric | C16, C34 |
| 22 | 100NF/50V 100nF/50V | C_0402_1005Metric | C18, C21, C23, C24, C25, C26, C27, C30 +14 |
| 4 | 1UF/50V 1uF/50V | C_0603_1608Metric | C19, C20, C22, C49 |
| 2 | 4.7UF/16V 4.7uF/16V | C_0805_2012Metric | C28, C29 |
| 2 | 15PF 15pF | C_0402_1005Metric | C31, C32 |
| 1 | 2.2UF/16V 2.2uF/16V | C_0603_1608Metric | C36 |
| 2 | 22UF/16V 22uF/16V | C_0805_2012Metric | C47, C48 |
| 1 | 6.8PF 6.8pF | C_0402_1005Metric | C59 |
| 2 | 294K 294k | R_0402_1005Metric | R1, R7 |
| 2 | 57.6K 57.6k | R_0402_1005Metric | R2, R8 |
| 1 | 180K 180k | R_0402_1005Metric | R3 |
| 1 | 53.6K 53.6k | R_0402_1005Metric | R4 |
| 2 | 10.2K 10.2k | R_0402_1005Metric | R5, R11 |
| 1 | 25.5K 25.5k | R_0402_1005Metric | R6 |
| 1 | 110K 110k | R_0402_1005Metric | R9 |
| 1 | 118K 118k | R_0402_1005Metric | R10 |
| 1 | 31.6K 31.6k | R_0402_1005Metric | R12 |
| 10 | 10K 10k | R_0402_1005Metric | R13, R14, R20, R28, R34, R35, R36, R37 +2 |
| 2 | 5.1K 5.1k | R_0402_1005Metric | R16, R17 |
| 5 | 2.2K 2.2k | R_0402_1005Metric | R18, R19, R25, R26, R39 |
| 2 | 75R | R_0402_1005Metric | R21, R22 |
| 1 | 10K 10k | R_0603_1608Metric | R23 |
| 5 | 1k | R_0402_1005Metric | R24, R30, R33, R40, R41 |
| 2 | 100K 100k | R_0402_1005Metric | R27, R49 |
| 1 | 100R | R_0402_1005Metric | R29 |
| 1 | 1.5K 1.5k | R_0402_1005Metric | R31 |
| 1 | 15K 15k | R_0603_1608Metric | R32 |
| 5 | 33R | R_0402_1005Metric | R42, R43, R44, R45, R47 |
| 1 | 453K 453k | R_0402_1005Metric | R48 |
Vayu-F722 design files
The KiCad project lives in the ishantmahatopro/Vayu-F722 repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/VayuF7.kicad_pcb
- SchematicPCB/VayuF7.kicad_sch
- BOMbom.csv
Vayu-F722: common questions
What microcontroller does the Vayu-F722 use?
The Vayu-F722 is built around the STM32F722RET6, from the STM32 family.
How big is the Vayu-F722 PCB?
The Vayu-F722 measures 42 × 42 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Vayu-F722?
137 components, from 69 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Vayu-F722 design files?
From the ishantmahatopro/Vayu-F722 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Vayu-F722 design in my own project?
Yes, under the terms of its MIT license, which ishantmahatopro chose for the repository.
Can I test firmware for the Vayu-F722 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
