Devkit2

jacobjuneau6·devkit2·BOARD/Board/Board.kicad_pcb

Devkit2 PCB layout, top view — open source ESP32 board by jacobjuneau6

About the Devkit2 PCB

Devkit2 is an open source ESP32 PCB design by jacobjuneau6, published on GitHub under the MIT license. It is a 2-layer board measuring 40.8 × 80 mm, with 13 components from 9 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N8R8, from the ESP32 family. Other key parts include the TPS74533PCQWDRVRQ1. By type, the board carries 4 resistors, 2 ICs, 2 connectors, 2 switches and 1 LED.

It belongs with the iot & wireless, dev boards & breakouts and displays & leds designs in this gallery.

From the project

A compact ESP32-S3 development board designed for rapid prototyping and embedded projects.

A compact ESP32-S3 development board designed for rapid prototyping and embedded projects.

- ESP32-S3-WROOM-1 module — dual-core Xtensa LX7, 2.4 GHz Wi-Fi, BLE 5.0, 8 MB PSRAM, 16 MB Flash - USB-C connector for power, programming, and serial monitor - WS2812B addressable RGB LED on GPIO 2 - microSD card slot (TF-PUSH) connected via SPI - 2× tactile push buttons — Boot (GPIO 0) and Reset (EN) - 2× 20-pin breakout headers bringing out all available GPIO, power rails, and peripheral signals - 3.3 V LDO regulator (TPS74533) — up to 500 mA output, 6.5 V max input - Compact form factor — fits on a…

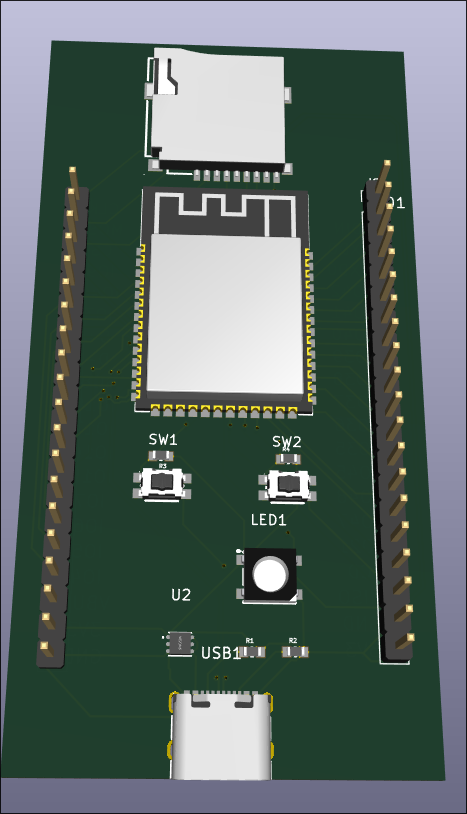

Devkit2, from the project README
From the project README

Main components on the Devkit2

ESP32-S3-WROOM-1-N8R8TPS74533PCQWDRVRQ1

Devkit2 bill of materials (BOM)

13 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1-N8R8
ESP32-S3-WROOM-1
ESPRESSIF(乐鑫)
U1
1
TPS74533PCQWDRVRQ1
TI(德州仪器)
U2
2
PINHD_1x20_Male
J1, J2
1
TF PUSH
SHOU HAN(首韩)
Card1
2
KMR221NGLFS
C&K
SW1, SW2
1
TYPE-C 16PIN 2MD(073)
TYPE-C 16PIN 2MD
SHOU HAN(首韩)
USB1
1
WS2812B-B/T
WS2812B-B/W
worldsemi
LED1
2
TYPE-C 16PIN 2MD(073)
RT0603BRE075K1L
YAGEO
R1, R2
2
TYPE-C 16PIN 2MD(073)
RP0603BRE0710KL
YAGEO
R3, R4

Devkit2 design files

The KiCad project lives in the jacobjuneau6/devkit2 repository on GitHub; these links point at the commit this page was built from.

Devkit2: common questions

What microcontroller does the Devkit2 use?

The Devkit2 is built around the ESP32-S3-WROOM-1-N8R8, from the ESP32 family.

How big is the Devkit2 PCB?

The Devkit2 measures 40.8 × 80 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Devkit2?

13 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Devkit2 design files?

From the jacobjuneau6/devkit2 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Devkit2 design in my own project?

Yes, under the terms of its MIT license, which jacobjuneau6 chose for the repository.

Can I test firmware for the Devkit2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
