RocketLog PCB layout, top view — open source ESP32 board by jacobjuneau6

About the RocketLog PCB

RocketLog is an open source ESP32 PCB design by jacobjuneau6, published on GitHub under the AGPL-3.0 license. It is a 2-layer board measuring 25 × 75 mm, with 11 components from 9 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N8R8, from the ESP32 family. Other key parts include the TLV75533PDYDR, BMP384, MPU-6500 and W25Q128JVSIQ. By type, the board carries 5 ICs, 2 connectors, 2 switches and 2 resistors.

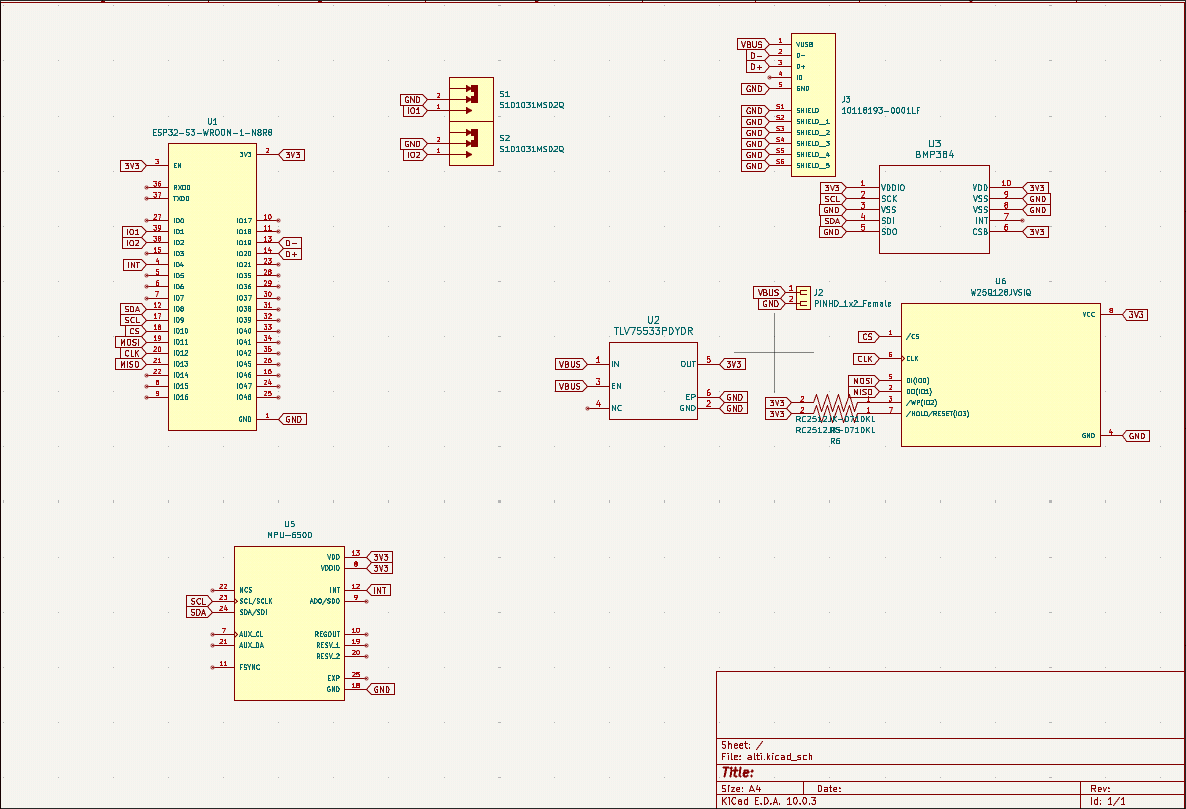

RocketLog, from the project README
From the project README

Main components on the RocketLog

ESP32-S3-WROOM-1-N8R8TLV75533PDYDRBMP384MPU-6500W25Q128JVSIQ

RocketLog bill of materials (BOM)

11 components, 9 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1-N8R8
U1
1
TLV75533PDYDR
U2
1
BMP384
U3
1
MPU-6500
U5
1
W25Q128JVSIQ
U6
1
PINHD_1x2_Female
J2
1
10118193-0001LF
J3
2
S101031MS02Q
S1, S2
2
RC2512JK-0710KL
R5, R6

RocketLog design files

The KiCad project lives in the jacobjuneau6/RocketLog repository on GitHub; these links point at the commit this page was built from.

RocketLog: common questions

What microcontroller does the RocketLog use?

The RocketLog is built around the ESP32-S3-WROOM-1-N8R8, from the ESP32 family.

How big is the RocketLog PCB?

The RocketLog measures 25 × 75 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RocketLog?

11 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RocketLog design files?

From the jacobjuneau6/RocketLog repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RocketLog design in my own project?

Yes, under the terms of its AGPL-3.0 license, which jacobjuneau6 chose for the repository.

Can I test firmware for the RocketLog without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
