About the Wigglecam controller PCB

Wigglecam controller is an open source RP2040/RP2350 PCB design by jadenrhee, published on GitHub. It is a 4-layer board measuring 76 × 50 mm, with 98 components from 45 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the AP2112K-3.3, W25Q128JVSIQ, USBLC6-2SC6, LM358 and INA219. By type, the board carries 35 capacitors, 35 resistors, 8 connectors, 6 ICs, 6 diodes and 3 transistors.

It belongs with the power & battery designs in this gallery.

From the project

RP2040 co-processor board for a 4-lens wigglegram camera: constant-current flash, controls, battery telemetry, Pi 5 I2C interface. 4-layer, DRC-clean, fab-ready.

The RP2040 board that handles timing-critical and analog work for a 4-lens camera. The Raspberry Pi runs capture and image processing, but Linux is not a real-time OS and the Pi can't drive the flash directly.

This board runs the LED flash at constant current, with the limits set in the circuit rather than only in firmware. It also debounces the shutter, decodes the EC11 encoder, and monitors battery voltage and current through an INA219. On a trigger it pulses the Pi the instant the LEDs reach full current.

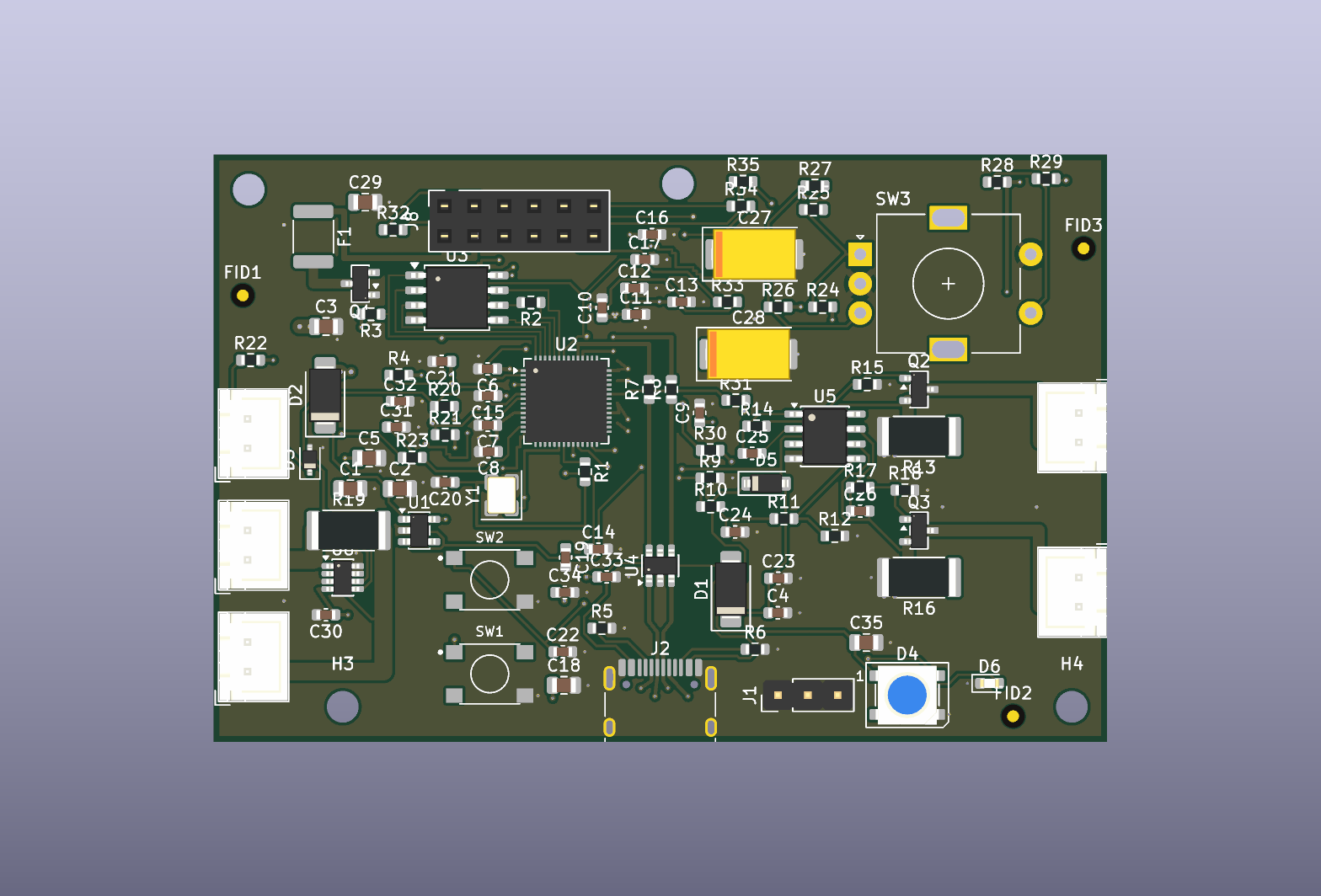

Wigglecam controller, from the project README — From the project README

Main components on the Wigglecam controller

AP2112K-3.3 RP2040 W25Q128JVSIQ USBLC6-2SC6 LM358 INA219

Wigglecam controller bill of materials (BOM)

98 components, 45 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	AP2112K-3.3	SOT-23-5	U1
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U2
1	W25Q128JVSIQ	SOIC-8_5.3x5.3mm_P1.27mm	U3
1	USBLC6-2SC6	SOT-23-6	U4
1	LM358	SOIC-8_3.9x4.9mm_P1.27mm	U5
1	INA219	SOT-23-8	U6
1	AO3401A	SOT-23	Q1
2	AO3400A	SOT-23	Q2, Q3
1	12MHZ 12MHz	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	SWD	PinHeader_1x03_P2.54mm_Vertical	J1
1	C165948 USB-C	USB_C_Receptacle_HRO_TYPE-C-31-M-12	J2
1	LED1	JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical	J3
1	LED2	JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical	J4
1	C158012 VBAT_IN	JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical	J5
1	C158012 VBAT_OUT	JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical	J6
1	C158012 SHUTTER	JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical	J7
1	Pi GPIO 1-12	PinSocket_2x06_P2.54mm_Vertical	J8
1	C883162 PTC 3A	Fuse_1812_4532Metric	F1
2	C318884 TACT	SW_TS-1187A_5.1x5.1mm	SW1, SW2
1	EC11	RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm	SW3

Show 25 more

Qty	Part	Footprint	Refs
2	SS34	D_SMA	D1, D2
1	PESD5V0S1BA	D_SOD-323	D3
1	WS2812B	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D4
1	1N4148W	D_SOD-123	D5
1	C72043 GREEN	LED_0603_1608Metric	D6
2	22UF 22uF	C_0805_2012Metric	C1, C2
5	10UF 10uF	C_0805_2012Metric	C3, C5, C18, C29, C35
4	1UF 1uF	C_0603_1608Metric	C4, C16, C17, C24
18	100NF 100nF	C_0603_1608Metric	C6, C7, C8, C9, C10, C11, C12, C13 +10
2	15PF 15pF	C_0603_1608Metric	C19, C20
2	1NF 1nF	C_0603_1608Metric	C25, C26
2	470UF 470uF	CP_EIA-7343-30_AVX-N	C27, C28
7	1k	R_0603_1608Metric	R1, R10, R23, R25, R27, R29, R31
3	27R	R_0603_1608Metric	R2, R7, R8
6	10K 10k	R_0603_1608Metric	R3, R4, R22, R24, R26, R28
2	5.1K 5.1k	R_0603_1608Metric	R5, R6
3	100K 100k	R_0603_1608Metric	R9, R15, R18
1	5.6K 5.6k	R_0603_1608Metric	R11
1	1.2K 1.2k	R_0603_1608Metric	R12
2	C105149 0.5R 1%	R_2512_6332Metric	R13, R16
2	100R	R_0603_1608Metric	R14, R17
1	C500718 10mR 2W 1%	R_2512_6332Metric	R19
2	4.7K 4.7k	R_0603_1608Metric	R20, R21
1	470R	R_0603_1608Metric	R30
4	330R	R_0603_1608Metric	R32, R33, R34, R35
