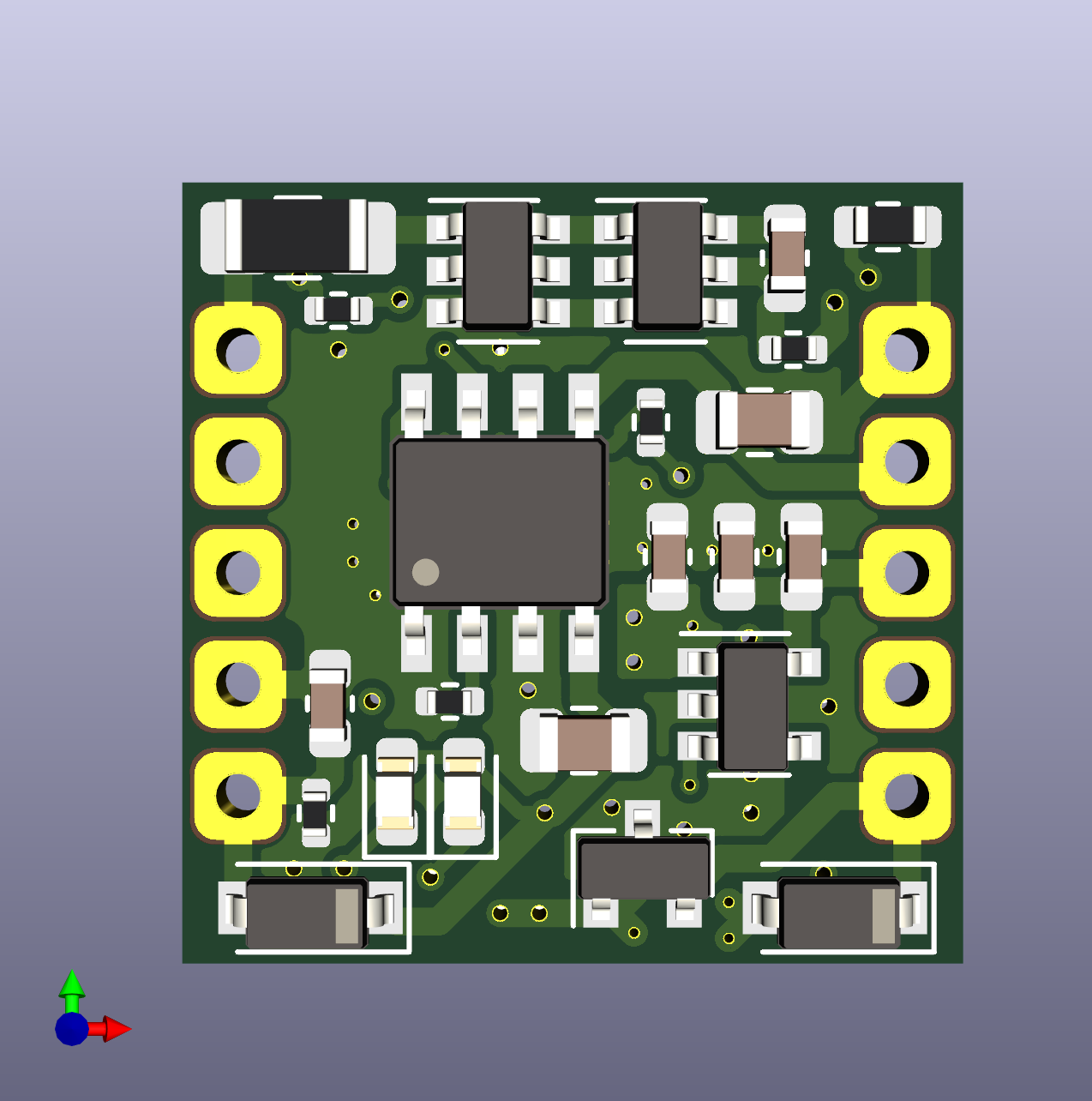

Lipo stamp proto
About the Lipo stamp proto PCB
Lipo stamp proto is an open source PCB design by jamesmunns, published on GitHub. It is a 4-layer board measuring 45.7 × 45.7 mm, with 94 components from 23 distinct parts.
Other key parts include the TP4056, AP2112K-3.3, AP9101CK6 and FS8205. By type, the board carries 35 test points, 22 resistors, 14 diodes, 5 capacitors, 4 ICs and 1 transistor.
It belongs with the power & battery designs in this gallery.
From the project
A tiny Li-Po/Li-Ion charging management SoM
This is intended to be a small sized, general purpose LiPo charge controller with power path and a 3v3 regulator. Currently the targeted size is 0.7" by 0.7", or just under 18mm square. It is intended to be used with 3.7V nominal cells.
TP4056 Charge Controller 500mA charging current Low voltage trickle charging Over/Under-voltage Protection AP9101CK6 + FS8205 Disables cell on over/under charge Power Path Provides power via USB when connected 500mA max output (USB or Cell) Switchable 3v3 Regulator Default off 100mA+ output Resettable Polyfuse For high current, direct battery applications…
Main components on the Lipo stamp proto
Lipo stamp proto bill of materials (BOM)
94 components, 23 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TP4056 | SOP-8 | IC1 |
| 1 | AP2112K-3.3 | SOT-23-5 | U4 |
| 1 | AP9101CK6 | SOT-23-6 | U5 |
| 1 | FS8205 | SOT-23-6 | U6 |
| 1 | SI2301CDS-T1-GE3 Q_PMOS_GSD | SOT-23 | Q1 |
| 1 | Polyfuse | Fuse_1206_3216Metric_Castellated | F1 |
| 35 | TestPoint | castellated-2-pin | TP1, TP2, TP3, TP4, TP5, TP6, TP7, TP8 +27 |
| 12 | 0 | R_0805_2012Metric | Z1, Z2, Z4, Z6, Z7, Z9, Z10, Z11 +4 |
| 13 | LED | LED_0805_2012Metric | D1, D3, D4, D5, D6, D7, D8, D9 +5 |
| 1 | D_Schottky | D_SOD-123 | D2 |
| 2 | 10UF 10uF | C_0805_2012Metric | C1, C2 |
| 2 | 1UF 1uF | C_0805_2012Metric | C3, C4 |
| 1 | 100NF C | C_0805_2012Metric | C5 |
| 1 | 2.2K 4K7 | R_0805_2012Metric | R1 |
| 13 | R | R_0805_2012Metric | R2, R9, R11, R12, R13, R15, R16, R17 +5 |
| 1 | 330 | R_0805_2012Metric | R3 |
| 1 | 100K 2.7kOhm | R_0805_2012Metric | R4 |
| 1 | 330 100K | R_0805_2012Metric | R5 |
| 1 | 2.7KOHM 10K | R_0805_2012Metric | R6 |
| 1 | 2K2 | R_0805_2012Metric | R7 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1K2 | R_0805_2012Metric | R8 |
| 1 | 0.4 | R_0805_2012Metric | R10 |
| 1 | 10K | R_0805_2012Metric | R14 |
Lipo stamp proto design files
The KiCad project lives in the jamesmunns/lipo-stamp repository on GitHub; these links point at the commit this page was built from.
Lipo stamp proto: common questions
How big is the Lipo stamp proto PCB?
The Lipo stamp proto measures 45.7 × 45.7 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Lipo stamp proto?
94 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Lipo stamp proto design files?
From the jamesmunns/lipo-stamp repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Lipo stamp proto design in my own project?
The repository has no license, so all rights stay with jamesmunns. Use it as a reference, and ask the author before reusing the design.
