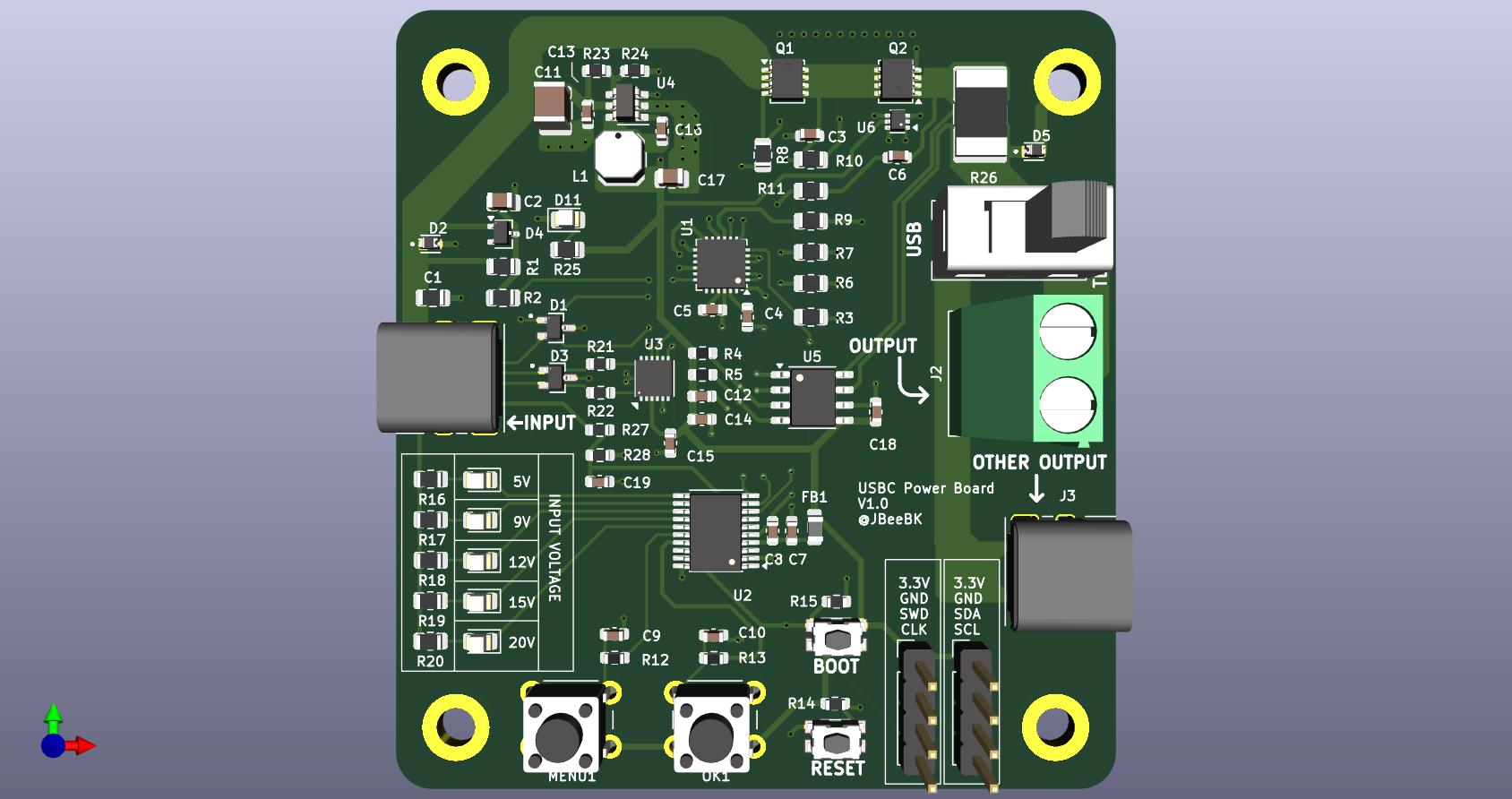

USB C PD PCB layout, top view — open source STM32 board by JBeeBK

About the USB C PD PCB

USB C PD is an open source STM32 PCB design by JBeeBK, published on GitHub. It is a 4-layer board measuring 60 × 64.9 mm, with 78 components from 46 distinct parts.

Its main chip is the STM32G030F6Px, from the STM32 family. Other key parts include the STUSB4500QTR, FT234XD, TPS560430X3FDBVR, INA219BxD and TMP112xxDRL. By type, the board carries 28 resistors, 19 capacitors, 11 diodes, 6 ICs, 5 connectors and 2 transistors.

It belongs with the power & battery and displays & leds designs in this gallery.

From the project

USB PD Power distributor and current monitor with STM32G0 MCU and STUSB4500 PD Controller.

This project is a compact, professional-grade USB-C Power Delivery (PD) debug tool and power meter. Not finished yet tho. It’s designed to showcase modern hardware stuffs (USB-C, PD negotiation, embedded control, current/voltage sensing). TBD when my large order of components come in. ---

- USB-C PD Sink (STUSB4500): negotiates 5 V / 9 V / 12 V / 15 V / 20 V profiles. - Current and Voltage Monitoring: INA219 + voltage divider for real-time display. - I²C OLED Menu System: user-selectable voltage and output control with buttons. - Temperature Monitoring: TMP112 tracks board temperature for…

USB C PD, from the project README
From the project README

Main components on the USB C PD

STUSB4500QTRSTM32G030F6PxFT234XDTPS560430X3FDBVRINA219BxDTMP112xxDRL

USB C PD bill of materials (BOM)

78 components, 46 distinct parts.

QtyPartRefs
1
STUSB4500QTR
U1
1
STM32G030F6Px
U2
1
FT234XD
U3
1
TPS560430X3FDBVR
U4
1
INA219BxD
U5
1
TMP112xxDRL
U6
2
Si7336ADP
Q1, Q2
2
USB_C_Receptacle_USB2.0_16P
J1, J3
1
Screw_Terminal_01x02
J2
2
Conn_01x04
J4, J5
2
SW_Push
BOOT1, RST1
2
SW_Push
MENU1, OK1
1
SW_SPDT
SW1
2
ESDA25W
D1, D3
2
ESDA25P35-1U1M
D2, D5
1
BAT54W
D4
5
LED Red 2v 20mA
D6, D7, D8, D9, D10
1
RED
D11
1
FerriteBead
FB1
1
15uH
Coilcraft
L1
Show 26 more
QtyPartRefs
1
4.7uF
C1
1
1uF
C2
3
1uF
C3, C4, C5
8
100nF
C6, C7, C12, C13, C14, C15, C16, C18
4
10nF
C8, C9, C10, C19
1
10uF
C11
1
22uF
C17
1
470
R1
3
1k
R2, R9, R20
1
10k
R3
2
4.7k
R4, R5
3
100k
R6, R7, R10
1
22k
R8
1
100
R11
2
1k
R12, R13
2
10k
R14, R15
1
150R
R16
1
360R
R17
1
510R
R18
1
680R
R19
2
27R
R21, R22
1
412k
R23
1
200k
R24
1
220R
R25
1
R
R26
2
12k
R27, R28

USB C PD design files

The KiCad project lives in the JBeeBK/USB_C_PD repository on GitHub; these links point at the commit this page was built from.

USB C PD: common questions

What microcontroller does the USB C PD use?

The USB C PD is built around the STM32G030F6Px, from the STM32 family.

How big is the USB C PD PCB?

The USB C PD measures 60 × 64.9 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the USB C PD?

78 components, from 46 distinct parts. The full bill of materials is listed on this page.

Where can I download the USB C PD design files?

From the JBeeBK/USB_C_PD repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the USB C PD design in my own project?

The repository has no license, so all rights stay with JBeeBK. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the USB C PD without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
