MS
About the MS PCB
MS is an open source PCB design by jgraichen, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 6.6 × 13.6 mm, with 9 components from 4 distinct parts.
From the project

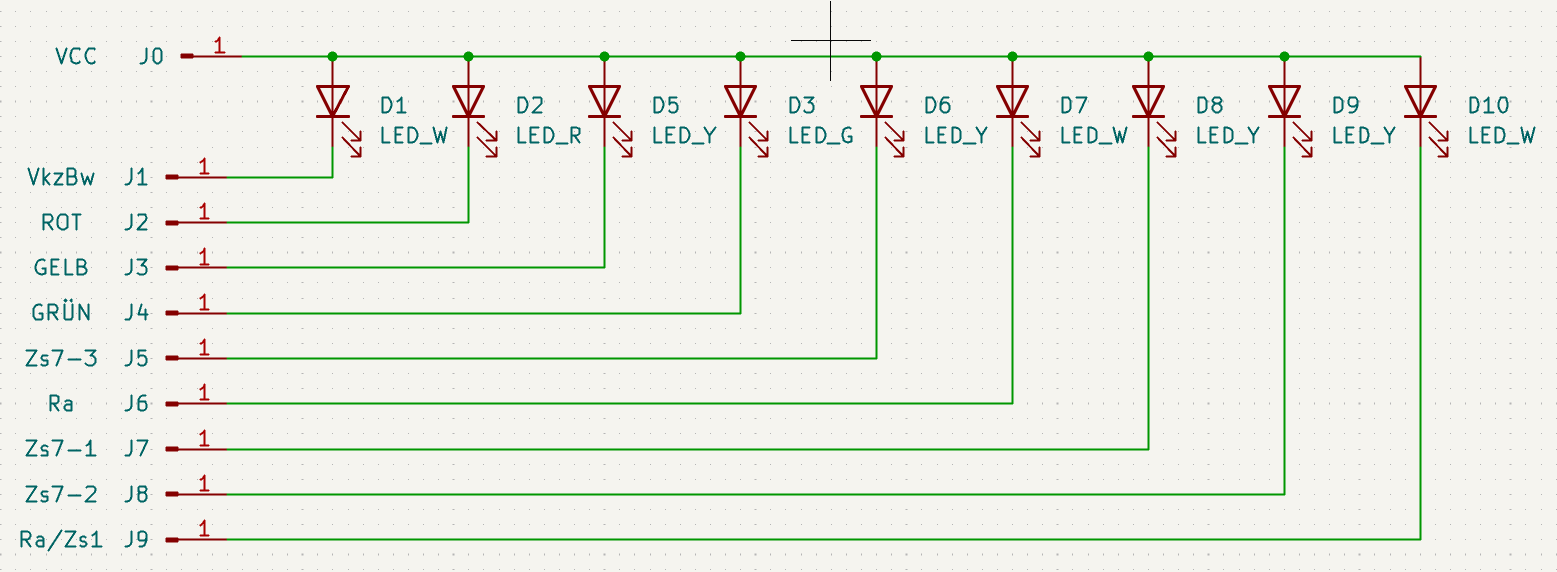

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
MS bill of materials (BOM)
9 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | LED_W | LED_0402_1005Metric | D1, D7, D10 |
| 1 | LED_R | LED_0402_1005Metric | D2 |
| 1 | LED_G | LED_0402_1005Metric | D3 |
| 4 | LED_Y | LED_0402_1005Metric | D5, D6, D8, D9 |
MS design files
The KiCad project lives in the jgraichen/railway-signals repository on GitHub; these links point at the commit this page was built from.
MS: common questions
How big is the MS PCB?
The MS measures 6.6 × 13.6 mm, has 2 copper layers and is 0.8 mm thick.
How many components are on the MS?
9 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the MS design files?
From the jgraichen/railway-signals repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MS design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which jgraichen chose for the repository.
