WS2811 LED Driver 9LS (2 Lichtsperrsignal)

jgraichen·railway-signals·kicad/extra/ws2811-driver-9ls/ws2811-driver-9ls.kicad_pcb

WS2811 LED Driver 9LS (2 Lichtsperrsignal) PCB layout, top view — open source board by jgraichen

About the WS2811 LED Driver 9LS (2 Lichtsperrsignal) PCB

WS2811 LED Driver 9LS (2 Lichtsperrsignal) is an open source PCB design by jgraichen, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 60 × 45 mm, with 8 components from 4 distinct parts.

Other key parts include the WS2811. By type, the board carries 3 ICs, 3 resistors, 1 jumper and 1 capacitor.

It belongs with the displays & leds designs in this gallery.

From the project

A WS2811 LED driver board compatible with MGP signal decoders.

A WS2811 LED driver board compatible with MGP signal decoders.

This LED driver board provides 8 LEDs via two 2x3p 1.27 mm pitch connectors, intended for up to two German light switching signals.

This board can be connected via three methods:

1. RJ45 cabling as used by signal mount drivers and described in the adapter board README. 2. Regular three-pin headers or servo connectors via J2 and J5. 3. Soldered wires via J3 and J6.

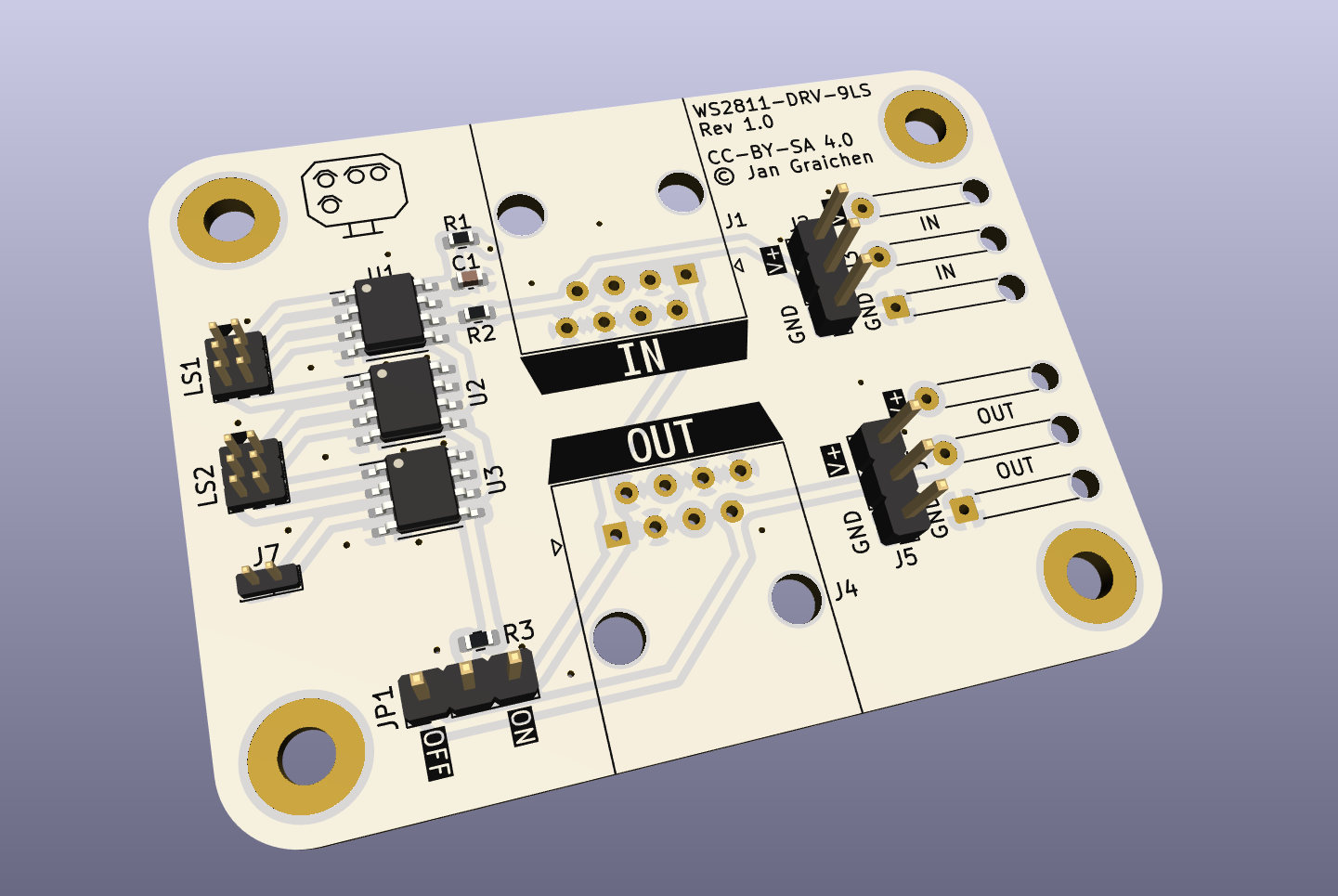

WS2811 LED Driver 9LS (2 Lichtsperrsignal), from the project README
From the project README

Main components on the WS2811 LED Driver 9LS (2 Lichtsperrsignal)

WS2811

WS2811 LED Driver 9LS (2 Lichtsperrsignal) bill of materials (BOM)

8 components, 4 distinct parts.

QtyPartRefs
3
WS2811
U1, U2, U3
1
Jumper_3_Bridged12
JP1
1
104
C1
3
33R
R1, R2, R3

WS2811 LED Driver 9LS (2 Lichtsperrsignal) design files

The KiCad project lives in the jgraichen/railway-signals repository on GitHub; these links point at the commit this page was built from.

WS2811 LED Driver 9LS (2 Lichtsperrsignal): common questions

How big is the WS2811 LED Driver 9LS (2 Lichtsperrsignal) PCB?

The WS2811 LED Driver 9LS (2 Lichtsperrsignal) measures 60 × 45 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WS2811 LED Driver 9LS (2 Lichtsperrsignal)?

8 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the WS2811 LED Driver 9LS (2 Lichtsperrsignal) design files?

From the jgraichen/railway-signals repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the WS2811 LED Driver 9LS (2 Lichtsperrsignal) design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which jgraichen chose for the repository.
