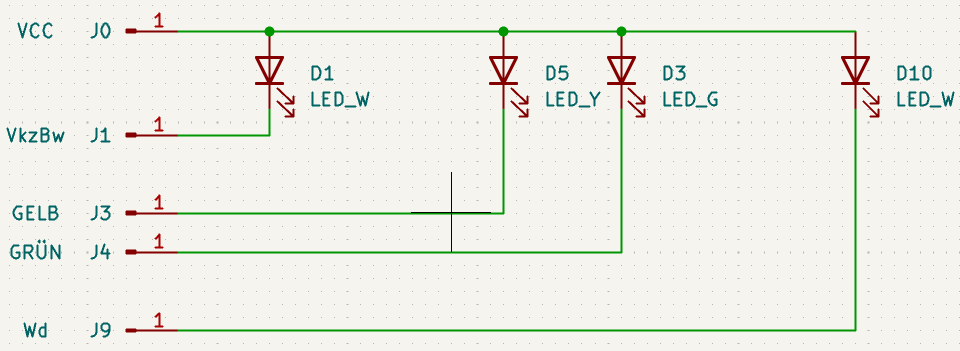

KS-Vorsignal
About the KS-Vorsignal PCB
KS-Vorsignal is an open source PCB design by jgraichen, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 6.6 × 10.8 mm, with 4 components from 3 distinct parts.
From the project
This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
KS-Vorsignal bill of materials (BOM)
4 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | LED_W | LED_0402_1005Metric | D1, D10 |
| 1 | LED_G | LED_0402_1005Metric | D3 |
| 1 | LED_Y | LED_0402_1005Metric | D5 |
KS-Vorsignal design files
The KiCad project lives in the jgraichen/railway-signals repository on GitHub; these links point at the commit this page was built from.
KS-Vorsignal: common questions
How big is the KS-Vorsignal PCB?
The KS-Vorsignal measures 6.6 × 10.8 mm, has 2 copper layers and is 0.8 mm thick.
How many components are on the KS-Vorsignal?
4 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the KS-Vorsignal design files?
From the jgraichen/railway-signals repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the KS-Vorsignal design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which jgraichen chose for the repository.
