WS2811 LED Driver 12 (1 Signal)

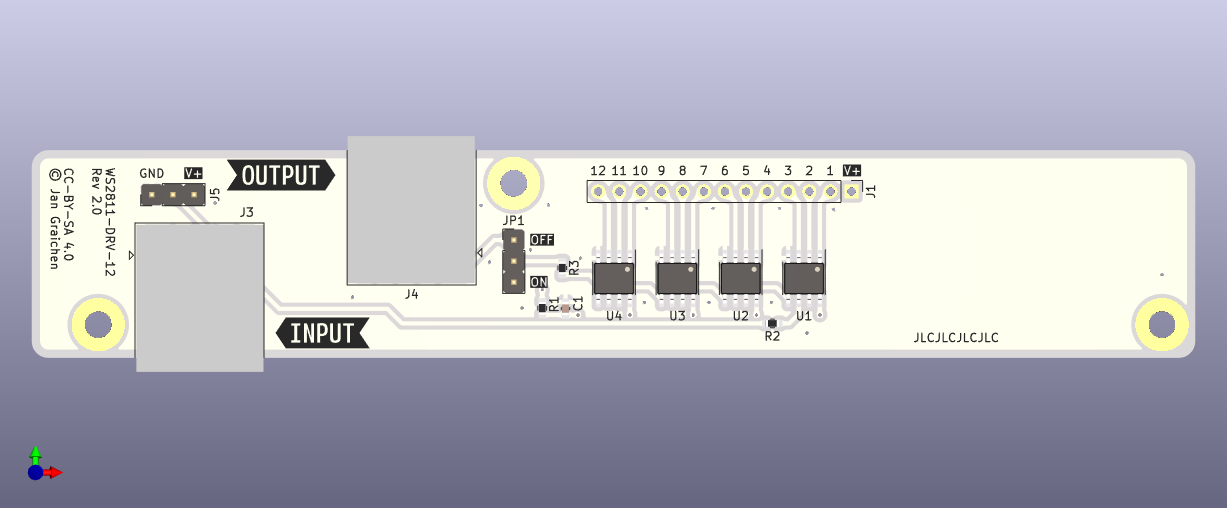

About the WS2811 LED Driver 12 (1 Signal) PCB
WS2811 LED Driver 12 (1 Signal) is an open source PCB design by jgraichen, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 140 × 25 mm, with 12 components from 7 distinct parts.
Other key parts include the WS2811. By type, the board carries 4 ICs, 3 connectors, 3 resistors, 1 jumper and 1 capacitor.
It belongs with the displays & leds designs in this gallery.
From the project
A WS2811 LED driver board compatible with MGP signal decoders and the Wattenscheider signal mount.
A WS2811 LED driver board compatible with MGP signal decoders and the Wattenscheider signal mount.
This LED driver board provides 12 LEDs, intended for up to one fully equipped German KS signal.
1. Connect the RJ45 cable from the adapter board to the RJ45 plug labeled "INPUT". 2. Connect the RJ45 cable to the next signal from the "OUTPUT" plug. 3. If you do not connect an outgoing RJ45 cable, you can set the jumper JP1 to "ON" to route the data signal back to the adapter board. See more at the adapter board README.
Main components on the WS2811 LED Driver 12 (1 Signal)
WS2811 LED Driver 12 (1 Signal) bill of materials (BOM)
12 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | WS2811 | SOIC-8_3.9x4.9mm_P1.27mm | U1, U2, U3, U4 |
| 1 | RJ45 IN | RJ45_Amphenol_54602-x08_Horizontal | J3 |
| 1 | RJ45 OUT | RJ45_Amphenol_54602-x08_Horizontal | J4 |
| 1 | Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | J5 |
| 1 | Jumper_3_Bridged12 | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 1 | 104 | C_0603_1608Metric | C1 |
| 3 | 33R | R_0603_1608Metric | R1, R2, R3 |
WS2811 LED Driver 12 (1 Signal) design files
The KiCad project lives in the jgraichen/railway-signals repository on GitHub; these links point at the commit this page was built from.
WS2811 LED Driver 12 (1 Signal): common questions
How big is the WS2811 LED Driver 12 (1 Signal) PCB?
The WS2811 LED Driver 12 (1 Signal) measures 140 × 25 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the WS2811 LED Driver 12 (1 Signal)?
12 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the WS2811 LED Driver 12 (1 Signal) design files?
From the jgraichen/railway-signals repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the WS2811 LED Driver 12 (1 Signal) design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which jgraichen chose for the repository.
