Automatic hand sanitizer
About the Automatic hand sanitizer PCB
Automatic hand sanitizer is an open source PCB design by JKCadilo14-CpE, published on GitHub under the MIT license. It is a 2-layer board measuring 86.4 × 35.6 mm, with 5 components from 5 distinct parts.
By type, the board carries 3 connectors, 1 transistor and 1 resistor.
From the project
Collection of electronic circuits I designed, tested, and documented using KiCad
A beginner-friendly automatic sanitizer pump controller using an IR sensor module input, TIP32C transistor switching stage, and DC pump connection.

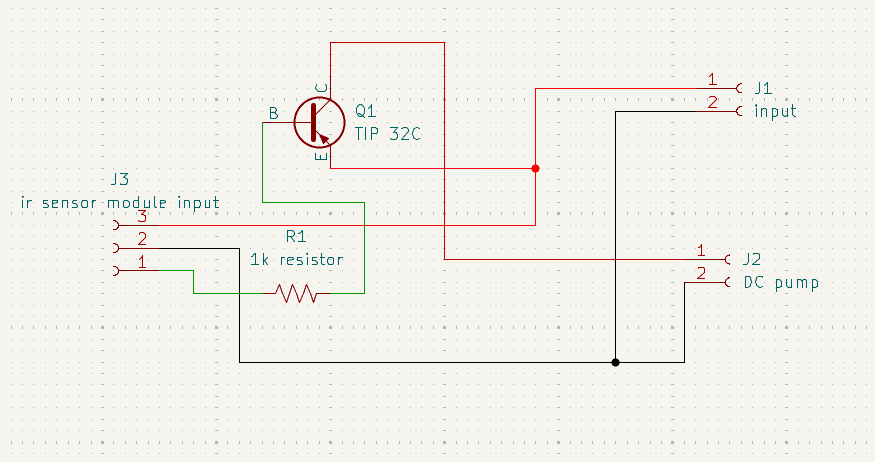

This project demonstrates a simple sensor-controlled pump switch. The schematic provides an IR sensor module input at J3, a TIP32C transistor switching stage, and a DC pump connection at J2.
When the sensor module input changes state, the transistor stage responds and controls the pump connection. Verified prototype behavior is documented separately under Verified Prototype Observations.
Automatic hand sanitizer bill of materials (BOM)
5 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PNP | TO-220-3_Vertical | Q1 |
| 1 | input | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | J1 |
| 1 | DC pump | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | J2 |
| 1 | ir sensor module input | TerminalBlock_Phoenix_MKDS-1,5-3-5.08_1x03_P5.08mm_Horizontal | J3 |
| 1 | 1k resistor | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
Automatic hand sanitizer design files
The KiCad project lives in the JKCadilo14-CpE/DIY-Circuits repository on GitHub; these links point at the commit this page was built from.
Automatic hand sanitizer: common questions
How big is the Automatic hand sanitizer PCB?
The Automatic hand sanitizer measures 86.4 × 35.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Automatic hand sanitizer?
5 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Automatic hand sanitizer design files?
From the JKCadilo14-CpE/DIY-Circuits repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Automatic hand sanitizer design in my own project?
Yes, under the terms of its MIT license, which JKCadilo14-CpE chose for the repository.
