Hidden Wire Detector
About the Hidden Wire Detector PCB
Hidden Wire Detector is an open source PCB design by JKCadilo14-CpE, published on GitHub under the MIT license. It is a 2-layer board measuring 71.1 × 35.6 mm, with 7 components from 5 distinct parts.
By type, the board carries 3 transistors, 2 connectors, 1 diode and 1 resistor.
From the project
Collection of electronic circuits I designed, tested, and documented using KiCad
A beginner-friendly educational non-contact wire detector project using a copper sensing connection, three C945 transistor stages, and an LED indicator.

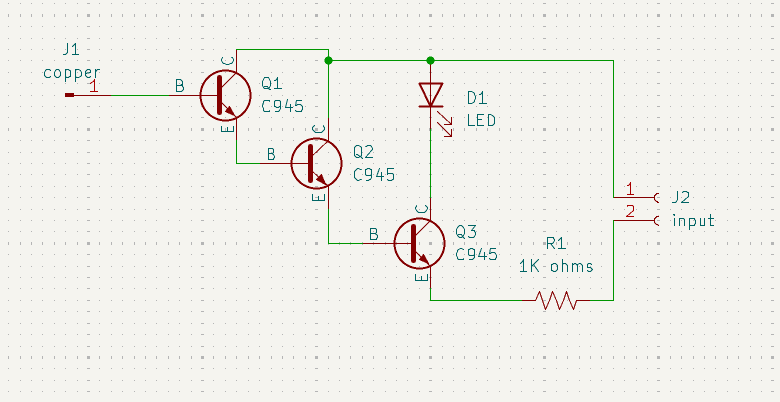

This project demonstrates a simple non-contact hidden wire detector concept. The KiCad schematic shows a sensing connection labeled copper, three C945 transistor stages, and an LED indicator.
The circuit is intended for electronics learning and supervised demonstration. It must not be connected directly to mains voltage, must not be treated as certified safety equipment, and must not be used as the only method to decide whether wiring is…
Hidden Wire Detector bill of materials (BOM)
7 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | C945 | TO-220-3_Vertical | Q1, Q2, Q3 |
| 1 | copper | PinHeader_1x01_P2.54mm_Horizontal | J1 |
| 1 | input | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | J2 |
| 1 | LED | LED_D5.0mm | D1 |
| 1 | 1K ohms | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
Hidden Wire Detector design files
The KiCad project lives in the JKCadilo14-CpE/DIY-Circuits repository on GitHub; these links point at the commit this page was built from.
Hidden Wire Detector: common questions
How big is the Hidden Wire Detector PCB?
The Hidden Wire Detector measures 71.1 × 35.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Hidden Wire Detector?
7 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the Hidden Wire Detector design files?
From the JKCadilo14-CpE/DIY-Circuits repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Hidden Wire Detector design in my own project?
Yes, under the terms of its MIT license, which JKCadilo14-CpE chose for the repository.
