Fire alarm system using photodiode
About the Fire alarm system using photodiode PCB
Fire alarm system using photodiode is an open source PCB design by JKCadilo14-CpE, published on GitHub under the MIT license. It is a 2-layer board measuring 50.8 × 50.8 mm, with 6 components from 6 distinct parts.
By type, the board carries 2 diodes, 1 transistor, 1 connector, 1 buzzer and 1 resistor.
It belongs with the sensors designs in this gallery.
From the project
Collection of electronic circuits I designed, tested, and documented using KiCad
A beginner-friendly photodiode alarm project that demonstrates how light from a flame can activate a transistor-driven LED and buzzer output.

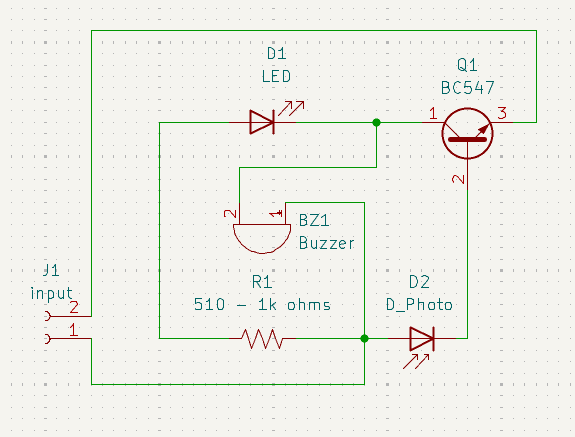

This project demonstrates an educational optical fire-alarm concept using a photodiode, BC547 transistor, LED, and buzzer. Light from a flame reaches the photodiode, the photodiode changes the sensing condition, the transistor stage responds, and the LED/buzzer output path activates.
Fire alarm system using photodiode bill of materials (BOM)
6 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BC547 | TO-92_Inline | Q1 |
| 1 | input | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | J1 |
| 1 | Buzzer | Buzzer_15x7.5RM7.6 | BZ1 |
| 1 | LED | LED_D5.0mm | D1 |
| 1 | D_Photo | LED_D5.0mm_IRBlack | D2 |
| 1 | 510 - 1k ohms | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
Fire alarm system using photodiode design files
The KiCad project lives in the JKCadilo14-CpE/DIY-Circuits repository on GitHub; these links point at the commit this page was built from.
Fire alarm system using photodiode: common questions
How big is the Fire alarm system using photodiode PCB?
The Fire alarm system using photodiode measures 50.8 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Fire alarm system using photodiode?
6 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Fire alarm system using photodiode design files?
From the JKCadilo14-CpE/DIY-Circuits repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Fire alarm system using photodiode design in my own project?
Yes, under the terms of its MIT license, which JKCadilo14-CpE chose for the repository.
