Touch sensor circuit
JKCadilo14-CpE·DIY-Circuits·Transistor Based/touch sensor circuit/touch sensor circuit.kicad_pcb
About the Touch sensor circuit PCB
Touch sensor circuit is an open source PCB design by JKCadilo14-CpE, published on GitHub under the MIT license. It is a 2-layer board measuring 50.8 × 50.8 mm, with 4 components from 4 distinct parts.
Other key parts include the touch sensor. By type, the board carries 1 IC, 1 transistor, 1 connector and 1 LED.
It belongs with the sensors designs in this gallery.
From the project
Collection of electronic circuits I designed, tested, and documented using KiCad
A beginner-friendly touch-controlled switching project using a touch sensor input, a BC547 transistor stage, and a low-power output indicator.

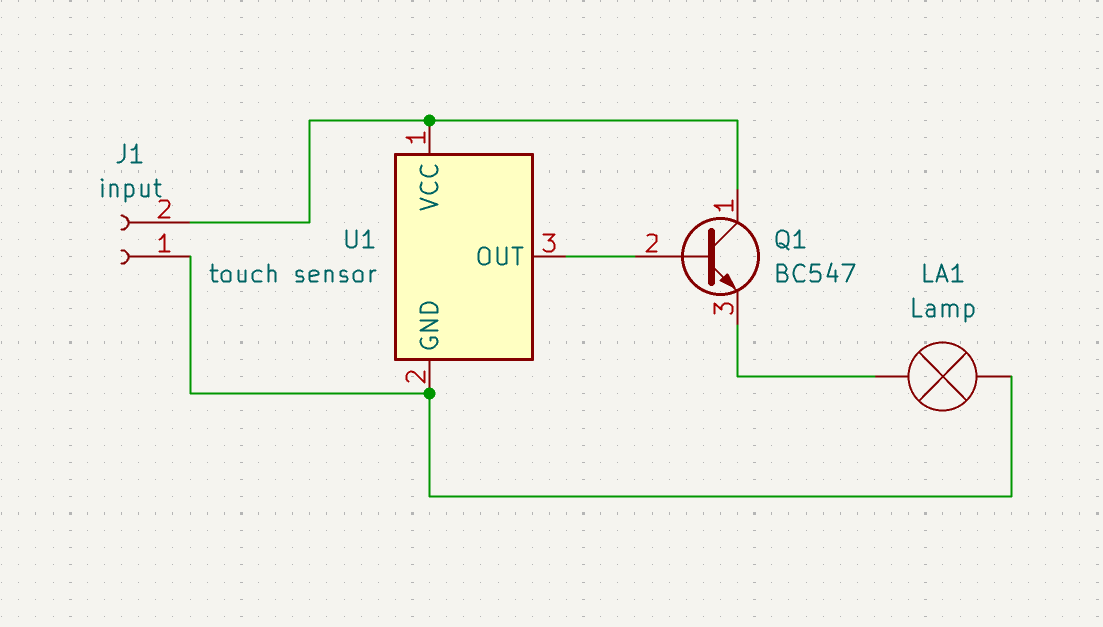

This project demonstrates a touch-controlled output circuit. The KiCad schematic labels U1 as touch sensor, Q1 as BC547, J1 as input, and LA1 as Lamp. In the verified prototype, the touch sensor module was a TTP223 capacitive touch sensor module, and the output indicator was a miniature incandescent flashlight bulb.

Main components on the Touch sensor circuit
Touch sensor circuit bill of materials (BOM)
4 components, 4 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | touch sensor | TO-92_Inline | U1 |
| 1 | BC547 | TO-92_Inline | Q1 |
| 1 | Conn_01x02_Socket | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | J1 |
| 1 | Lamp | LED_D3.0mm | LA1 |
Touch sensor circuit design files
The KiCad project lives in the JKCadilo14-CpE/DIY-Circuits repository on GitHub; these links point at the commit this page was built from.
Touch sensor circuit: common questions
How big is the Touch sensor circuit PCB?
The Touch sensor circuit measures 50.8 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Touch sensor circuit?
4 components, from 4 distinct parts. The full bill of materials is listed on this page.
Where can I download the Touch sensor circuit design files?
From the JKCadilo14-CpE/DIY-Circuits repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Touch sensor circuit design in my own project?
Yes, under the terms of its MIT license, which JKCadilo14-CpE chose for the repository.
