About the CPU Board
CPU Board is an open source STM32 PCB design by jsjolund, published on GitHub. It is a 2-layer board measuring 100 × 70 mm, with 112 components from 52 distinct parts.
Its main chip is the STM32F411RETx, from the STM32 family. Other key parts include the NCP1117DT12G, FT232RL, HTS221, INA128 and SPBTLE-RF. By type, the board carries 39 capacitors, 22 connectors, 20 resistors, 12 ICs, 7 jumpers and 3 transistors.
It belongs with the sensors designs in this gallery.
From the project

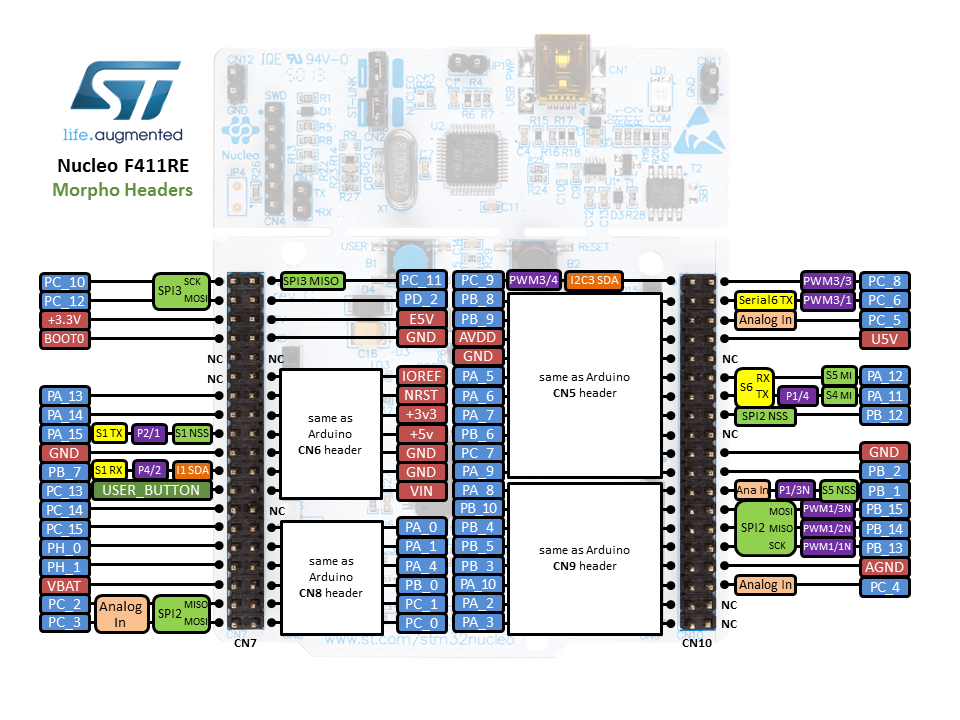

Sensor package for the Laser Pico sail boat
BlueNRG (Old Bluetooth module) Datasheet

Main components on the CPU Board
CPU Board bill of materials (BOM)
112 components, 52 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F411RETx | LQFP-64_10x10mm_Pitch0.5mm | U1 |
| 1 | NCP1117DT12G | SOT-223 | U2 |
| 1 | FT232RL | SSOP-28_5.3x10.2mm_Pitch0.65mm | U3 |
| 1 | HTS221 | HLGA-6L_2x2x.9mm | U4 |
| 2 | INA128 | SO-8_5.3x6.2mm_Pitch1.27mm | U5, U12 |
| 1 | SPBTLE-RF | ST_SPBTLE | U6 |
| 1 | A2235-H | A2235-H_Handsolder | U7 |
| 1 | LSM303AGR | LGA-12_2x2mm_Pitch0.5mm_Handsolder | U8 |
| 1 | LSM6DSL | LGA-14 | U9 |
| 1 | MCDTS2-4N | SW_SPST_PTS645 | U10 |
| 1 | LPS22HB | HLGA-10L | U11 |
| 1 | Q_PMOS_GSD | SOT-23_Handsoldering | Q1 |
| 2 | Q_PNP_BCE | SOT-23_Handsoldering | Q2, Q3 |
| 1 | 8MHz | Crystal_SMD_HC49-SD | Y1 |
| 1 | CONN_01X02 | AK300-2 | P1 |
| 1 | USB_B | USB_Micro-B | P2 |
| 2 | CONN_01X04 | Connector_JST_S4B-ZR_1x4 | P3, P4 |
| 2 | CONN_01X06 | Pin_Header_Straight_1x06_Pitch2.54mm | P5, P11 |
| 1 | CONN_02X12 | DIP-24_W15.24mm_Socket | P6 |
| 4 | CONN_01X02 | Pin_Header_Straight_1x02_Pitch2.54mm | P7, P8, P9, P10 |
Show 32 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | CONN_01X03 | Pin_Header_Straight_1x03_Pitch2.54mm | P12, P14, P18 |
| 4 | CONN_01X01 | Pin_Header_Straight_1x01_Pitch2.54mm | P13, P15, P16, P17 |
| 1 | CONN_01X06 | Socket_Strip_Straight_1x06 | P21 |
| 1 | CONN_01X06 | JST_PH_S6B-PH-K_06x2.50mm_Angled | P24 |
| 2 | CONN_01X04 | Pin_Header_Straight_1x04_Pitch2.54mm | P25, P26 |
| 1 | LSM9DS1 | LGA-24L_3x3.5mm_Pitch0.43mm_Handsolder | IM1 |
| 5 | Jumper_NC_Small | Pin_Header_Straight_1x02_Pitch2.54mm | JP1, JP2, JP5, JP6, JP7 |
| 2 | Jumper_NC_Dual | Pin_Header_Straight_1x03_Pitch2.54mm | JP3, JP4 |
| 2 | 360 | Potentiometer_Trimmer_Bourns_PV36W | RV1, RV2 |
| 1 | D_Zener | D_SOD-323 | D1 |
| 1 | D_Photo | PhotoDiode_SFH205 | D2 |
| 1 | L_Core_Ferrite_500mA | R_1206_HandSoldering | L1 |
| 2 | 330uH | INDUCTOR_V | L2, L3 |
| 1 | 1u | C_0805_HandSoldering | C1 |
| 2 | 18p | C_0805_HandSoldering | C2, C3 |
| 4 | 4.7u | CP_Elec_3x5.3 | C4, C5, C10, C30 |
| 20 | 100n | C_0805_HandSoldering | C6, C8, C9, C11, C12, C13, C14, C15 +12 |
| 3 | 10u | CP_Elec_5x5.3 | C7, C16, C19 |
| 1 | 2.2u | C_0805_HandSoldering | C21 |
| 1 | 1uF | C_0805_HandSoldering | C22 |
| 1 | 220nF | C_0805_HandSoldering | C25 |
| 2 | 10uF | CP_Elec_5x5.3 | C26, C35 |
| 3 | 100nF | C_0805_HandSoldering | C28, C29, C31 |
| 1 | 10n | C_0805_HandSoldering | C38 |
| 11 | 10k | R_0805_HandSoldering | R1, R2, R6, R7, R8, R11, R12, R16 +3 |
| 1 | 2.7k | R_0805_HandSoldering | R3 |
| 2 | 6.8k | R_0805_HandSoldering | R4, R5 |
| 1 | 47K | R_0805_HandSoldering | R9 |
| 2 | 5k | R_0805_HandSoldering | R10, R13 |
| 1 | 220 | R_0805_HandSoldering | R14 |
| 1 | 1k | R_0805_HandSoldering | R15 |
| 1 | 0R | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R21 |
CPU Board design files
The KiCad project lives in the jsjolund/sailoraid repository on GitHub; these links point at the commit this page was built from.
CPU Board: common questions
What microcontroller does the CPU Board use?
The CPU Board is built around the STM32F411RETx, from the STM32 family.
How big is the CPU Board?
The CPU Board measures 100 × 70 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the CPU Board?
112 components, from 52 distinct parts. The full bill of materials is listed on this page.
Where can I download the CPU Board design files?
From the jsjolund/sailoraid repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the CPU Board design in my own project?
The repository has no license, so all rights stay with jsjolund. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the CPU Board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
