Trans PCB layout, top view — open source ESP32 board by Karasik777

About the Trans PCB

Trans is an open source ESP32 PCB design by Karasik777, published on GitHub under the MIT license. It is a 2-layer board measuring 30 × 60 mm, with 25 components from 19 distinct parts.

Its main chip is the ESP32-C3-WROOM-02, from the ESP32 family. Other key parts include the AP2112K-3.3 and USBLC6-2SC6. By type, the board carries 7 capacitors, 6 resistors, 3 ICs, 3 connectors, 3 diodes and 2 switches.

It belongs with the iot & wireless, dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

Transcribe words or text into a pcb in KIcad

The board TransPCB was built while making. 2 layers, 30 x 60 mm, JLCPCB standard.

- U1 ESP32-C3-WROOM-02, antenna at the top board edge with a copper keepout - J3 USB-C, right-angle through-hole (GCT USB4085), 5.1k CC pulldowns - U3 USBLC6-2SC6 ESD clamp on D+/D- and VBUS - U2 AP2112K-3.3 LDO; CP1 100uF radial bulk, C4/C5 in, C6/C7 out - Native USB Serial/JTAG on IO18/IO19 - no UART bridge chip - RESET and BOOT buttons, power LED plus two user LEDs, six test points - J1/J2 1x10 headers, pinout matched to the module's pin geography

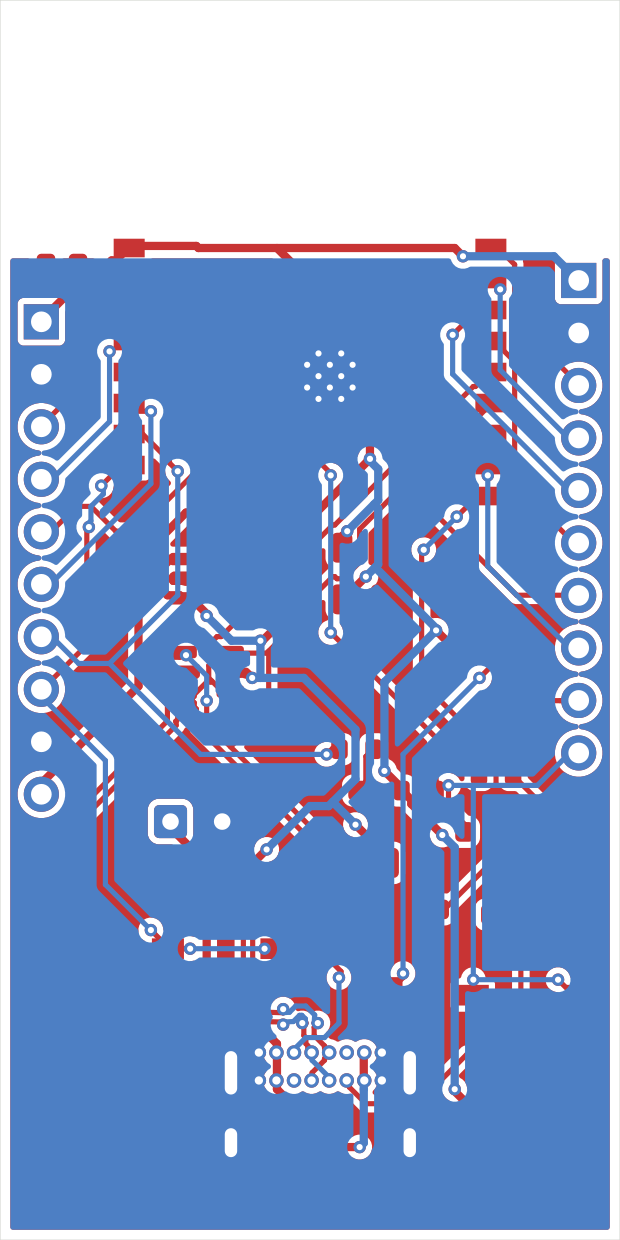

Trans, from the project README
From the project README

Main components on the Trans

ESP32-C3-WROOM-02AP2112K-3.3USBLC6-2SC6

Trans bill of materials (BOM)

25 components, 19 distinct parts.

QtyPartRefs
1
ESP32-C3-WROOM-02
U1
1
AP2112K-3.3
U2
1
USBLC6-2SC6
U3
1
GPIO-A
J1
1
GPIO-B
J2
1
USB-C
J3
1
100uF/16V
CP1
1
RESET
SW1
1
BOOT
SW2
1
PWR
D1
1
IO8
D2
1
IO10
D3
3
100nF
C1, C5, C7
2
10uF
C2, C4
1
1uF
C3
1
22uF
C6
1
10k
R1
3
1k
R2, R3, R4
2
5.1k
R7, R8

Trans design files

The KiCad project lives in the Karasik777/TransPCB repository on GitHub; these links point at the commit this page was built from.

Trans: common questions

What microcontroller does the Trans use?

The Trans is built around the ESP32-C3-WROOM-02, from the ESP32 family.

How big is the Trans PCB?

The Trans measures 30 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Trans?

25 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the Trans design files?

From the Karasik777/TransPCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Trans design in my own project?

Yes, under the terms of its MIT license, which Karasik777 chose for the repository.

Can I test firmware for the Trans without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
