About the MyoCell PCB

MyoCell is an open source ESP32 PCB design by KenKadilar, published on GitHub under the MIT license. It is a board, with 25 components from 17 distinct parts.

Its main chip is the ESP32 DOIT DEVKIT V1, from the ESP32 family. Other key parts include the CC/CV buck, INA219, 7805, TCRT5000 and DRV8833. By type, the board carries 7 resistors, 6 ICs, 4 diodes, 4 capacitors, 1 module and 1 transistor.

It belongs with the robotics & motion designs in this gallery.

From the project

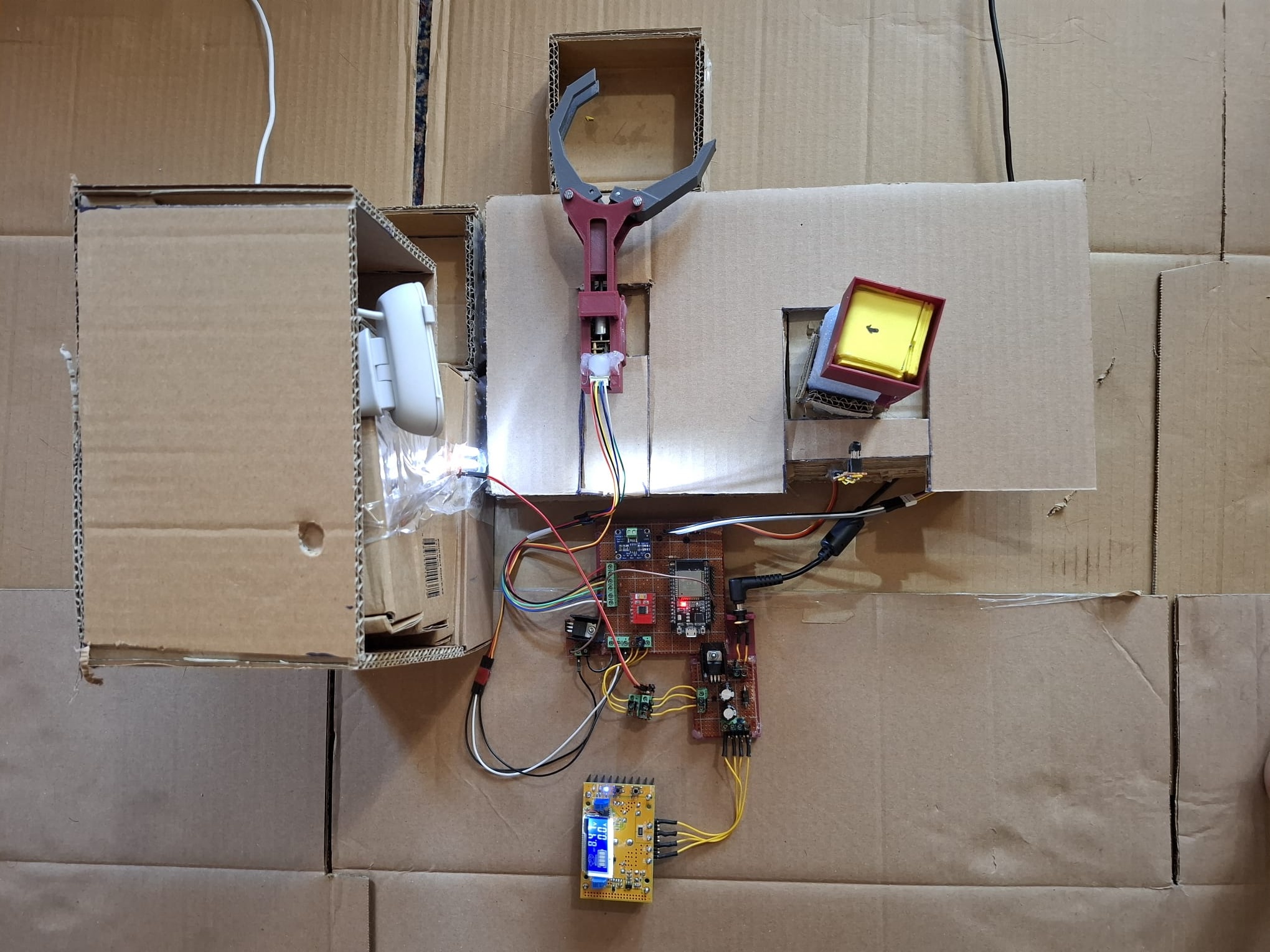

An autonomous sorting cell built around a myoelectric gripper. An object arrives in a magazine, an overhead camera classifies it by colour, the gripper grasps it at a grip force taught by a muscle flex, a rotation arm carries it to the matching bin and releases, and the cell loop

An autonomous sorting cell built around a myoelectric gripper. An object arrives in a magazine, an overhead camera classifies it by colour, the gripper grasps it at a grip force taught by a muscle flex, a rotation arm carries it to the matching bin and releases, and the cell loops until the magazine is empty. A soft PLC runs the sequence and a latching E-stop; the grip force is held by a closed-loop controller; a design-of-experiments run characterizes force against object damage.

Main components on the MyoCell

CC/CV buckINA219ESP32 DOIT DEVKIT V17805TCRT5000DRV8833

MyoCell bill of materials (BOM)

25 components, 17 distinct parts.

QtyPartRefs
1
CC/CV buck
U1
1
INA219
U2
1
ESP32 DOIT DEVKIT V1
U3
1
7805
U4
1
TCRT5000
U5
1
DRV8833
U6
1
MG996R_Servo
M1
1
IRLZ35N
Q1
1
Grove EMG
J3
1
Encoder DC Motor
SW2
2
1N5822
D1, D2
2
LED
D3, D4
2
1000uF
C1, C2
2
47nF
C3, C4
2
220R
R1, R6
4
10K
R2, R3, R4, R5
1
100R
R7

MyoCell design files

The KiCad project lives in the KenKadilar/MyoCell repository on GitHub; these links point at the commit this page was built from.

MyoCell: common questions

What microcontroller does the MyoCell use?

The MyoCell is built around the ESP32 DOIT DEVKIT V1, from the ESP32 family.

How many components are on the MyoCell?

25 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the MyoCell design files?

From the KenKadilar/MyoCell repository on GitHub, which has the schematic and a netlist; the links under Design files point to each one.

Can I use the MyoCell design in my own project?

Yes, under the terms of its MIT license, which KenKadilar chose for the repository.

Can I test firmware for the MyoCell without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
