NerdYcontroller PCB layout, top view — open source RP2040/RP2350 board by KidsLabDe

About the NerdYcontroller PCB

NerdYcontroller is an open source RP2040/RP2350 PCB design by KidsLabDe, published on GitHub. It is a 4-layer board measuring 69.8 × 35.2 mm, with 109 components from 33 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS, AMS1117-3.3, LSM6DS3TR-C and LMA3722T421-OA5. By type, the board carries 48 capacitors, 29 diodes, 17 resistors, 6 connectors, 5 ICs and 1 transistor.

From the project

Lamp-PCB for kidslab.

Diese benutzerfreundliche Platine ist speziell darauf ausgelegt, einen Raspberry Pi Pico aufzunehmen, und bietet eine interaktive Plattform, um die Grundlagen der Programmierung und Elektronik spielerisch zu erlernen.

- Vielseitiger Raspberry Pi Pico-Sockel: Im Herzen der Platine befindet sich ein dedizierter Sockel, der perfekt für den Raspberry Pi Pico geeignet ist. Dies ermöglicht eine einfache Integration und eine robuste Verbindung.

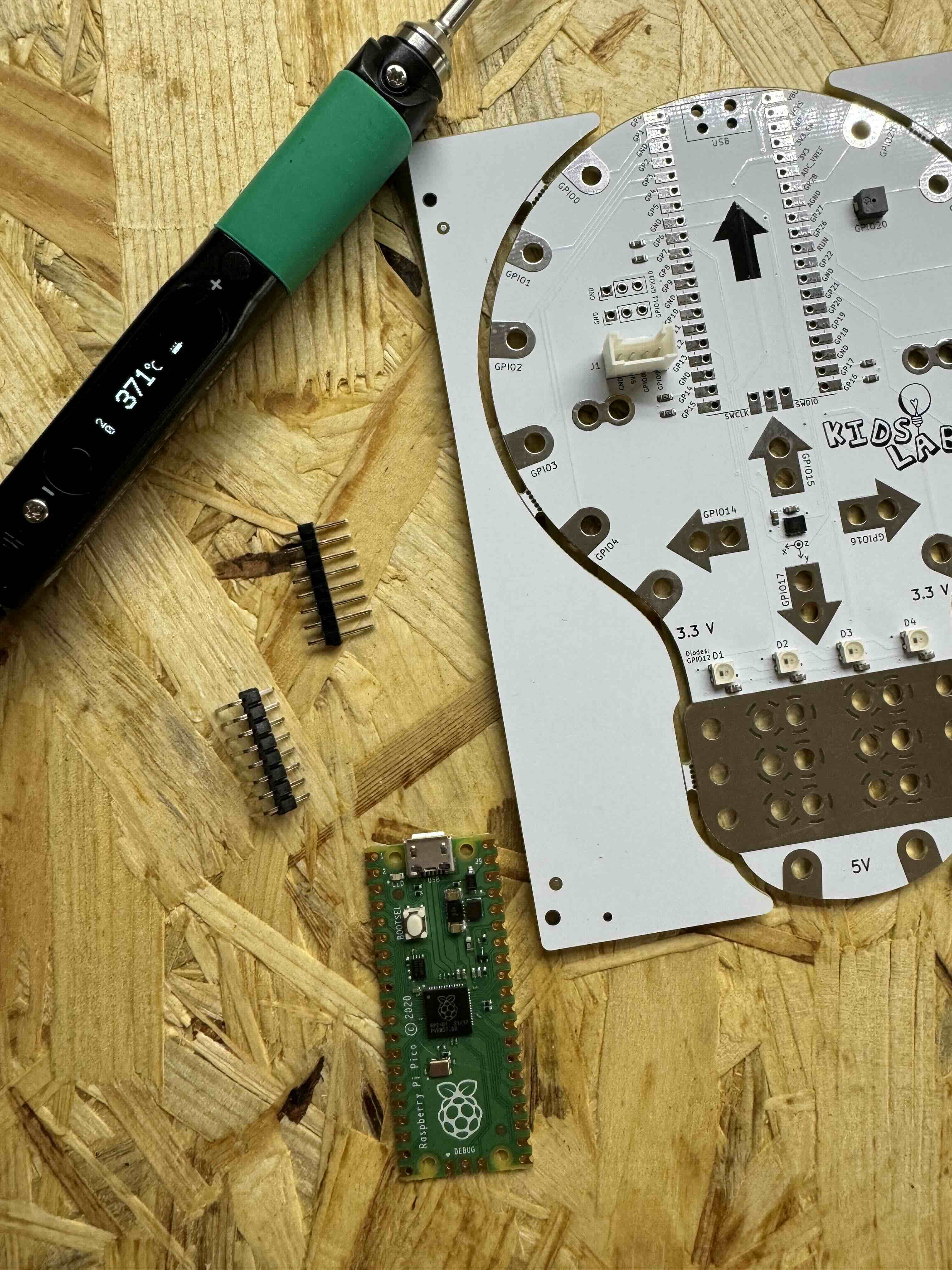

NerdYcontroller, from the project README
From the project README

Main components on the NerdYcontroller

RP2040W25Q128JVSAMS1117-3.3LSM6DS3TR-CLMA3722T421-OA5

NerdYcontroller bill of materials (BOM)

109 components, 33 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U101
1
W25Q128JVS
U102
1
AMS1117-3.3
U201
1
LSM6DS3TR-C
U301
1
LMA3722T421-OA5
U302
1
DDTC113ZCA
Q301
1
CRYSTAL_GND24
Crystal_GND24
Y101
1
S2B-PH-SM4-TB
J201
2
CONN_02X03_ODD_EVEN
Conn_02x03_Odd_Even
J301, J302
1
ZX-HY2.0-4PLT
J303
1
HLE-115-02-F-DV
J304
1
USB_C_PLUG_USB2.0
USB_C_Plug_USB2.0
P201
1
BUZZER-FUET-5020
Buzzer-FUET-5020
BZ301
1
TS-1187A-B-A-B
S101
2
B5817W
D201, D203
1
PRTR5V0U2F
D202
1
KT-0603R
D301
25
WS2812B-2020
D401, D402, D403, D404, D405, D406, D407, D408 +17
4
100NF
100nF
C101, C113, C114, C304
2
22PF
22pF
C102, C103
Show 13 more
QtyPartRefs
34
100NF
100nF
C104, C105, C106, C107, C108, C109, C110, C301 +26
1
10UF
10uF
C111
4
1UF
1uF
C112, C115, C303, C305
2
10UF
10uF
C201, C202
1
1NF
1nF
C203
4
1k
R101, R102, R105, R307
2
27R
R103, R104
2
5K1
5k1
R201, R202
1
100
R203
2
10K
10k
R301, R302
4
1M
R303, R304, R305, R306
1
33K
33k
R308
1
330R
R309

NerdYcontroller design files

The KiCad project lives in the KidsLabDe/GamePadPico repository on GitHub; these links point at the commit this page was built from.

NerdYcontroller: common questions

What microcontroller does the NerdYcontroller use?

The NerdYcontroller is built around the RP2040, from the RP2040/RP2350 family.

How big is the NerdYcontroller PCB?

The NerdYcontroller measures 69.8 × 35.2 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the NerdYcontroller?

109 components, from 33 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the NerdYcontroller design files?

From the KidsLabDe/GamePadPico repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the NerdYcontroller design in my own project?

The repository has no license, so all rights stay with KidsLabDe. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the NerdYcontroller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
